20’ x 20’ Livestock Corral Shelter, Powder Coated Structure, 12’ Dome Roof, 17 oz Military Green PVC Fabric Covering, 6-Bar Corral Panels, 5’ Front Swing Gate, TMG-ST2020L
FREE
shipping to most locations in
USA
Learn More
Features
Features
- Approximately 400 sq-ft of covered space for the shade, cover and protection of your animals that allow plenty of room for them to move around
- Built out of galvanized, powder-coated steel tubing that stands up to the elements and is resistant to rust, wear and corrosion
- Use for the maintenance of your herd, introduction of new animals, administering medicine, storing materials/equipment and more
- Commercial grade, 17 oz, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: Military Green
- 5’ swing gate in the front give livestock and herdsman plenty of space to easily move in and out of the structure while keeping other animals enclosed
- 12’ high single truss dome roof and heavy-duty six-bar corral sidewalls are made of 15 GA galvanized steel for a strong, reliable structure
- Simple slip-fit tube framing connection design with bolt secured braces make this shed sturdy, reliable and easy to assemble
- Custom lengths available for 53’ containers or other dimensions upon request.
Specifications
Specifications

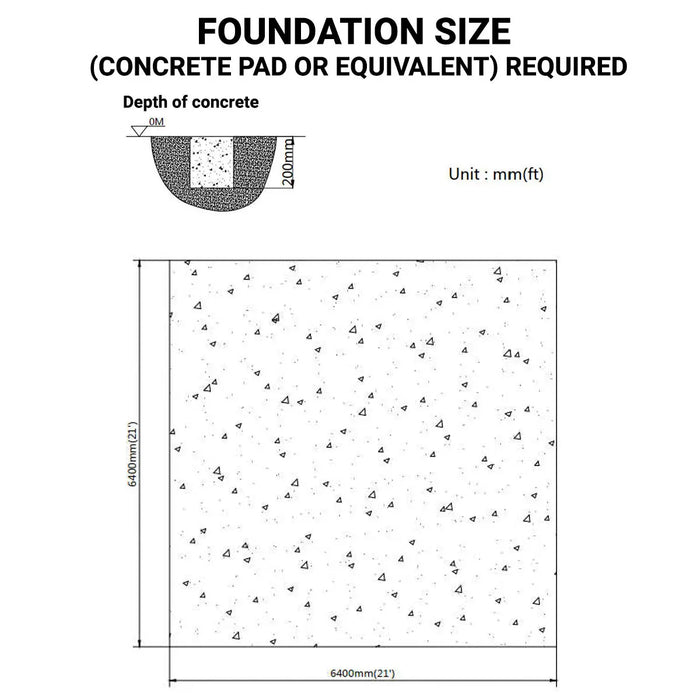

- Foundation size required: 6400mm(21')(W) x 6400mm(21')(L)
- Truss spacing: 79”
- Truss quantity: 4 groups
- Peak ceiling height: 12’
- Side-wall height: 7’
- Corral panel height: 6-½’
- Truss tubes: ⌀2.3” – 15 GA (approx.)
- Purlin tubes: ⌀1-3/4” – 17 GA (approx.)
- Purlins on rafter: 15 of 5 rows
- Front swing gate: 5’
- Cover material: 17 oz PVC fabric, military green
- Slip-fit frame connection & bolt secured braces

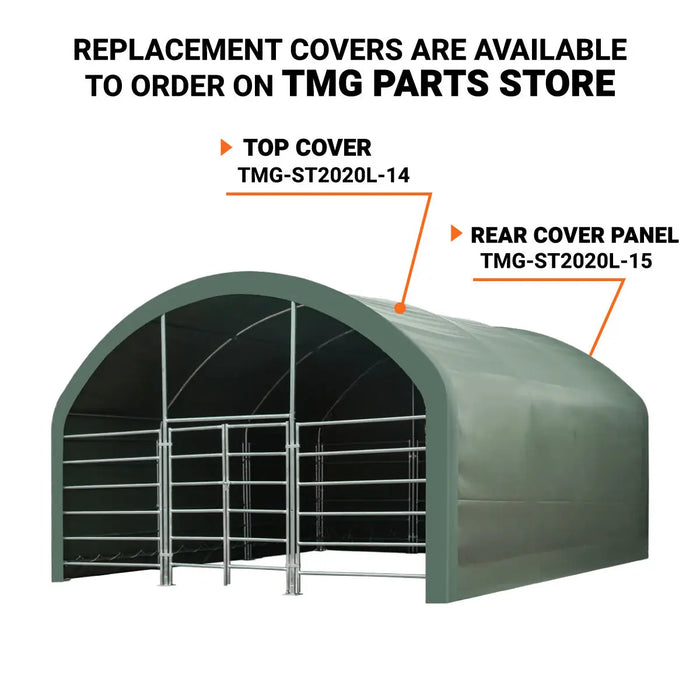

- Replacement covers available for order here TMG PARTS STORE
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

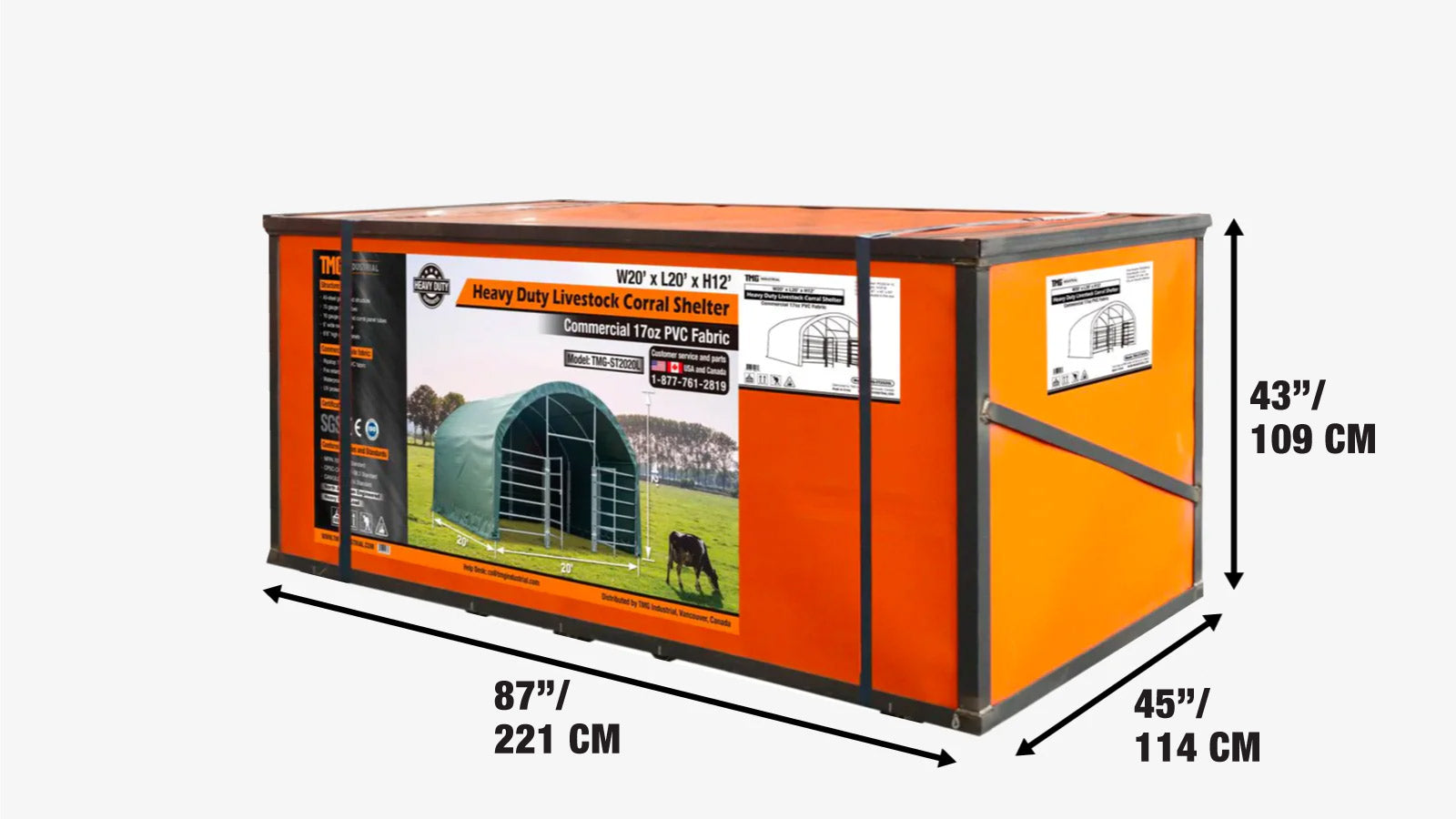

- This product is packed in a metal crate shipping box
- Shipping dimension: 87” x 45” x 43” (L x W x H)
- Shipping weight: 1460 lb
Product Description
Product Description
The TMG-ST2020L 20' x 20' Livestock Corral Shelter will make the protection of your livestock simpler and more efficient. Approximately 400 sq-ft of covered floor space gives your animals plenty of room to move around, sleep, eat and mingle with one another when not out in the field. This shelter is built out of galvanized, powder coated steel tubing that stands up to the elements and is resistant to rust, wear and corrosion.
The heavy-duty 17 oz PVC fabric covering is naturally flame retardant, UV protected, waterproof and triple-layered to prevent tearing. It reaches all the way to the ground on three sides of the shelter, and provides shade and cover for your animals to protect them from the sun and rain, or even a separate space to sleep if they need to be separated or contained for any reason.
Great structure for introducing new animals to a herd, keeping calves corralled with their mothers, and segregating an animal so you can administer a vaccine or monitor them for other health reasons. Features a front 5' swing gate for easy access and 6-bar corral panels on all sides to keep your animals safe and confined.
