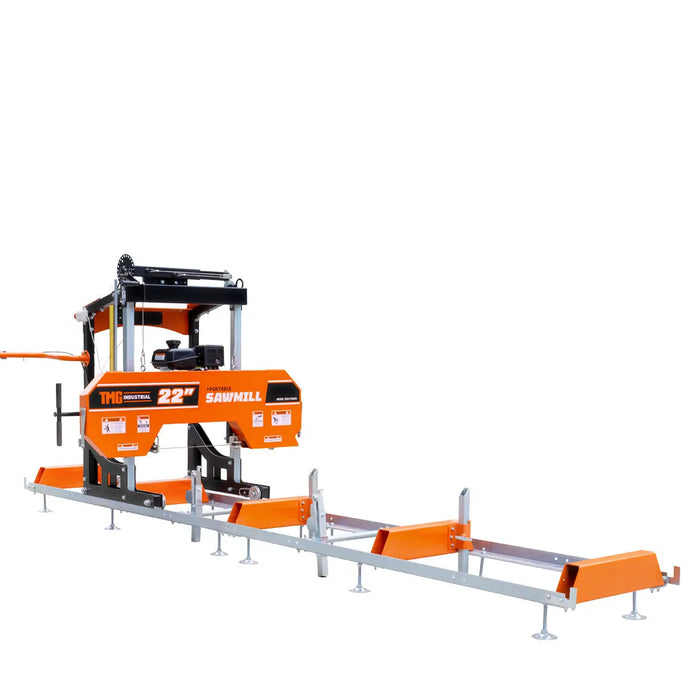

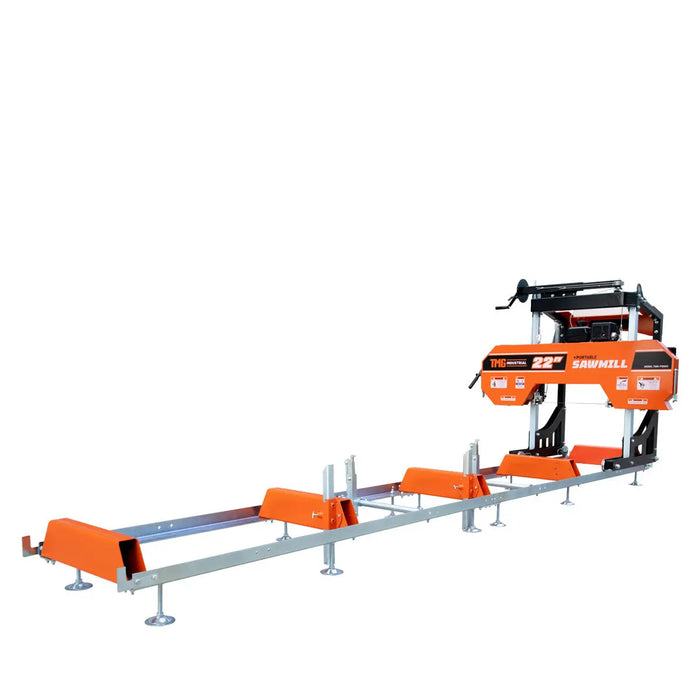

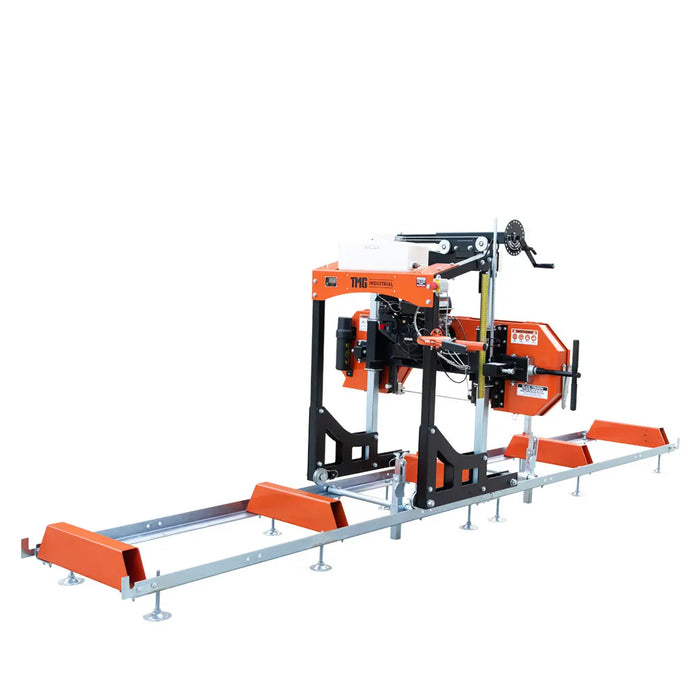

22" Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22
FREE
shipping to most locations in
USA
Learn More
Features
Features
- The 7 HP Kohler Command Pro Series Engine is known for its reliability, and offers consistent and efficient cutting for effortless workflow

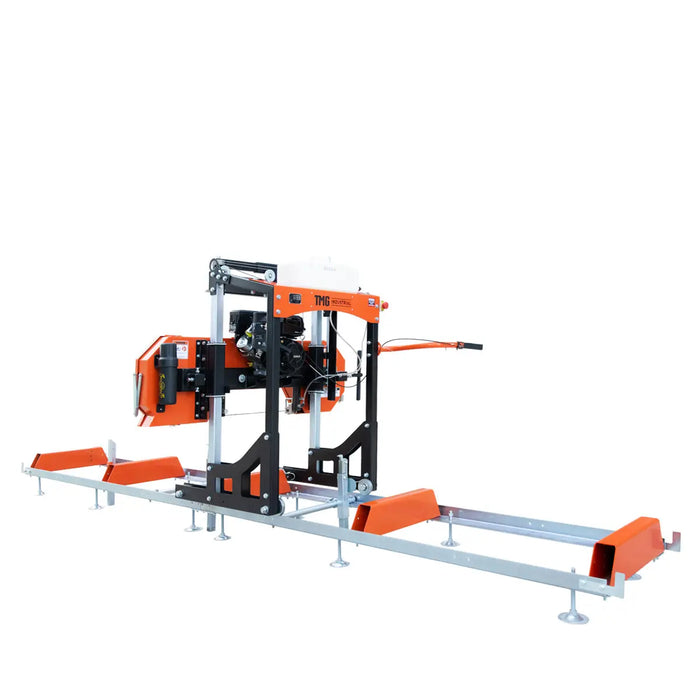

- Built with a sturdy 4-post carriage and saw head locking design, this sawmill offers durability and stability during all operations
- A waist-height saw head lift crank mechanism allows hassle-free adjustments, letting you switch between cuts swiftly and comfortably without strain
- With a remarkable 22” max. log diameter and 12’ max log length, you can tackle a wide range of projects, from small planks to more substantial boards
- Secure transportation is made possible by the saw head locking design which enhances safety during transportation and prevents mishaps while moving

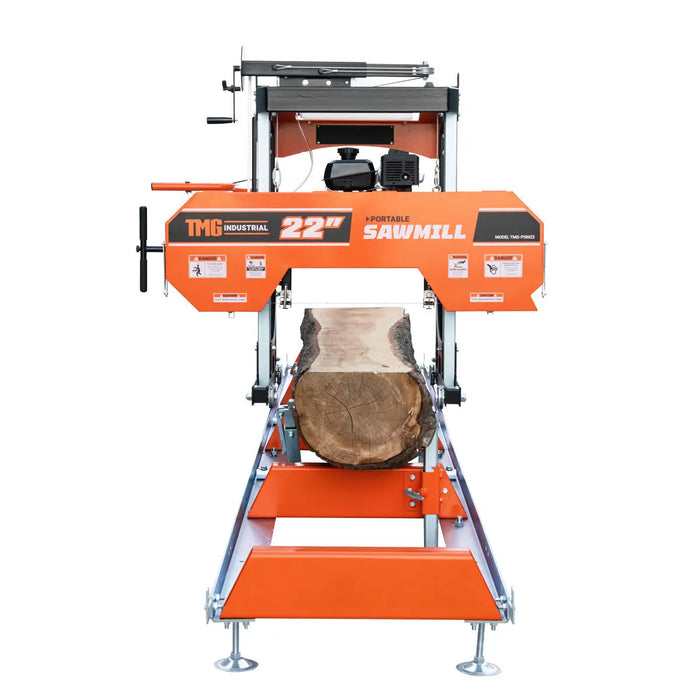

- Dual quick log clamps, combined with adjustable limit tubes, accommodate various wood sizes, enhancing your flexibility and creative options
- Oil Sentry™ function provides automatic low-oil shutdown, safeguarding the engine and prolonging its lifespan for extended heavy-duty use
Specifications
Specifications
- Maximum log diameter: 22”
- Maximum log length: 12’
- Maximum board width: 20”
- Maximum board thickness: 5-½”
- Track length: 14-½’
- Saw blade (*sold separately):
- Blade length: 128” (3251mm)
- Blade width:1-¼”-1-⅜” (32-34mm)
- Blade thickness: 0.035”-0.043” (0.9-1.1mm)
- 10 L translucent water tank
- Dual quick log clamps
- Saw head locking design
- Waist-height lift crank

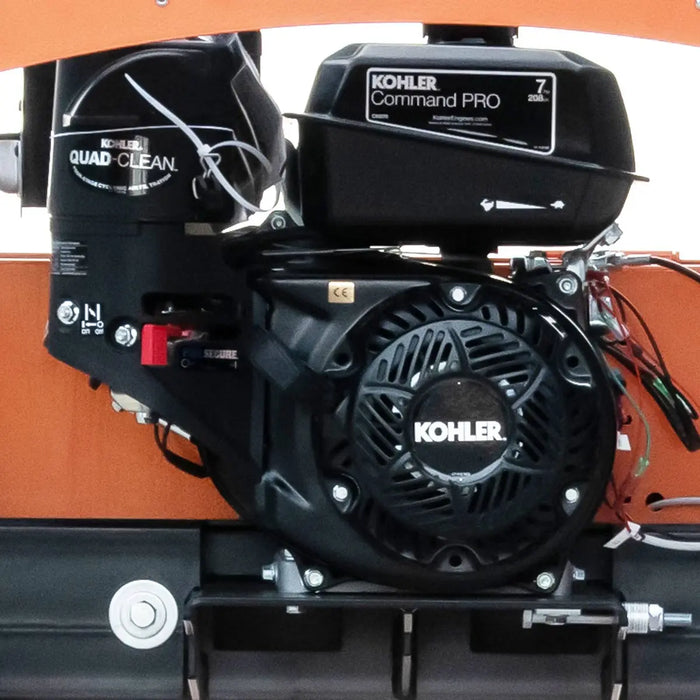

- Model: Kohler® CH270
- Type: Four-cycle, tri-fuel conversion, OHV, aluminum head & crankcase
- Power: 7 HP
- Displacement: 208 cc
- Start type: Recoil
- Fuel capacity: 4.0 L
- Oil capacity: 0.6 L
- Cast iron cylinder liners provide lasting durability
- Oil Sentry™ automatically shuts the engine down in low-oil condition
Engine
Shipping Information
Shipping Information
The order will ship FREE from one of our main warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 89” x 17” x 31” (L x W x H)
- Shipping weight: 750 lb
Product Description
Product Description

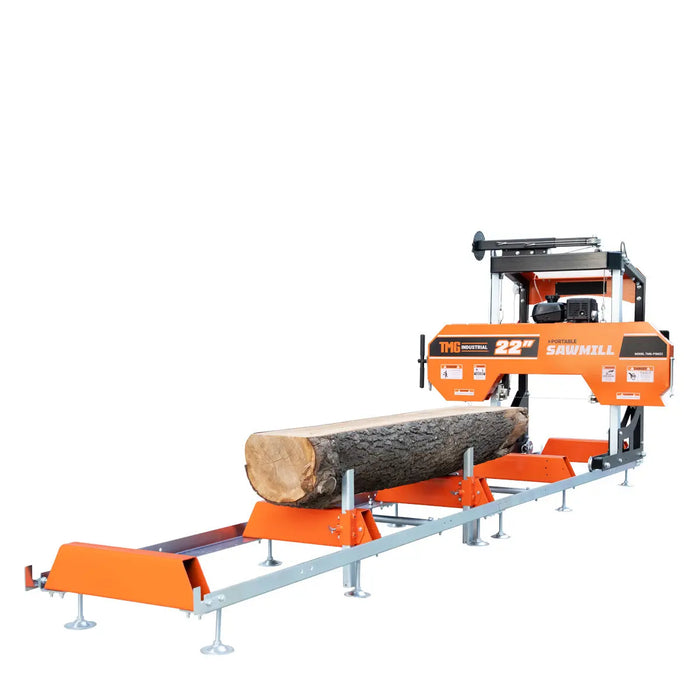

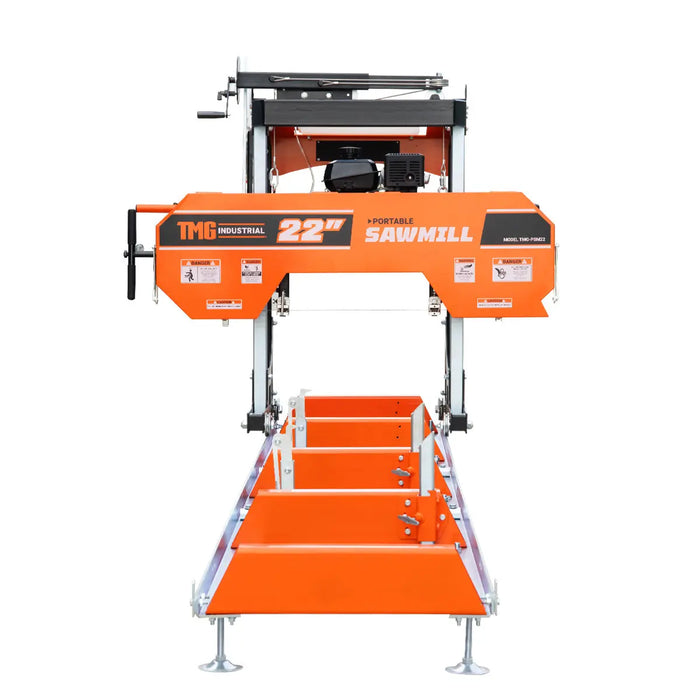

The TMG-PSM22 Portable Sawmill is designed for efficiency and precision. With its 7 HP Kohler Command Pro Series Engine delivering consistent power, this sawmill lets you effortlessly transform logs into a wide range of custom boards. It has a 22" max. log diameter and 12' max log length capacity that will cater to various projects. Built with a sturdy 4-post carriage with saw head anti-tip self-locking design, along with a waist-height lift crank, which make adjustments simple and easy-to-do no matter where your setup is.
Equipped with a 10 L translucent water tank to keep the blade cool while cutting, reducing wear on the teeth and extending their lifespan. Dual quick log clamps and adjustable limit tubes accommodate different wood sizes for enhanced versatility, and you can easily craft boards up to 20" wide and 5-½" thick.
A tri-fuel conversion system in the engine provides exceptional performance to the user and makes this sawmill adaptable and ready for any environment you put it in. Its durable aluminum build and Oil Sentry™ function, which protects against low oil levels, add to its heavy-duty and robust design. Get ready to change the game and upgrade your woodworking with this high quality and cost-effective saw.
We also carry other sawmill models: TMG Portable Sawmills
