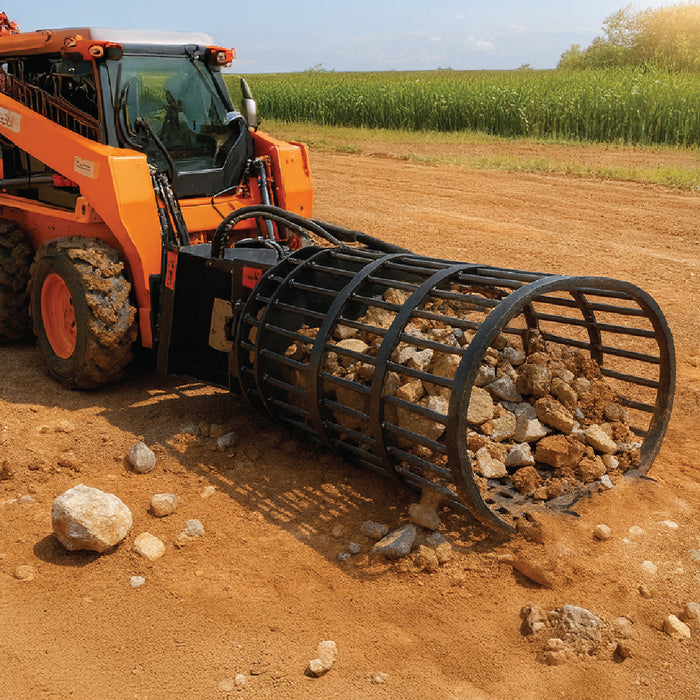

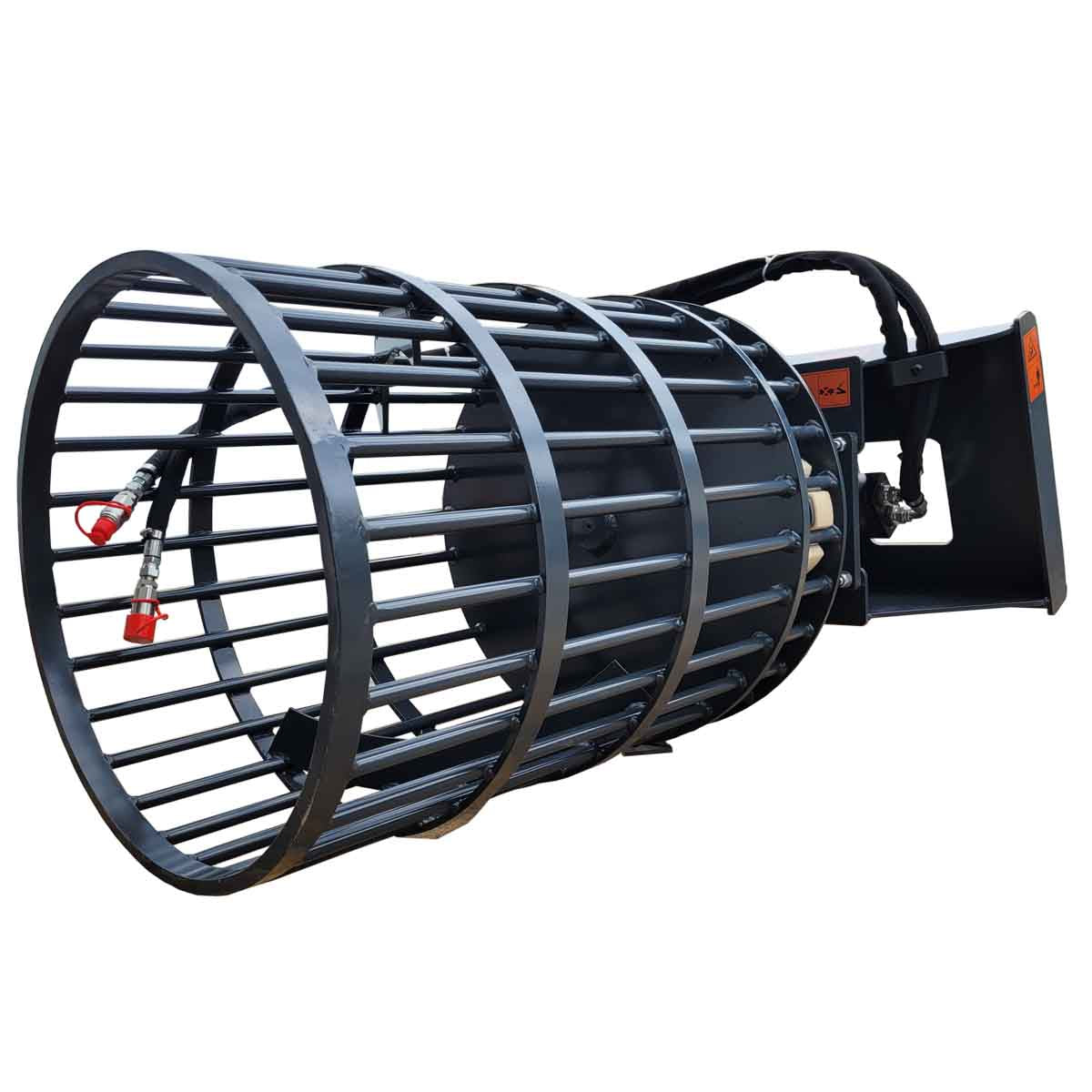

30" Skid-Steer Rotary Rock Picker, 1,250 lb Load Capacity, NM400 Wear Resistant Steel, Universal Mount, TMG-SRP32
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
Specifications
Specifications

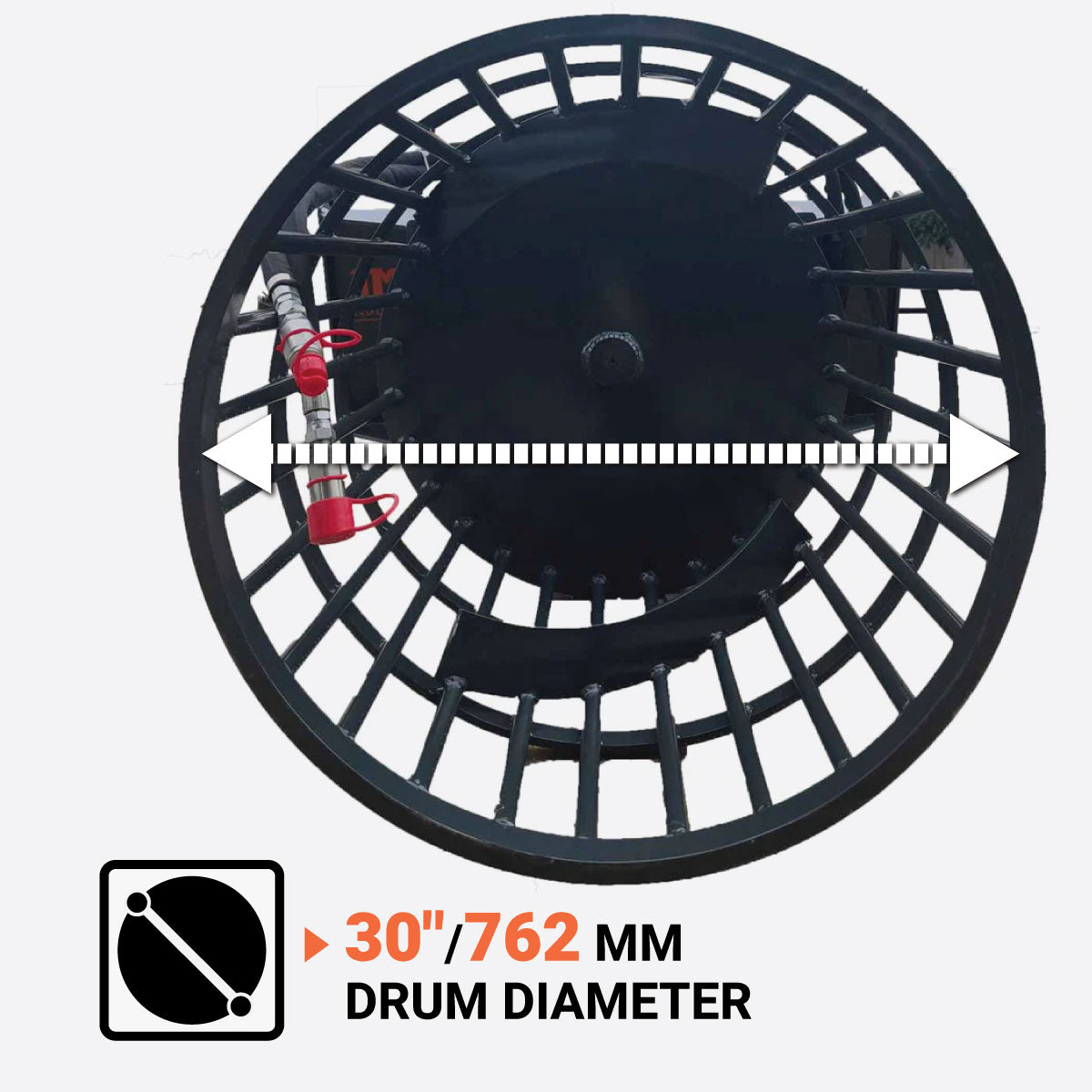

- Drum Diameter: 30″ (762 mm)
- Maximum Rock Diameter: 28” (712 mm)
- Barrel Depth: 39″ (990 mm)

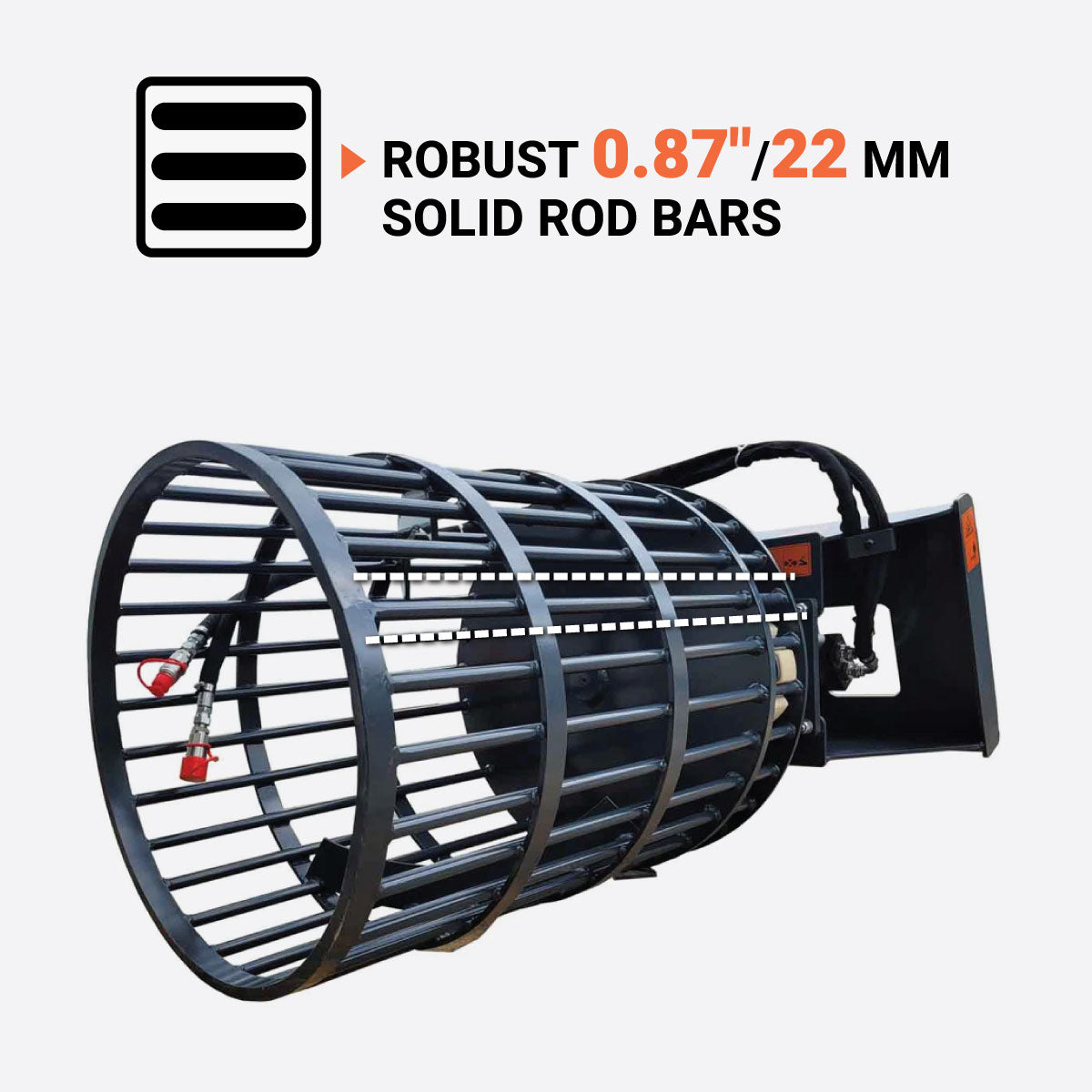

- Barrel Bar Diameter: 0.9″ (22 mm) solid rod

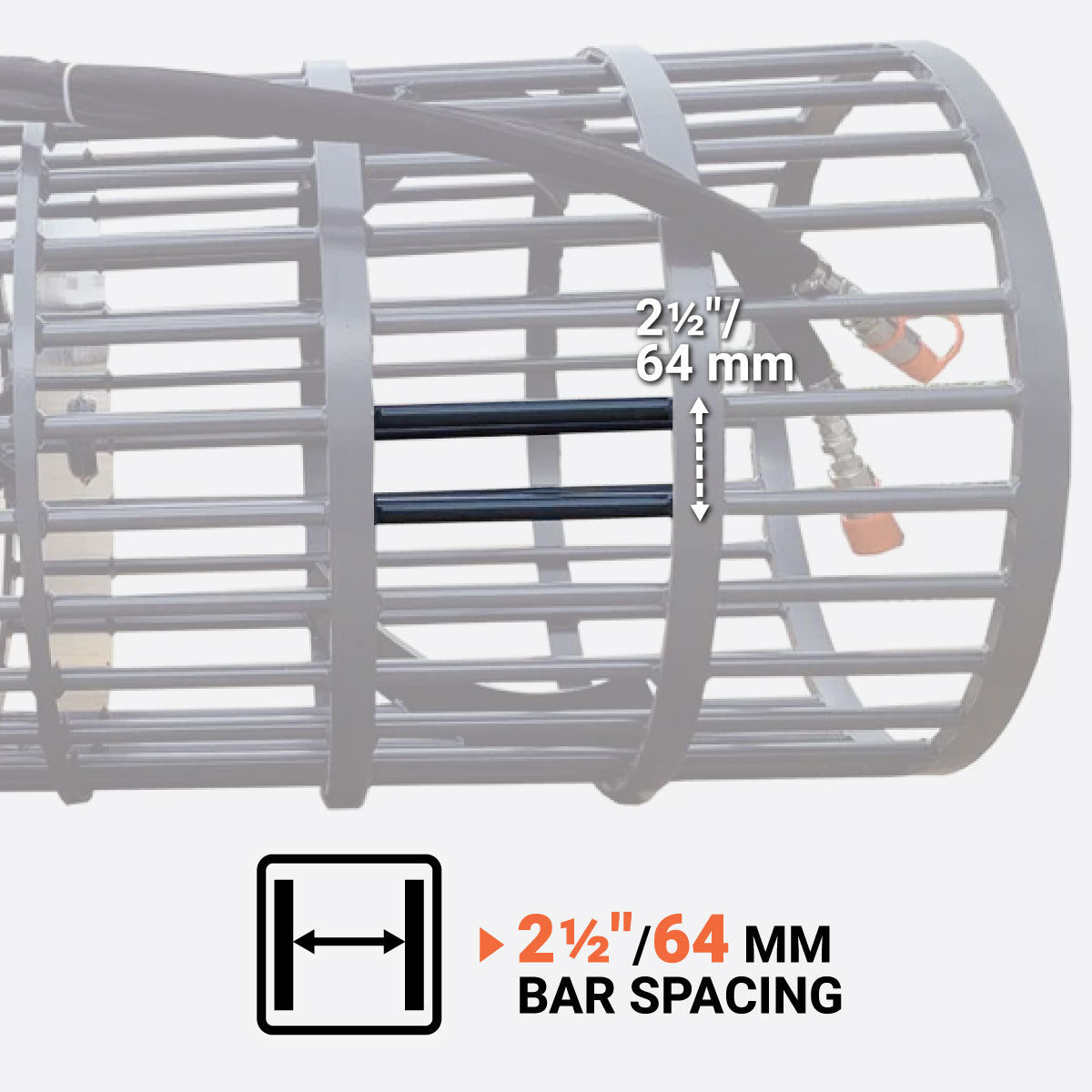

- Spacing Between Bars: 2½″ (64 mm)
- Thickness of Bottom of Barrel: 0.8” (20 mm)
- Main drive axle diameter: 3.5” (89 mm)
- Approximate Load Capacity: 1,300 lb (590 kg)
- Hydraulic Pressure: 2,300 - 3,500 PSI
- Flow Rate: 10 – 20 GPM
- Skid Steer Power Range: 40–75 HP
- Barrel Rotation Rate: 20 – 30 RPM

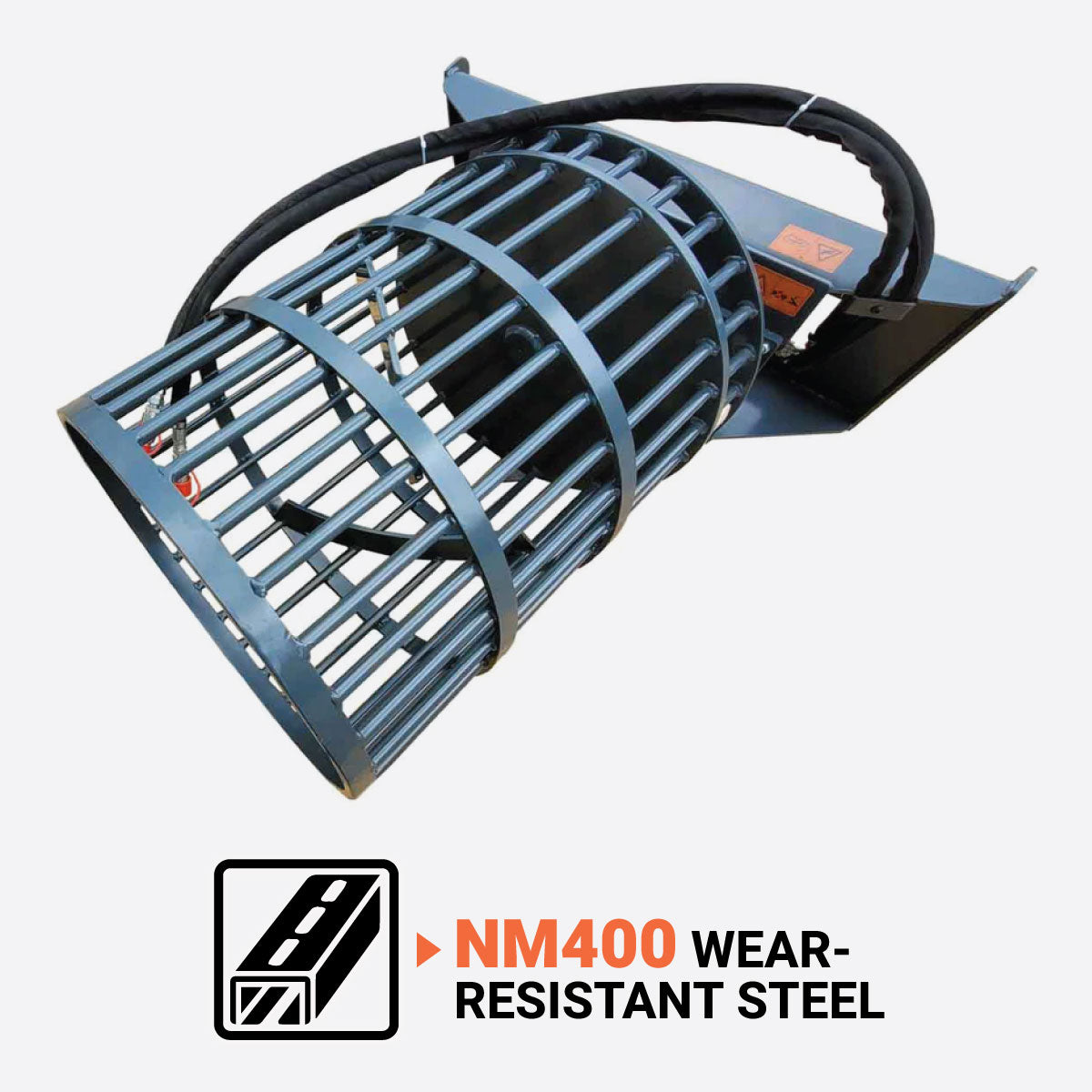

- Steel material of barrel opening and spindles: NM400
- Steel material of barrel and mount: Q345B (A572 ASTM)
- Bearing rating: 10 tons

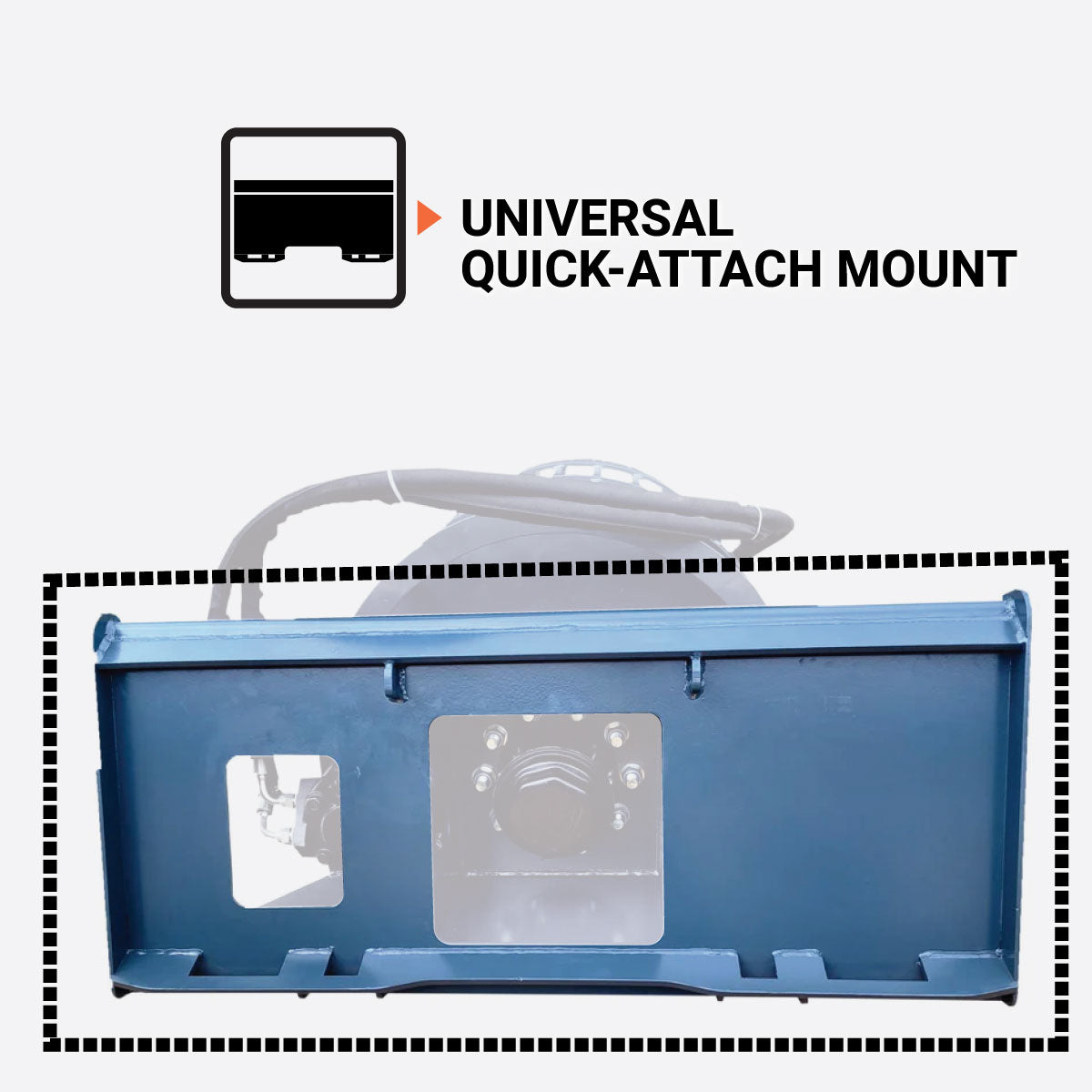

- Mount Type: Universal Quick-Attach Mount
Shipping Information
Shipping Information
Your order will be shipped from one of our main warehouses in United States. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

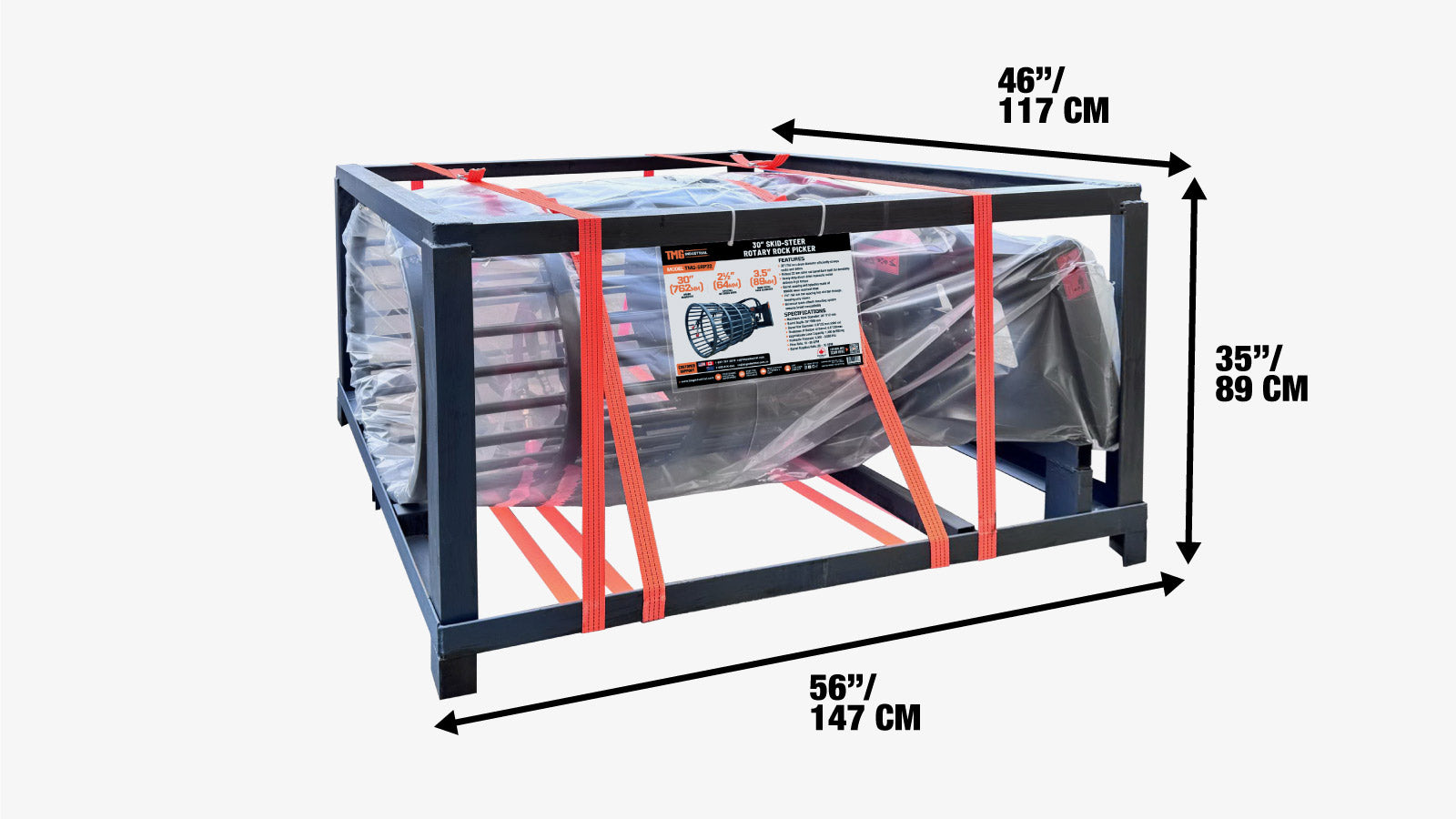

- This product is packed in a metal crate shipping box.
- Shipping dimension (L × W × H): 56″ × 46″ × 35″ (147 × 117 × 89 cm)
- Shipping weight: 1035 lb (470 kg)
Product Description
Product Description

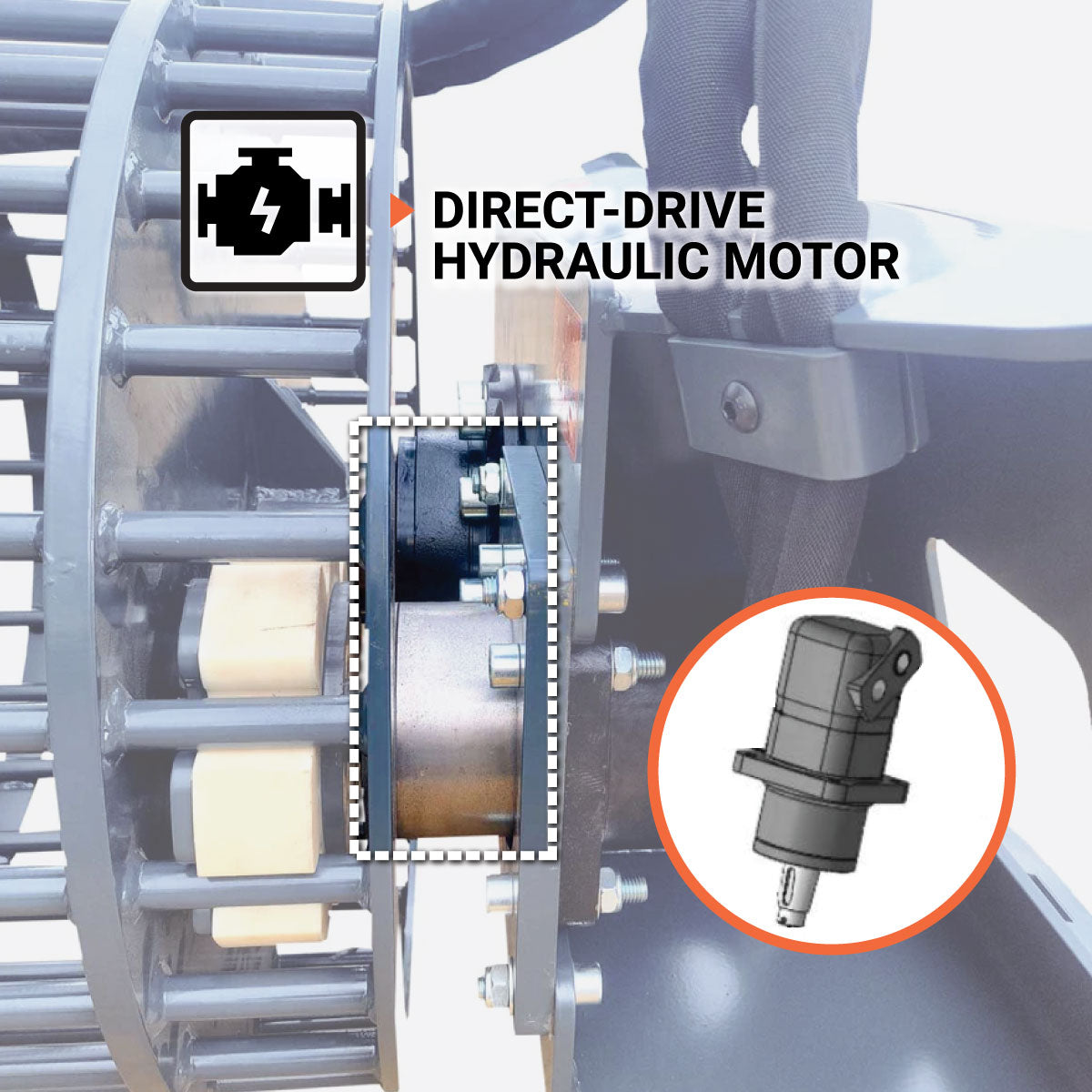

The TMG-SRP32 Skid-Steer Rotary Rock Picker takes the hard work out of field clearing. Its 30″ (762 mm) caged barrel and 39″ (990 mm) depth scoop large amounts of stones and debris in each pass, while 2½″ (64 mm) bar spacing allows soil to fall through—preserving valuable topsoil. Powered by a reliable hydraulic motor, this tool fits skid steers of 35–75 HP via its universal quick-attach mount. With a 1,300 lb (590 kg) load capacity, the TMG-SRP32 turns labor-intensive jobs into efficient, smooth operations.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
