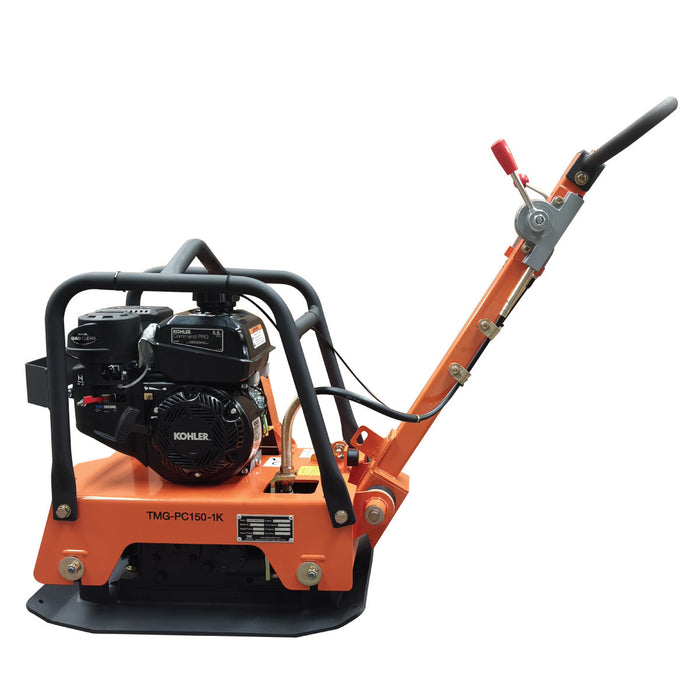

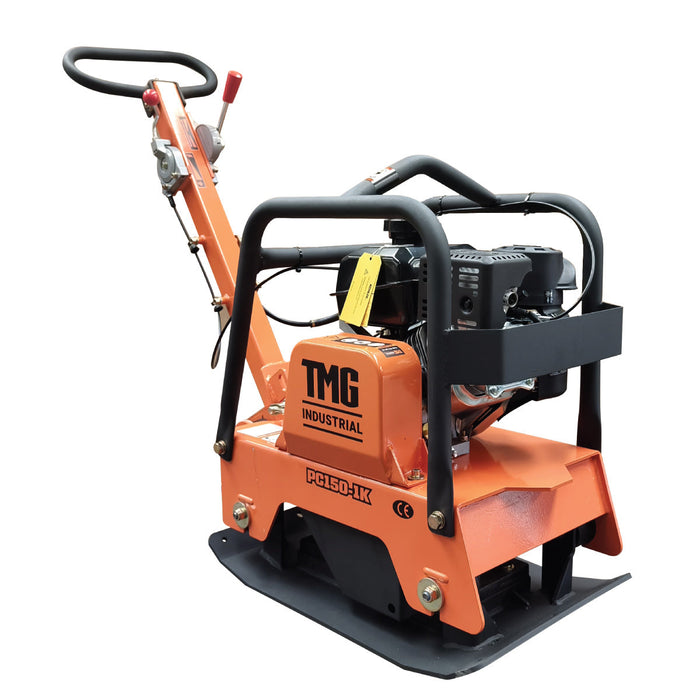

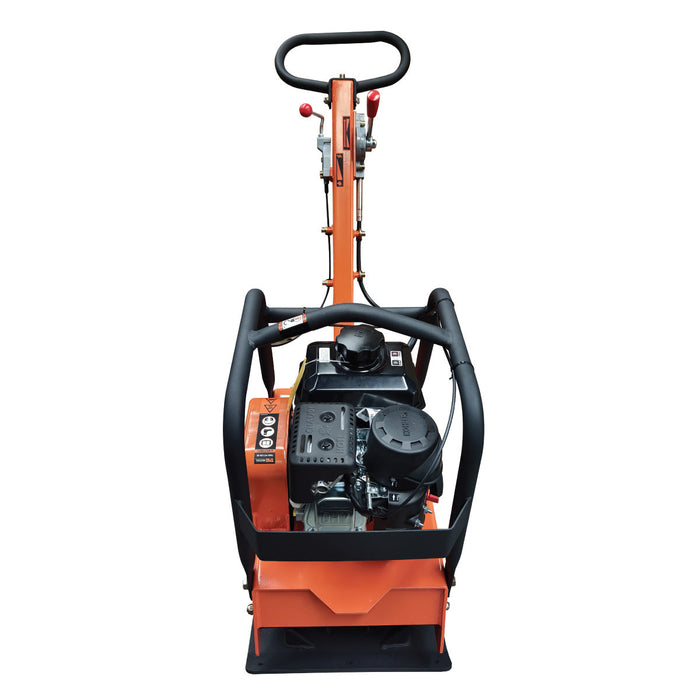

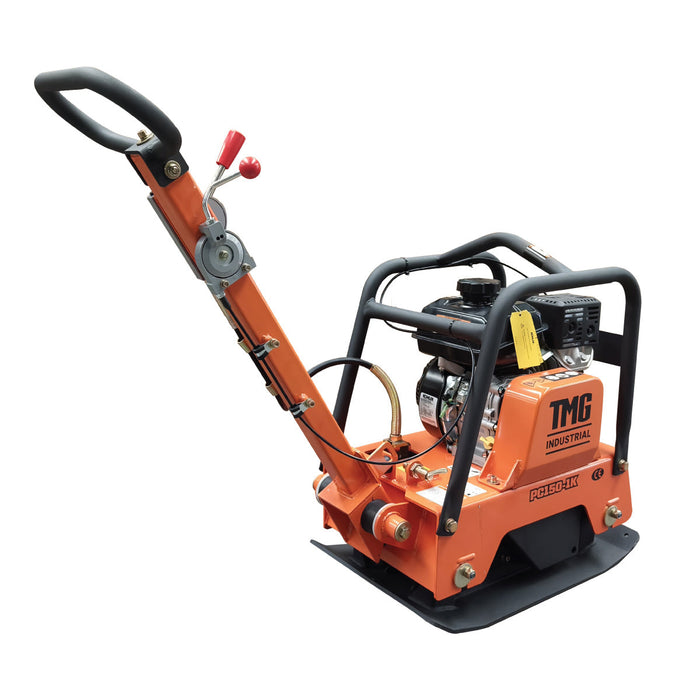

5600-lb Reversible Vibratory Plate Compactor, 5.5 HP Kohler Command Pro Engine, TMG-PC150-1K
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
Compact Efficiency
Medium-duty design excels in confined commercial and residential areas, making ownership more cost-effective than frequent rentals.
Reliable Engine
Driven by a Command Pro Series CH255 5.5 HP Kohler engine, renowned for durability and consistent top-tier performance.
Agile Operation
Hydraulically controlled forward and reverse movement reaches up to 65 ft/min, enabling seamless operator control and workflow.
Powerful Output
Delivers 5,600 lb of compaction force at 4,300 VPM, achieving up to 3,900 sq ft of ground coverage per hour.
Tough Transmission
Equipped with a belt-driven exciter, sealed cover, and centrifugal clutch for safe, reliable, and cost-efficient power delivery.
Self-Cleaning Plate
Features a 25″ × 16″ base plate with a tapered edge that effectively prevents dirt and rock buildup.
Precision with Comfort
Rubber shock absorbers reduce vibration around delicate forms and utilities, ensuring accurate compaction and operator comfort.

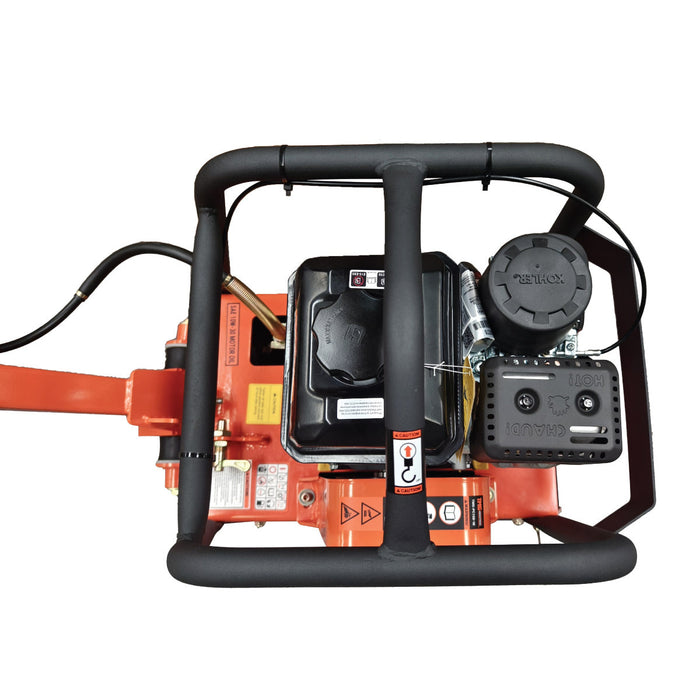

Engine Protection
Surrounded by a robust protective cage, the engine remains shielded from falling debris and tools on busy job sites.

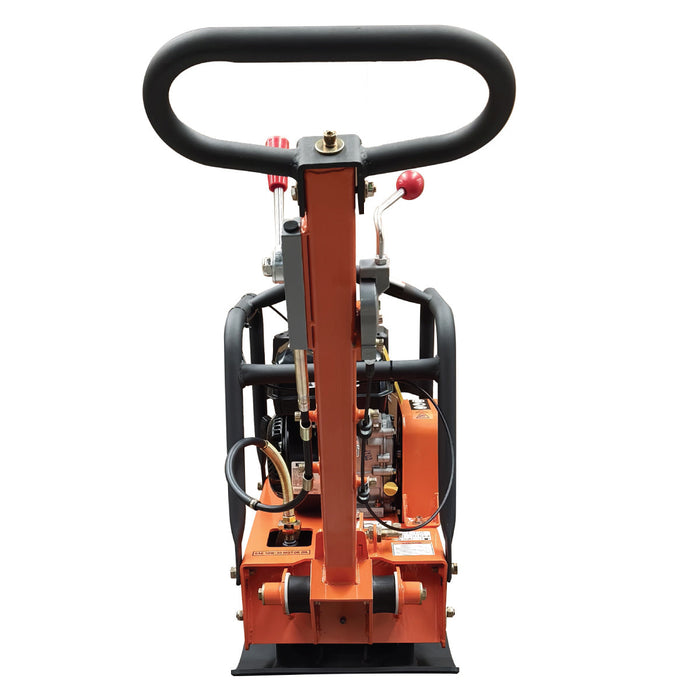

Simple Controls
Intuitive on/off switch and throttle lever provide easy operation and enable quick shutdown in emergency situations.
Effortless Movement

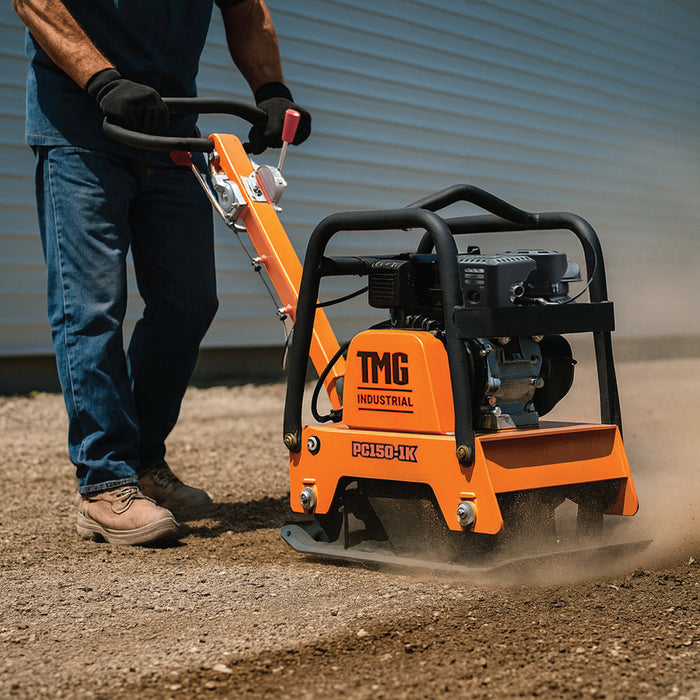

The built-in vibratory action provides a self-propelling effect, requiring only light guidance from the operator.
Versatile Applicability
Capable of compacting granular soils, sand, asphalt, paving stones, bricks, and aggregates up to 12″ deep.
Emission Compliant
Meets EPA Phase III and CARB III environmental standards, ensuring efficient operation with lower emissions.
Specifications
Specifications

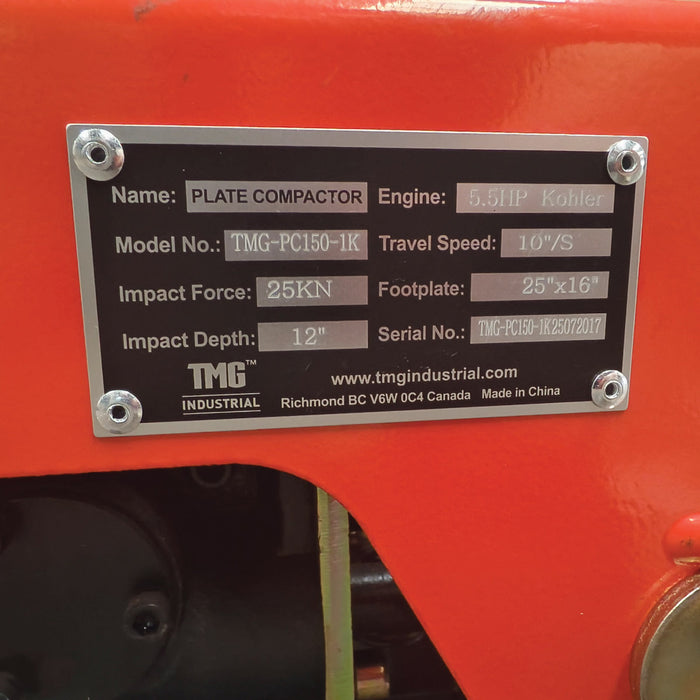

- Compaction force: 5600 lbs
- Work capacity: 3900 sq-ft/hour
- Frequency: 4300 VPM
- Compaction depth: 12”
- Travel speed: 65 ft/min
- Max. inclination angle: 15º
- Compaction plate size: 25” x 16”
- Operating weight: 270 lbs
Engine Specifications:

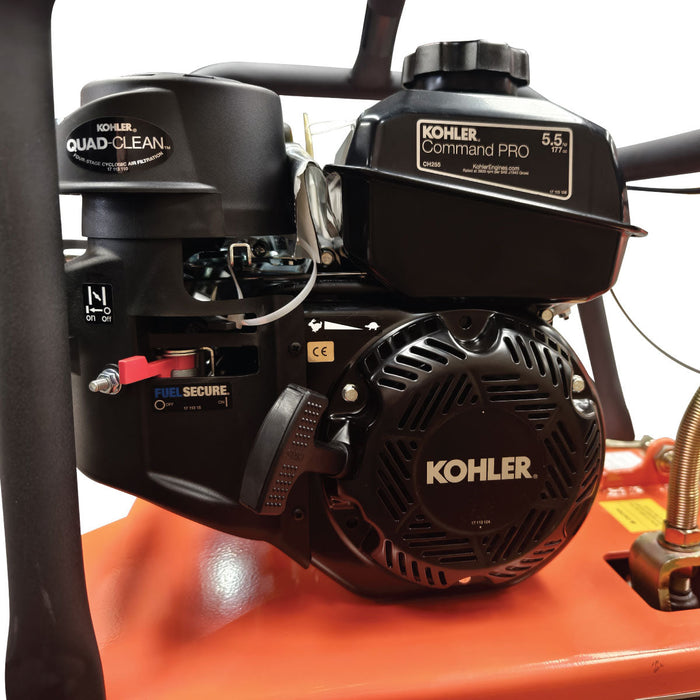

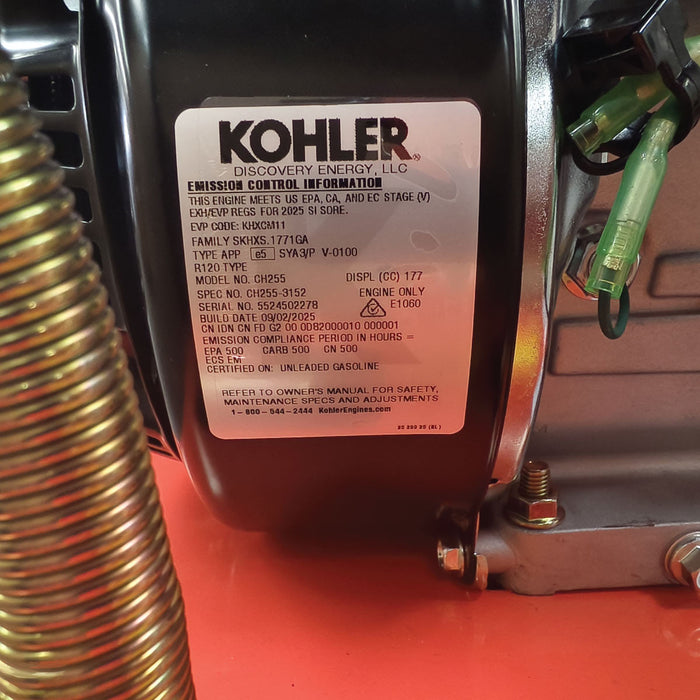

- Model: CH255 Kohler Command Pro series
- Engine Type: 4-Stroke OHV Single Cylinder
- Horsepower: 5.5 HP
- Displacement: 177 cc (10.8 in³)
- Bore: 68 mm (2.7 in)
- Stroke: 49 mm (1.9 in)
- Maximum Torque: 8.3 Nm (11.2 lb-ft) @ 2800 RPM
- Compression Ratio: 8.5:1
- Dry Weight: 15 kg (33.2 lbs)
- Oil Capacity: 0.6 L (0.63 US qt)
- Fuel Type: Gasoline
- Number of Cylinders: 1
- Shaft Orientation: Horizontal
- Shaft Diameter: 3/4 in
- Shaft Length: 2-7/16 in
- Start Type: Recoil
- Ignition Type: Electronic

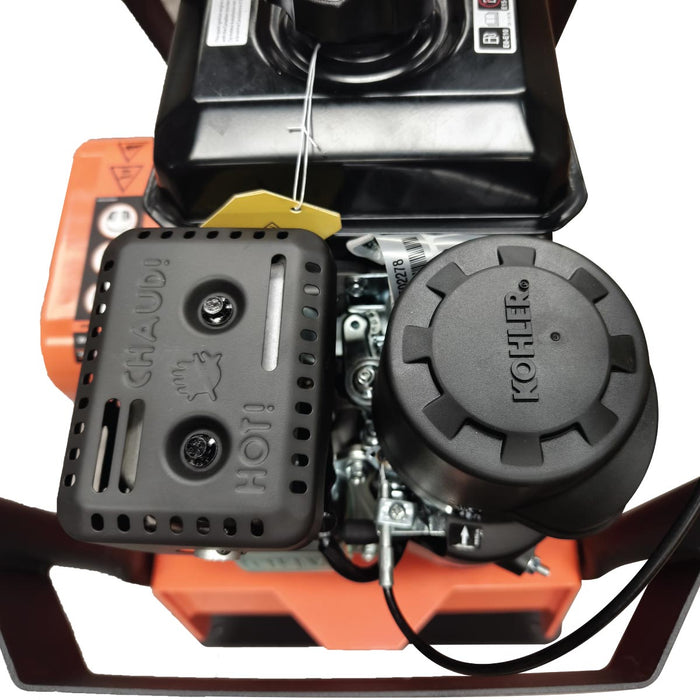

- Air Cleaner Type: Quad Clean 4 Stage Heavy Duty Cyclonic
- Low Oil Shut Down: Yes
- Muffler: Yes

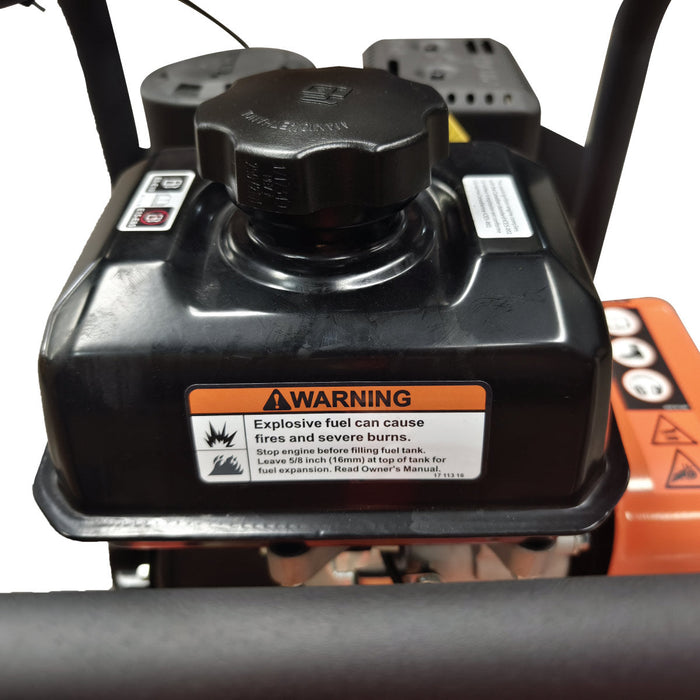

- Fuel tank: 3.0 L
- Emissions compliance: EPA Phase III and CARB III
Shipping Information
Shipping Information
The order will ship from one of our warehouses in the United States. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

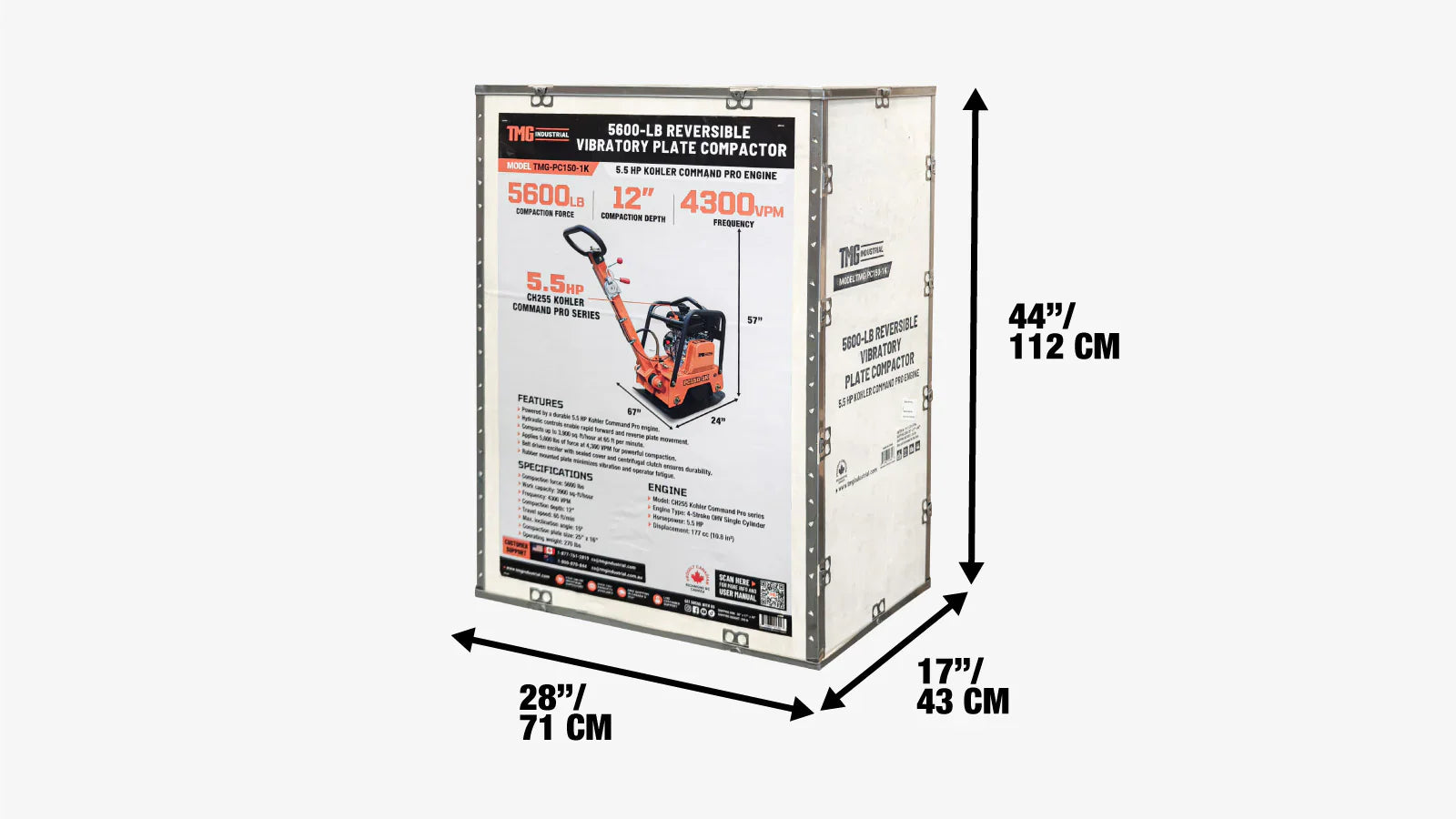

- The product is packed in a wooden crate shipping box
- Dimension: 28" x 17" x 44" (L x W x H)
- Shipping weight: 310 lb
Product Description
Product Description
The TMG-PC150-1K Reversible Plate Compactor is a powerhouse capable of compacting soils, gravels and sands for projects needing tight, solid grounds to work and build on. Any sort of bituminous or granular material is simply no match for the over 5600 lbs of force produced by this machine. As a medium-duty model, it is the ideal solution for maneuvering around footings, forms, building construction, gas lines, sewer works, drainage ditches and any other confined areas with ease. Having this product on hand ensures you never have to rent again and that you’ll always be prepared at your residential or commercial job site.
This compactor is powered by a Command Pro Series CH255 5.5 HP Kohler gasoline engine. This series is the benchmark for industry-standard, high-quality and reliable engines. Kohler has a North America wide, 3-year manufacturer warranty on this engine, giving you the confidence of top-tier performance despite the tough work that you’ll demand out of this machine. Capable of on-the-spot compaction as well as rapid forward and reverse plate travel speeds up to 65 feet per minute. The 25" x 16" vibrating plate has built-in rubber shock absorbers for accuracy and sustained comfort. The TMG-PC150-1K is hardworking like you and won’t quit until the job is done.
For skilled tradesmen and labourers alike, the pull starter, throttle lever, on/off switch and centrifugal governor make this compactor efficient, easy to learn, use, transport and store. A protective cage surrounds all the vital components of the compactor, and its overall rugged industrial design is strong and durable. It’s environmentally friendly and meets both EPA and CARB emission standards, so you can be sure you’re receiving a modern, economical product that uses less energy to do more work.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
