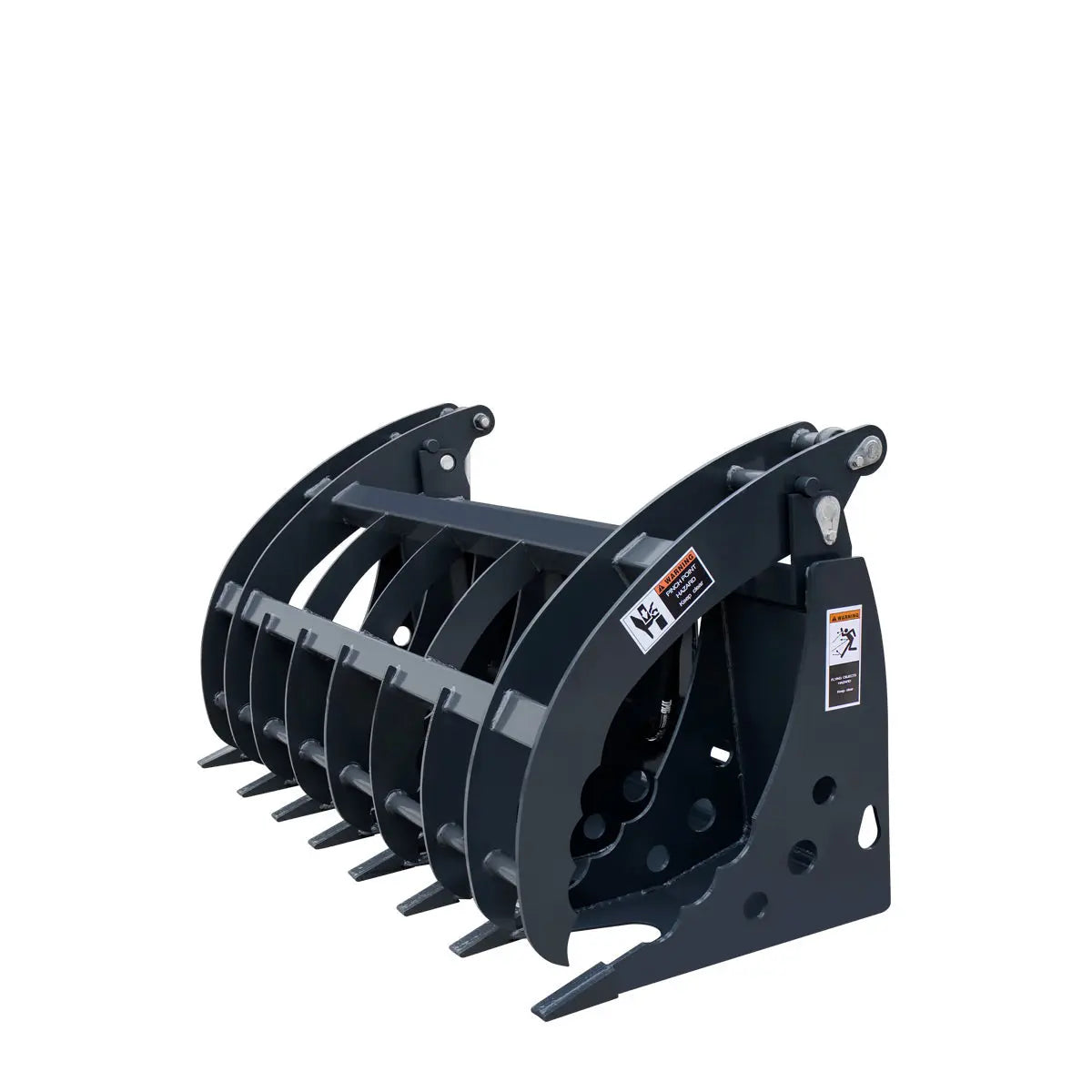

72" Skid Steer Root Rake Clamshell Grapple, Universal Mount, 54" Jaw Opening, 3000 lb Weight Capacity, TMG-SRR75
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Grapple capacity up to 3000 lb to handle jobs in forestry, recycling, scrap yards, construction, agriculture and more
- 72” of working width and open end design allows you to work with varying sizes of logs, brush, roots and awkward debris
- Twin hydraulic cylinder grapple arms (with guards) operate under 3000 PSI of pressure for a heavy-duty working capacity
- Greasable pins with bolt-locked design for simple routine maintenance that ensures this attachment’s long-lasting lifespan and dependability
- Reinforced weld-on curved teeth slide effortlessly across the ground, picking up debris while leaving the surface undisturbed
- Included hydraulic hoses for simple hookup and efficient energy transfer between the grappler and skid steer
- Universal mount that will fit most skid steers, turning it into a multi-use, versatile jobsite asset that is strong and reliable
Specifications
Specifications
- Compatible with 40-70 HP skid steers
- Operating weight: 975 lb
- Overall dimension: 72” (L) x 34” (W) x 38” (H)
- Working width: 72”
- Grapple capacity: 3000 lb
- Number of teeth: 8
- Teeth material: Mn400 steel
- Teeth width: 1-¾”
- Tine spacing: 9”
- Grapple arm & tine thickness: ¾”
- Min. jaw opening: 12”
- Max. jaw opening: 54”
- Hydraulic pressure: 3000 PSI
- Flow rate: 12-24 GPM
- Cross beams: 3” x 3”, 4 GA
- Twin hydraulic cylinder grapple arms with protective guards
- Universal skid steer mount
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 77” x 39” x 38” (L x W x H)
- Shipping weight: 1,165 lb
Product Description
Product Description
The TMG-SRR75 Skid Steer Root Rake Clamshell Grapple Attachment features twin hydraulic cylinder arms that can produce a grappling capacity of up to 3000 lb. A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, root raking, scrap yard sorting and any sort of moving chore around your acreage, farm or job site.
Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. The reinforced weld-on curved teeth slide effortlessly over the ground leaving the surface undisturbed, and 3" x 3" primary cross beams create an overall heavy-duty construction that will work through the toughest projects and ensure you get the job done.
72" of working width offers diverse grappling capabilities on your farm, commercial property or worksite. The 54" maximum jaw opening can clamp closed to a tight 12" so you'll have a solid grip on any kind of heavy load. Built to last with greasable pivot pins that have a bolt-locked design for easy routine maintenance and comes with included hydraulic hoses.
We also carry a similar model of this root rake grapple attachment: TMG-RG72
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
