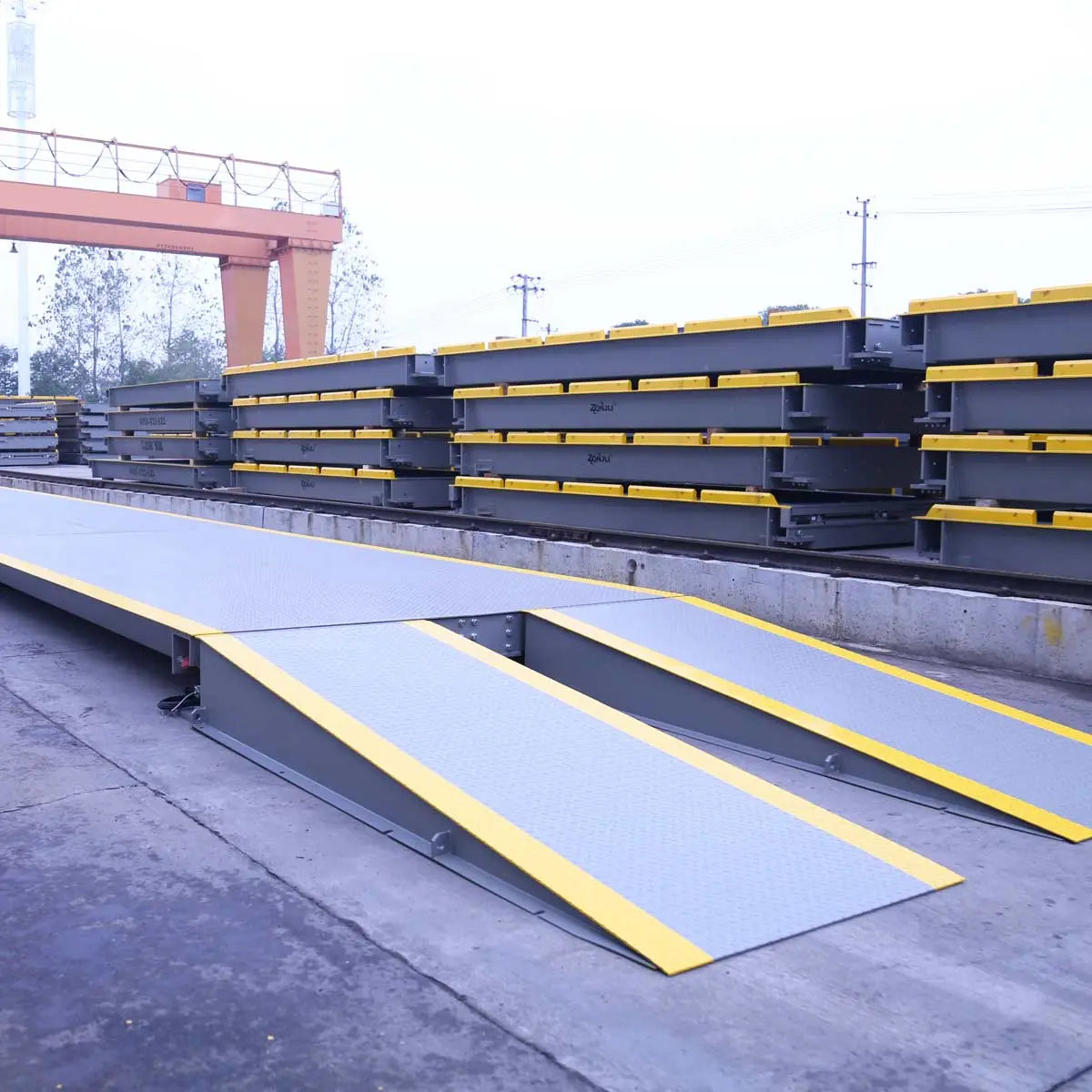

100 ton Weighbridge Truck Scale, -35℃ to +70℃, 10’ x 56’ (W x L), High-Quality Steel, U-Shape Beam Design, 120% Safe Overload, TMG-FST100
FREE
shipping to most locations in
USA
Product Manual
Features
Features
- Built with high-quality steel in a standard U-shape beam and modular design, making it easy to assemble/disassemble, durable, and long-lasting
- Anti-rust and anti-corrosion coating on the scale ensures that it will not rust or corrode over time, even with regular and prolonged use in varying weather
- The scale's top plate is checker plated, which makes it slip-resistant, ensuring that vehicles will stay in place during weighing for safety and accuracy
- This scale can be used in temperatures ranging from -35℃ to +70℃, making it suitable for use in various weather, seasons, and locations
- Included industrial load cells are designed for heavy-duty use and the digital indicator ensures a reliable and accurate real-time data reading
- The weighing indicator has a sound alert when the weight limit is exceeded, ensuring that users are aware when the scale is overloaded; 120% safe overload limit
- Weighing records can be stored, checked, and deleted, and are secured through power-off protection, providing users with a convenient way to track their data over time
- Above ground ramps are optional (sold separately)
- Optional accessories to order on parts store: https://parts.tmgindustrial.com/
- Guard rails (3 sections for both sides, 18m)
- Above ground ramps for both ends (4 pieces, 1.2 x 2.8m)
- External wall mounted LED display
Specifications
Specifications
- Capacity: 100 ton
- Scale platform width (exact): 118” (9.84’)
- Scale platform exact length (exact): 675” (56’)
- Structure: U-shaped beam (6)
- Steel: High-quality steel
- Painting: Anti-rust & anti-corrosion painting
- Truck scale consists of 6 modular pieces (59” x 225”)
- Top plate: 8 mm checker plate
- Accuracy: OIML III
- Working temperature: -35℃-+70℃
- Relative humidity: <95%
- Safe overloading: 120%
- Anti-cheating technology to eliminate electronic interference
- Can be connected to external devices such as printers, computers & large monitor displays
- Working temperature range: -35℃-+70℃
- Safe Overload: 150% (full scale)
- Ultimate overload: 300% (full scale)
- Hermetically sealed
- Protection class: IP68
- Operating temperature: 0℃~40℃
- Relative humidity: ≤85%RH
- Power supply: 220V/60Hz or 110V/60Hz
- Transmission mode: RS232/RS422/485 (optional)
- Baud rate: 600/1200/2400/4800/9600 (optional)
- Weighing record storage/check/delete/power-off protection
- Sound alert when over weight limit
- Waterproof seal joints
- Resistance protection device
- Stainless steel cover
Load Cell
Weight Indicator
Stainless Steel Junction Box
P.S. The scale is not certified for legal trade business.
Shipping Information
Shipping Information
This product is available for Pre-Sale order process only. The order will ship FREE from our main warehouse in Richmond, BC. Under normal circumstances it will take 8 to 12 weeks to process the production and get ready to ship from the warehouse. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- The scale will be shipped in an enclosed container or a flat deck truck
- Shipping dimension: 59” x 225” x 12” (per modular x 6) (L x W x H)
- Shipping weight: 18,700 lb
Product Description
Product Description
The TMG-FST100 100 ton Weighbridge Truck Scale has a measuring capacity of 100 tons. This truck scale can be installed in-ground or above-ground with ramps, and its industrial grade steel deck measures 10' wide and 56' long. The scale's industrial load cells and digital indicator are included in the package, and it can weigh at temperatures ranging from -35℃ to +70℃. This is a reliable and accurate weighing solution that is widely used in industries such as logistics, trucking, transportation, agriculture, waste management, forestry, military and government agencies.
Built with high-quality steel in a standard U-shape beam design with six modular pieces of U-beams included. The top plate is checker plated, and coated with an anti-rust and anti-corrosion coating for long lasting use. The weighing indicator comes with a sound alert when the weight limit is exceeded, and the scale has a safe overloading capacity of 120%. The weighing record can also be stored, checked, and deleted, and is secured through power-off protection.
Also included is a stainless-steel junction box that is resistant to water and other elements. It comes equipped with a resistance protection device and uses waterproof seal joints to connect the junction box and the indicator separately.
