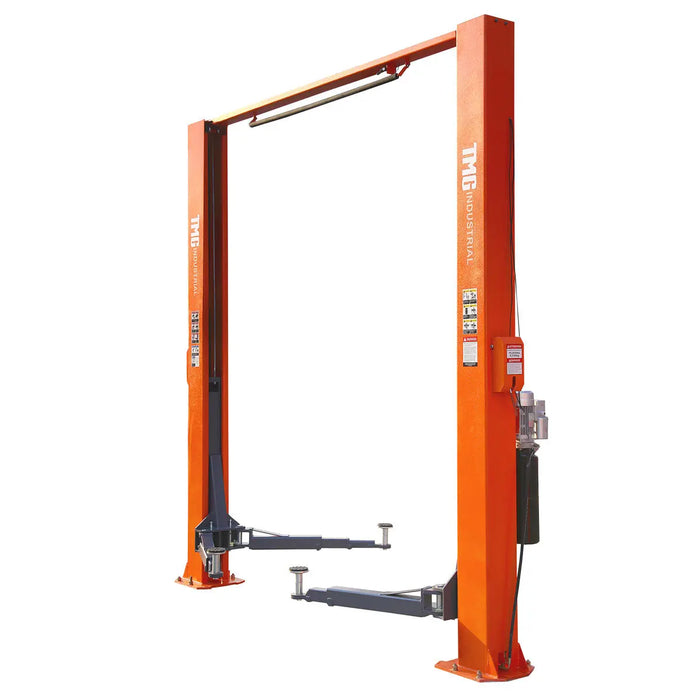

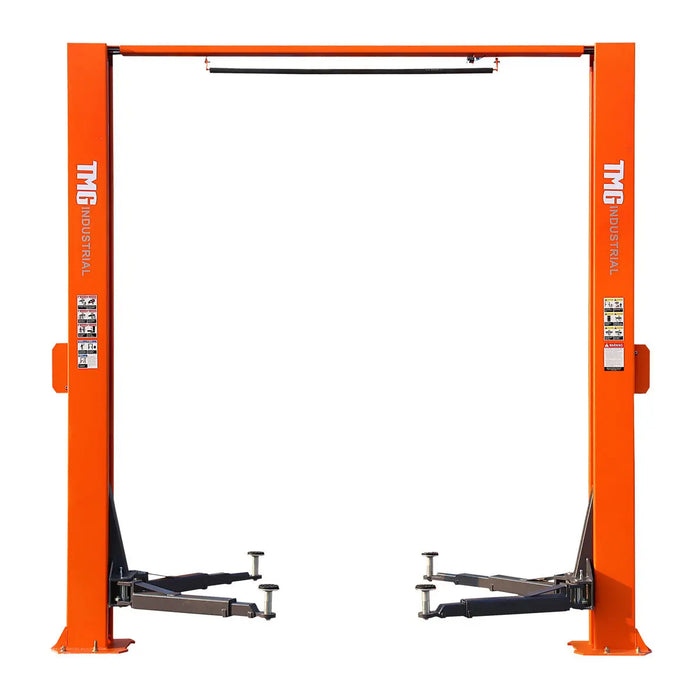

10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72" Lift Height, Dual-Point Lock Release, TMG-ALT100

10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72" Lift Height, Dual-Point Lock Release, TMG-ALT100

10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72" Lift Height, Dual-Point Lock Release, TMG-ALT100
CURRENTLY IN STOCK
SKU TMG-ALT100
$3,699.00
$3,699.00 - $3,699.00
$3,699.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
$3,699.00 Save $200.00
$3,499.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-888-467-5788
Product Manual
Find Parts
Product Video

Features

  • Ideal for repairs, fluid changes, body work and more in commercial shops, personal garages and general automotive service departments
  • 10,000 lb lifting capacity and 72” lift height can accommodate most trucks, cars, SUVs and classic/sport models with ease
  • Overhead design protects cables, hydraulic lines and electrical wires while keeping the floor clear between columns for work on low profile vehicles
  • Symmetric telescopic reach arms on either side feature automatic arm restraints and offer a diverse array of support positions
  • Dual hydraulic chain-drive cylinders power heavy-duty ⅜” steel cables and generate more than enough force for a smooth lifting operation
  • Automatic overhead stop switch installed at 140” to reduce the risk of damage/accidents and ensure safe working conditions
  • Two post overhead design maximizes the lifting and stationary working stability; it has a small footprint and is easy to install in a variety of locations around your shop or garage
  • Reliable, solid, industrial construction with a reinforced frame is optimized for safety and high-traffic commercial or personal work
10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72

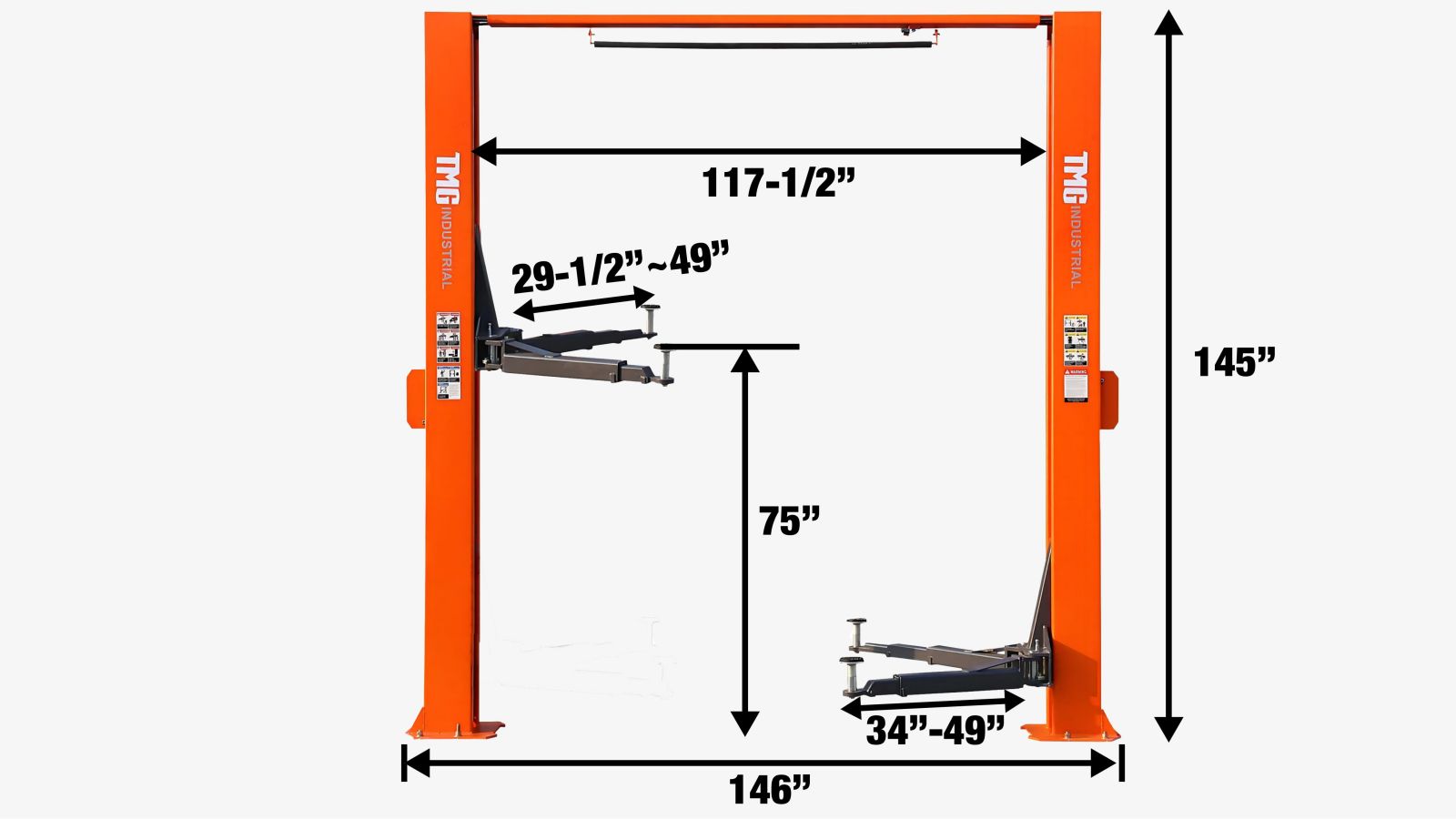

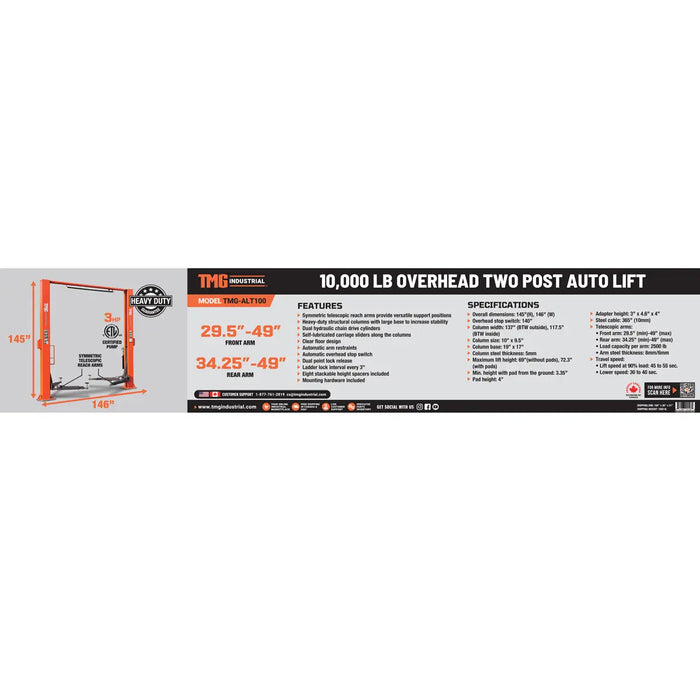

Specifications

  • Load capacity: 10,000 lb
  • Overall height: 145”
  • Overall width: 146”
  • Overhead stop switch: 140”
  • Column width: 137” (outsides), 118” (insides)
  • Column size: 10” x 9-½”
  • Column base: 19” x 17”
  • Column steel thickness: 5 mm
  • Max. lift height: 69” (without pads), 72” (with pads)
  • Min. height with pad from the ground: 3”
  • Drive through clearance: 107”
  • Adapter height: 3” (4 pieces), 6” (4 pieces)
  • Steel cable:
    • Length: 365”
    • Thickness: ⅜”
  • Retractable front arm: 30” - 49”
  • Retractable rear arm: 34” - 49”
  • Arm steel thickness: 8 mm/6 mm
  • Travel speed:
    • Rise up at 90% load: 45 to 55 seconds
    • Lower down: 30 to 40 seconds
  • Max. load capacity per arm: 2,500 lb
  • Automatic arm restraints
  • Dual point lock release
  • Mounting hardware included

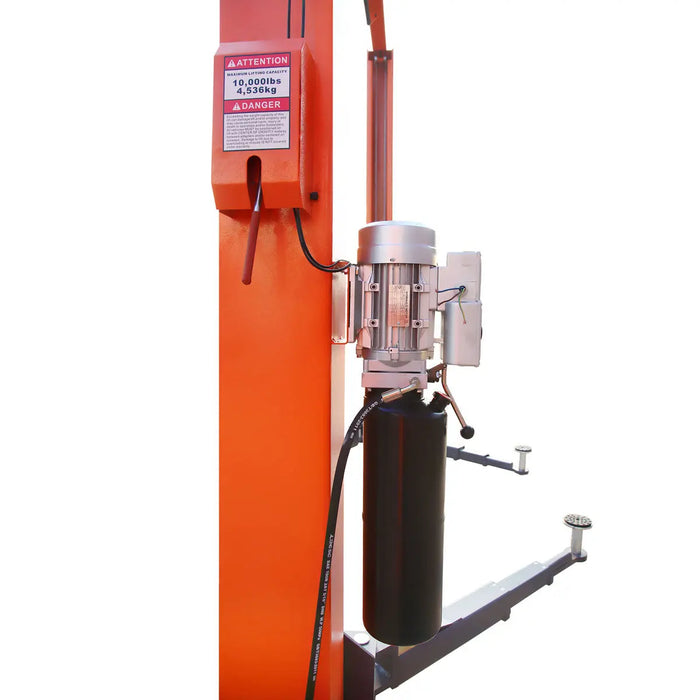

Hydraulic Motor Pump Power Unit:

  • 220 VAC, 3 HP, single phase
  • No-load speed: 3360 RPM
  • Working pressure: 2600 PSI
  • Tank capacity: 2.5 US gal
  • Pump oil required: AW32/AW46
  • CETL certified
10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72

Product Description

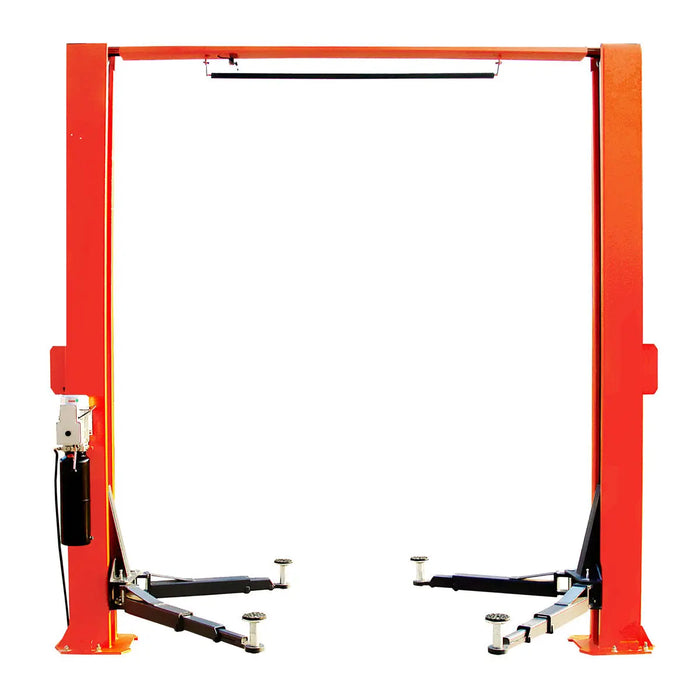

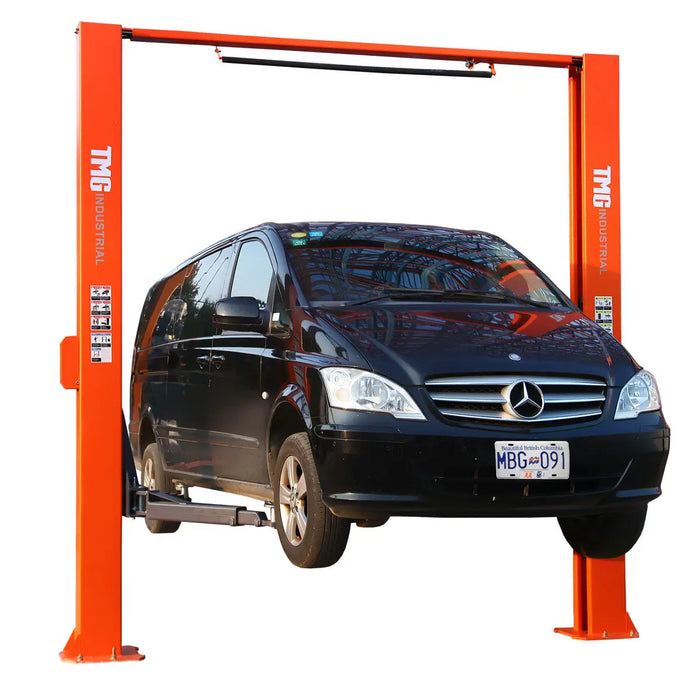

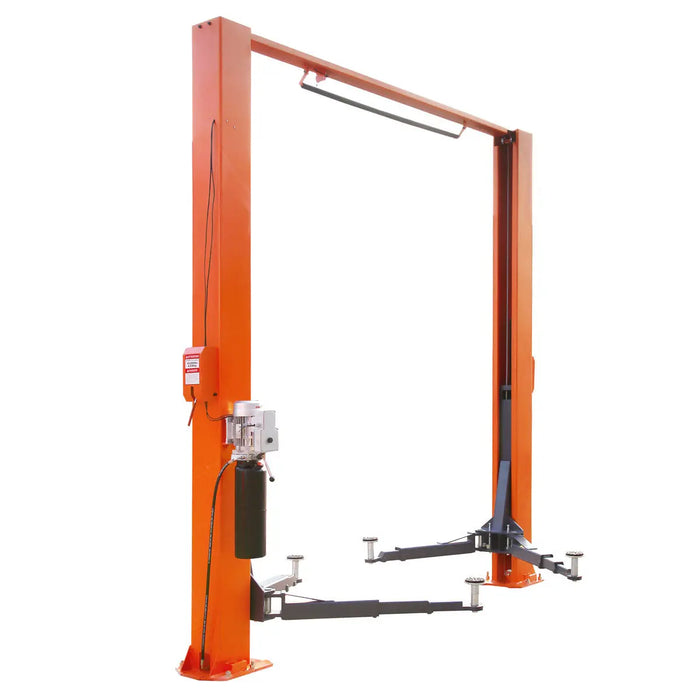

The TMG-ALT100 Two-Post Overhead Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 72" lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. An overhead cross member design keeps all hydraulic, steel cable and electrical lines protected while clearing the bottom for free space between the columns.

Symmetric telescopic reach arms on each side provide versatile support positions to accommodate all the unique makes and models you may be working on. Self-lubricated carriage sliders along the columns and automatic arm restraints reduce wear on the lift and will give you long lasting performance with lower operating costs and maintenance expenses.

Dual hydraulic chain-drive cylinders power ⅜" industrially strengthened steel cables that are fed through the columns and overhead to give you the force needed for smooth, efficient lift operation. This lift features an automatic overhead stop switch to maximize safety and has an overall heavy-duty, commercial construction that is strong, solid and built to last.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

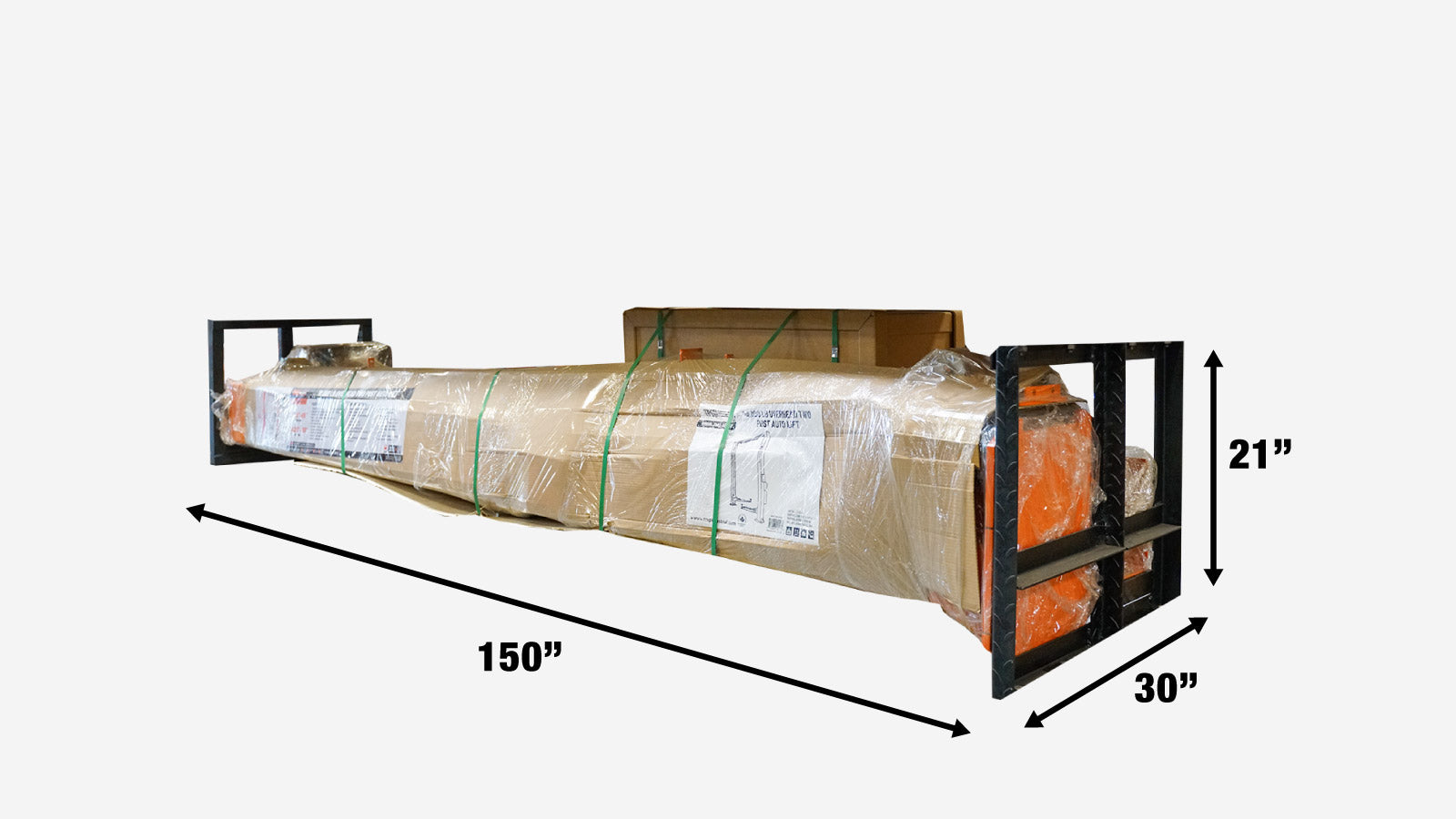

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 150” x 30” x 21”
  • Shipping weight: 1630 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
