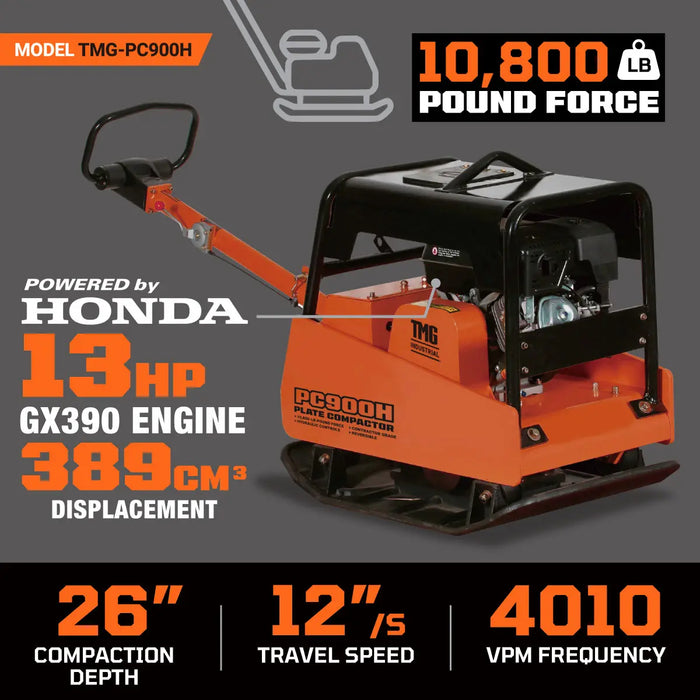

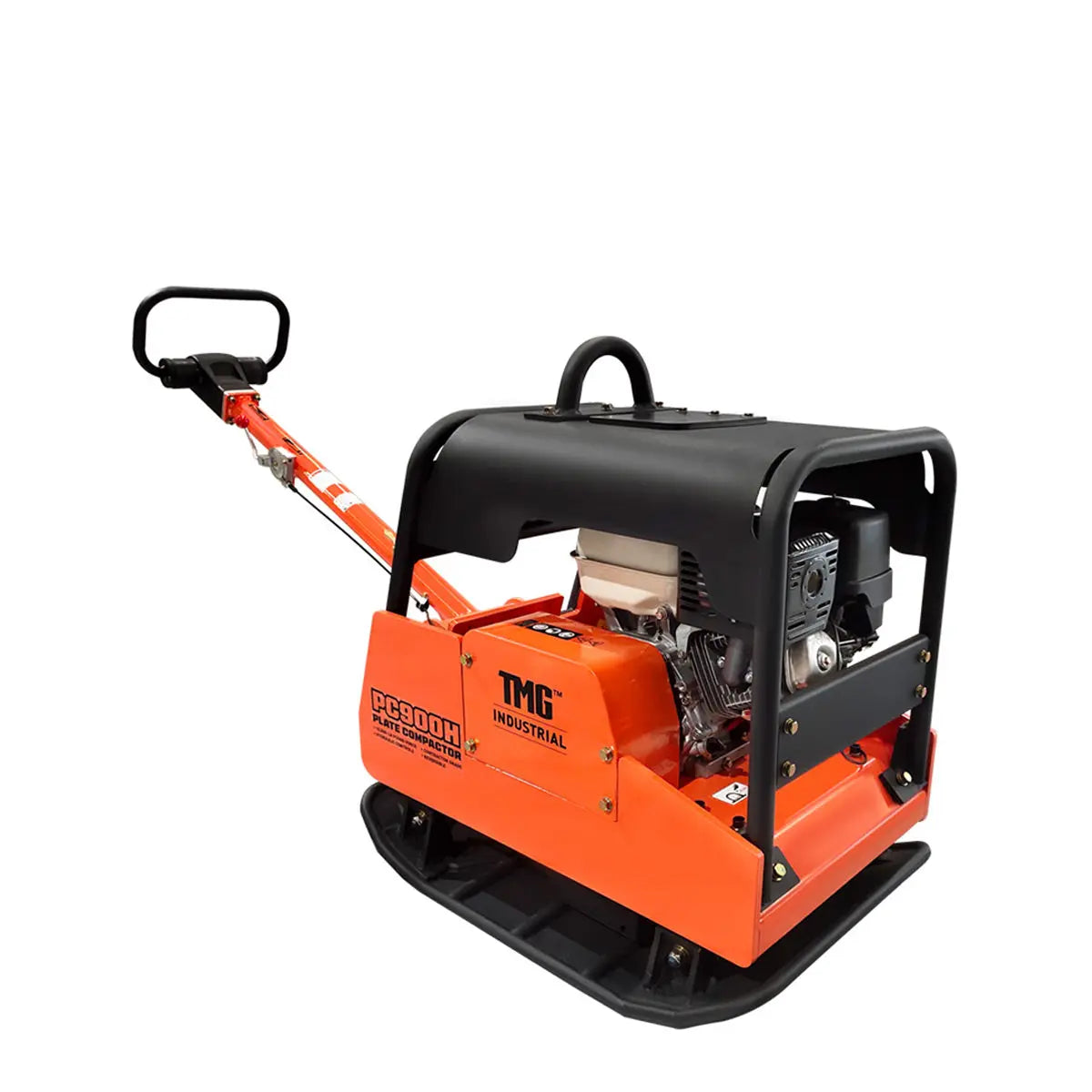

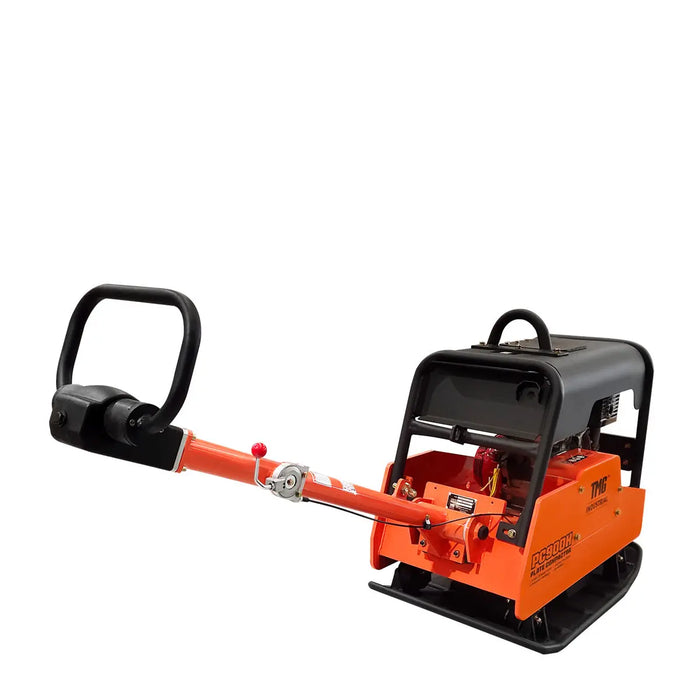

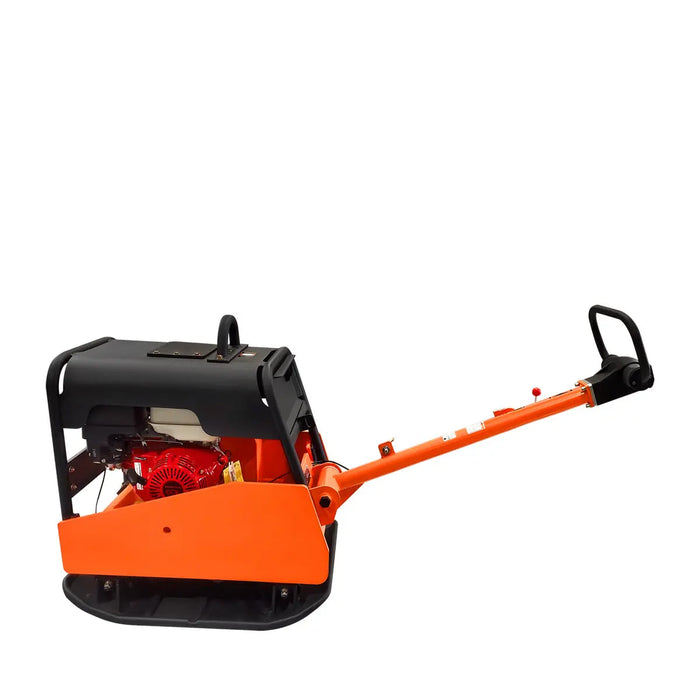

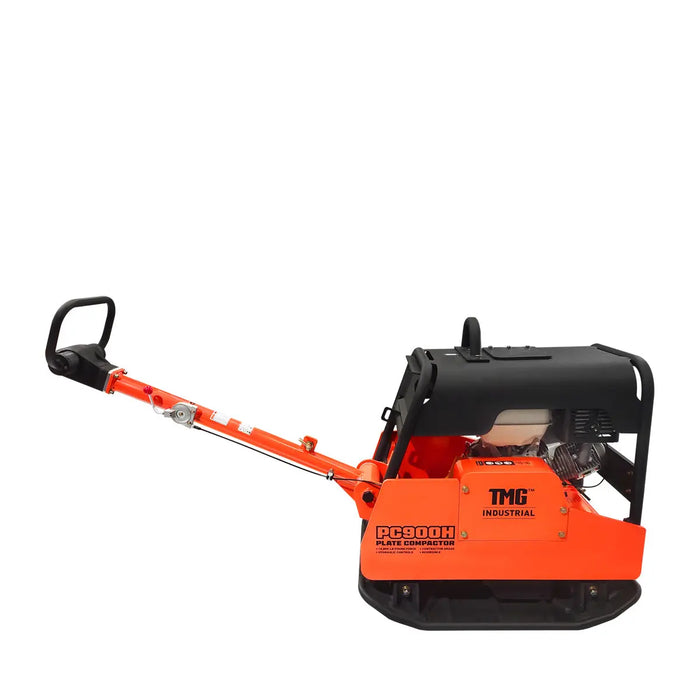

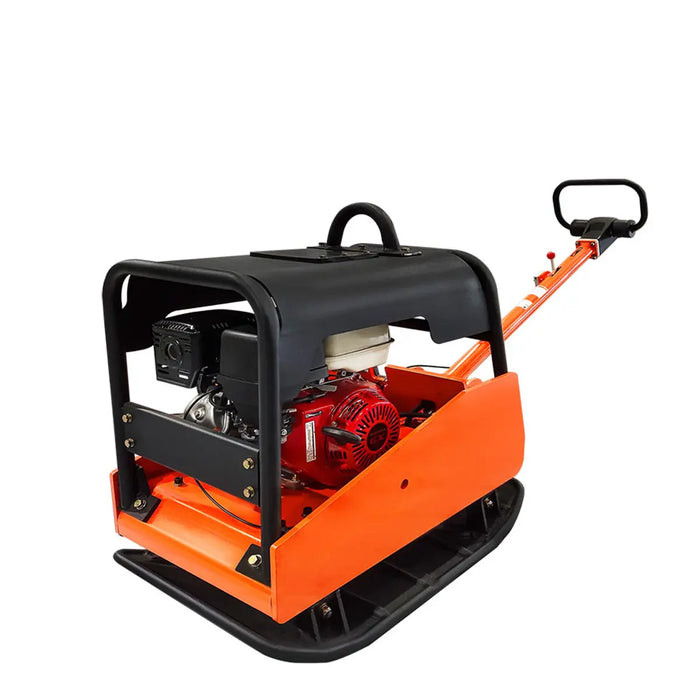

10,800-lb Reversible Hydraulic Plate Compactor, 13 HP Honda GX390 Engine, 400-kg Net Weight , Hydraulic Control, TMG-PC900H
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Powered by a reliable gasoline GX390 13 HP EPA Honda engine that provides plenty of power (10,800 lb), known for its durability and long lifespan
- Designed to provide reversible compaction, allowing you to work in both forward and reverse, making it easier to maneuver in tight spaces; improves efficiency

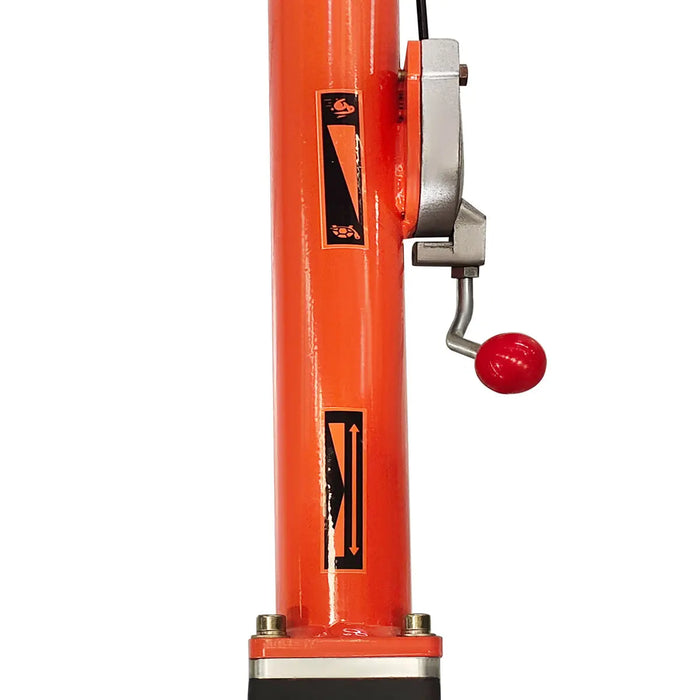

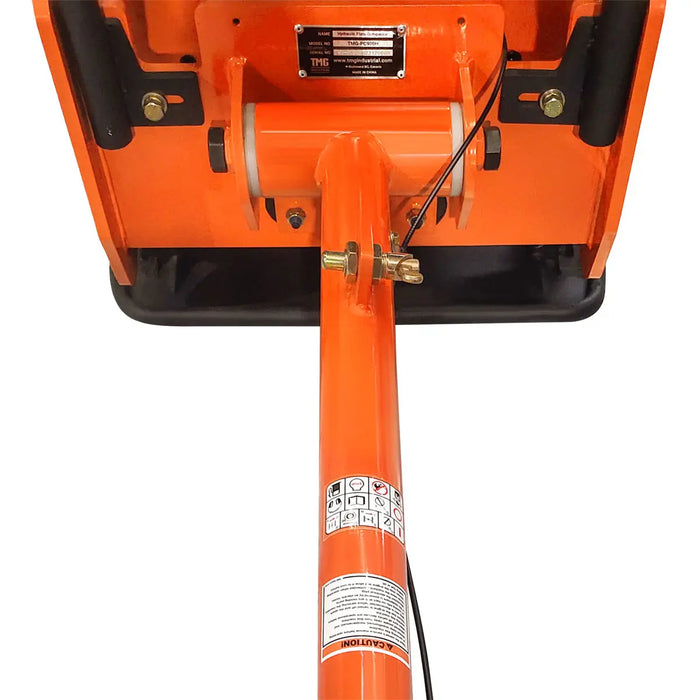

- The hydraulic controls for forward and reverse movements make it easy to operate the compactor plate with precision and accuracy; also helps to reduce operator fatigue

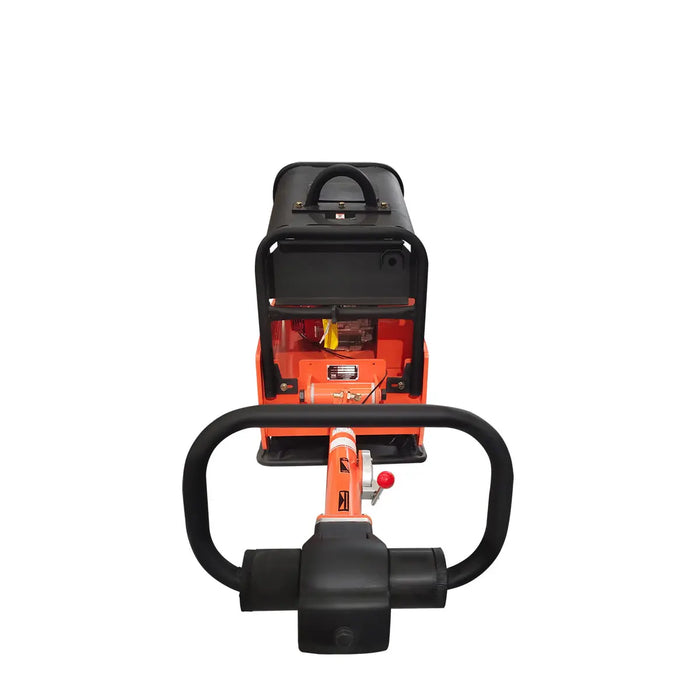

- Low-vibration operating bar reduces load on the operator, allowing for more comfortable and efficient handling during long-term use of the machine

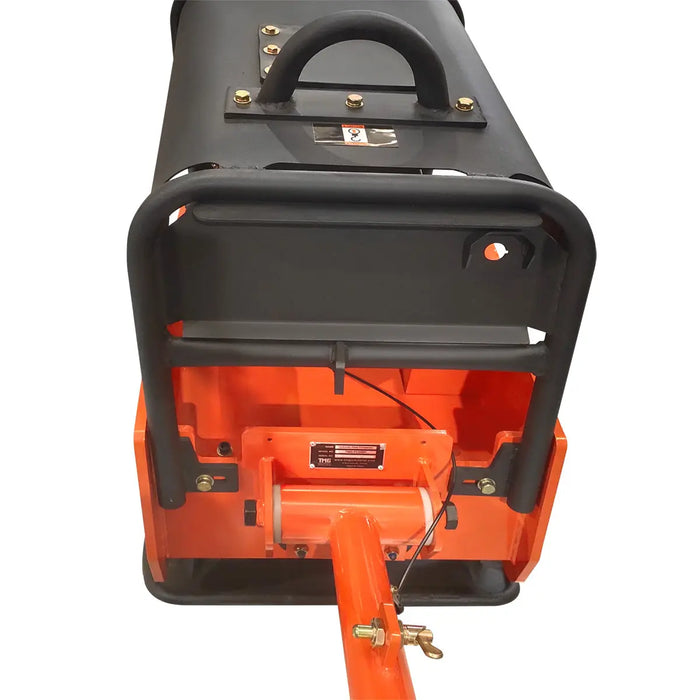

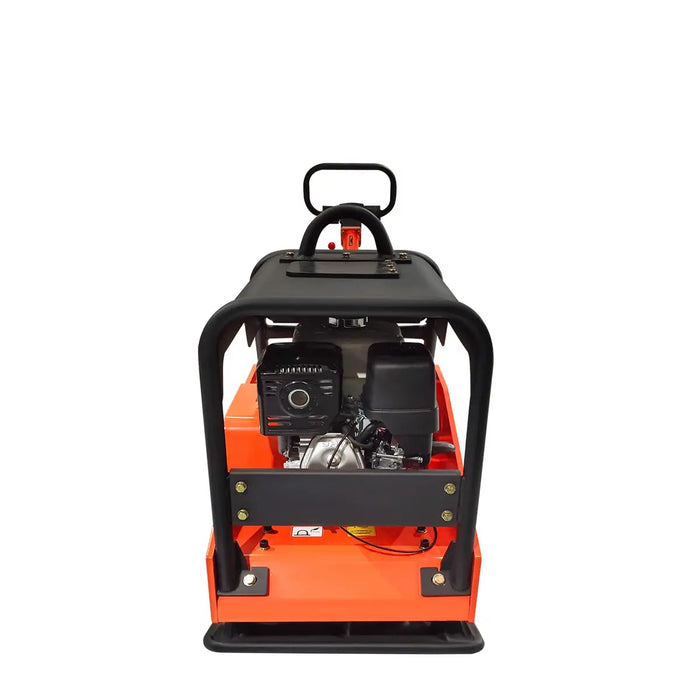

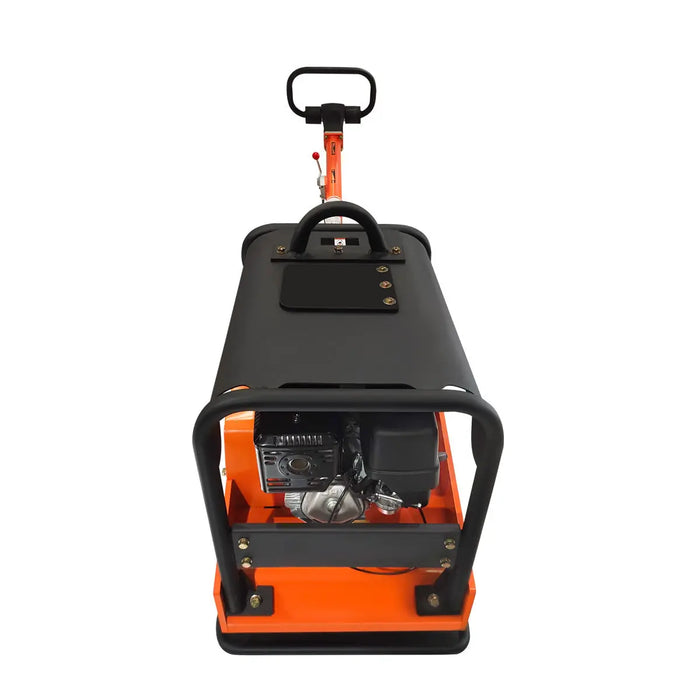

- A protection frame guard helps to protect the engine and other components during operation, reducing the risk of damage and improving safety on the job site
- High centrifugal force on both forward and reverse compaction ensures efficient, reliable performance and consistent compaction results
- Large plate size is enough to cover a significant surface area in each pass, and the extension edges included also help to save time on the job
Specifications
Specifications
- Pound force: 10,800 lb (48 kn)
- Compaction depth: 26”
- Travel speed: 12”/s
- Frequency:4010 VPM
- Plate size w/ extension side edges (included): 36” x 24” (L x W)
- Net weight: 400 kg
- Make: Honda GX390
- Power: 13 HP
- Engine Type: Air-cooled 4-stroke OHV
- Bore x stroke: 3-½” x 2-½”
- Displacement: 389 cm3
- Net power output: 11.7 HP (8.7 kW) @ 3600 rpm
- Net torque: 19.5 lb-ft (26.4 Nm) @ 2500 rpm
- Fuel tank capacity: 6.1 liters (6.4 U.S. qts)
- Starting system: Recoil
- Lubrication system: Splash
- Oil Capacity: 1.1 liters (1.16 U.S. qts)
Engine
Product Description
Product Description

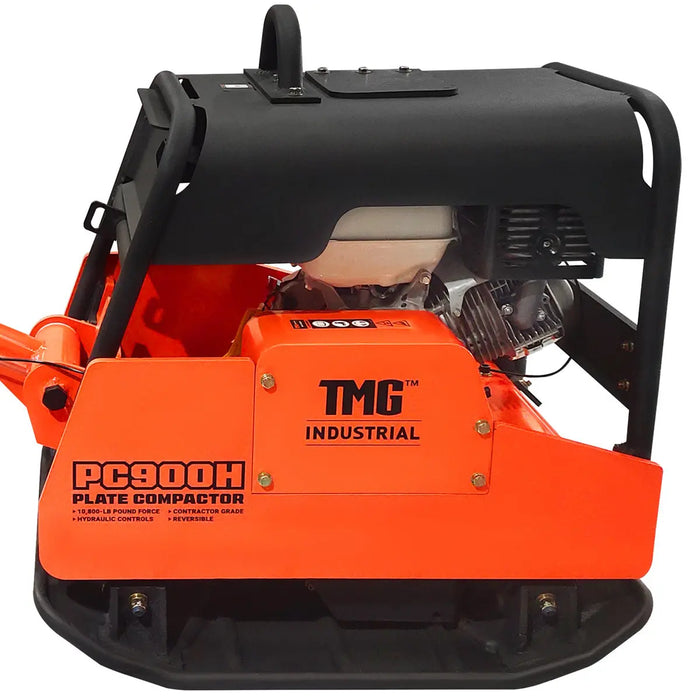

The TMG-PC900H 10,800-lb Reversible Hydraulic Plate Compactor is powered by a Honda GX390 EPA gasoline engine. With 13 horsepower at your fingertips, this compactor packs a serious punch. A pounding force of 10,800 lb and compaction depth of 26" inches means it can tackle even the most challenging surfaces and heavy-duty commercial jobs. Ideal for professional contractors who want to save time and money on large scale operations.
The hydraulic controls for forward and reverse movements makes it easy to operate even under the tremendous power this machine produces. A low-vibration operating bar makes it comfortable to use for extended periods, while the high centrifugal force and 4010 VPM frequency guarantees efficient, reliable, and consistent performance.
With a large compaction plate and travel speeds of 12" per second, this piece of equipment offers fast, efficient, and reliable compaction over large areas in a shortened amount of time. The industrial 400 kg frame comes equipped with a protective guard, is designed for comfort, sturdy, and built to handle your toughest jobs and work conditions for years to come.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 40” x 27” x 64” (L x W x H)
- Shipping weight: 930 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
