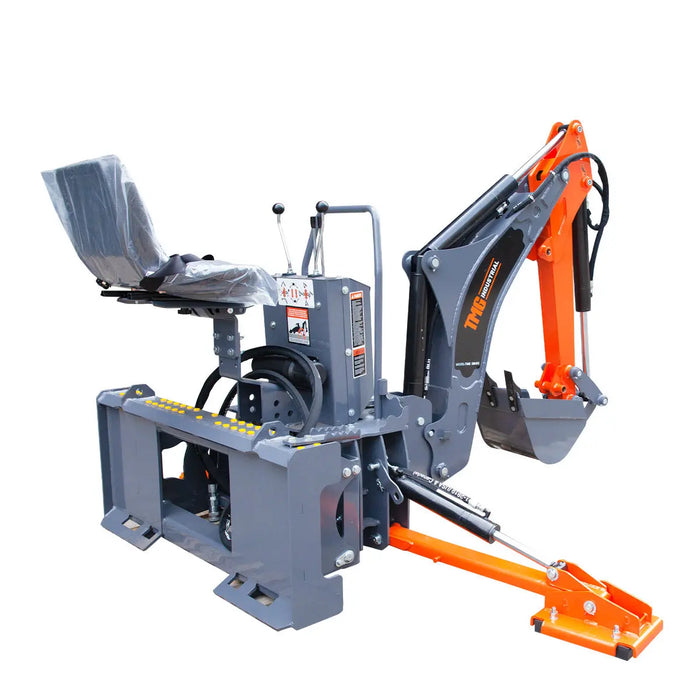

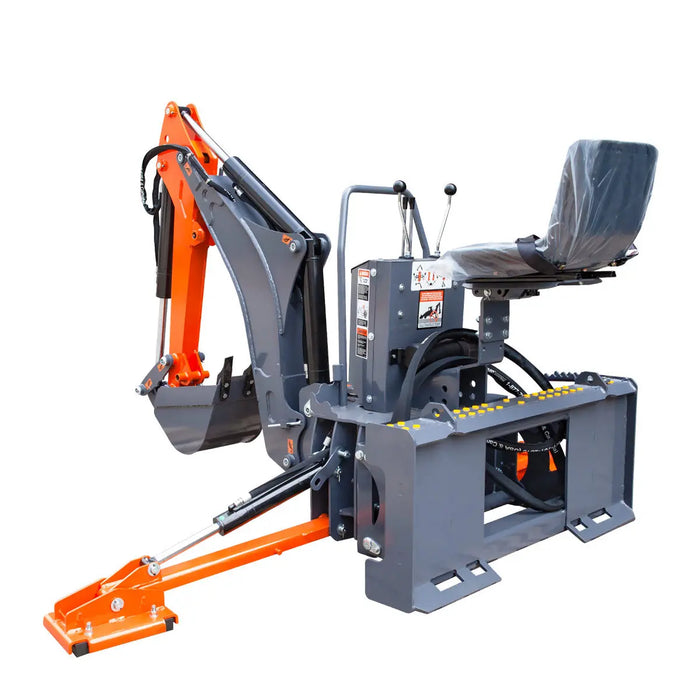

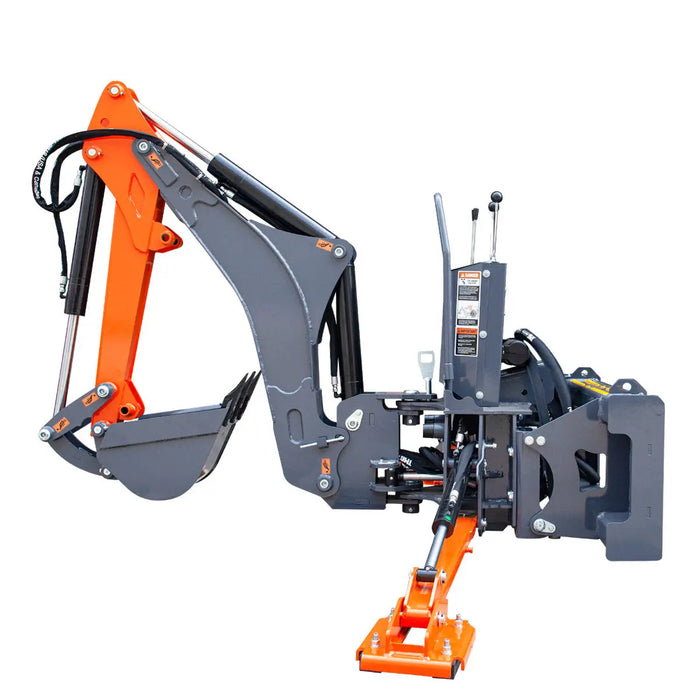

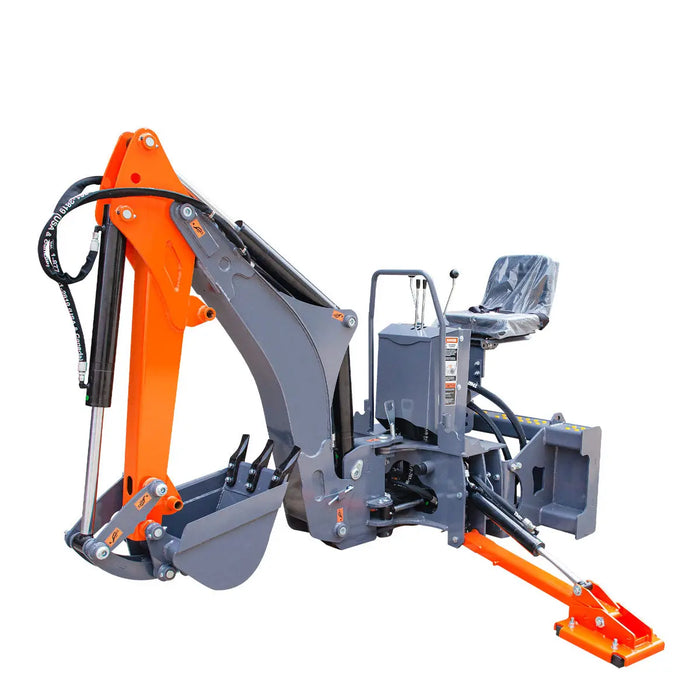

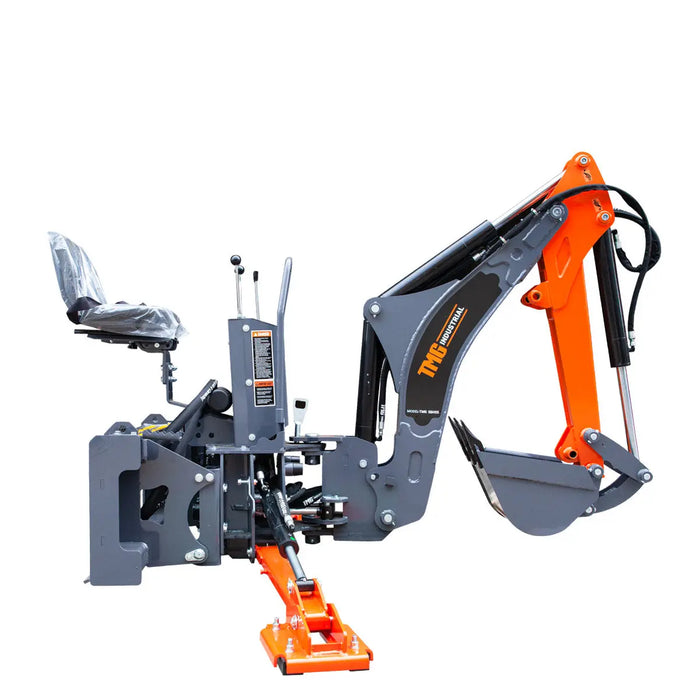

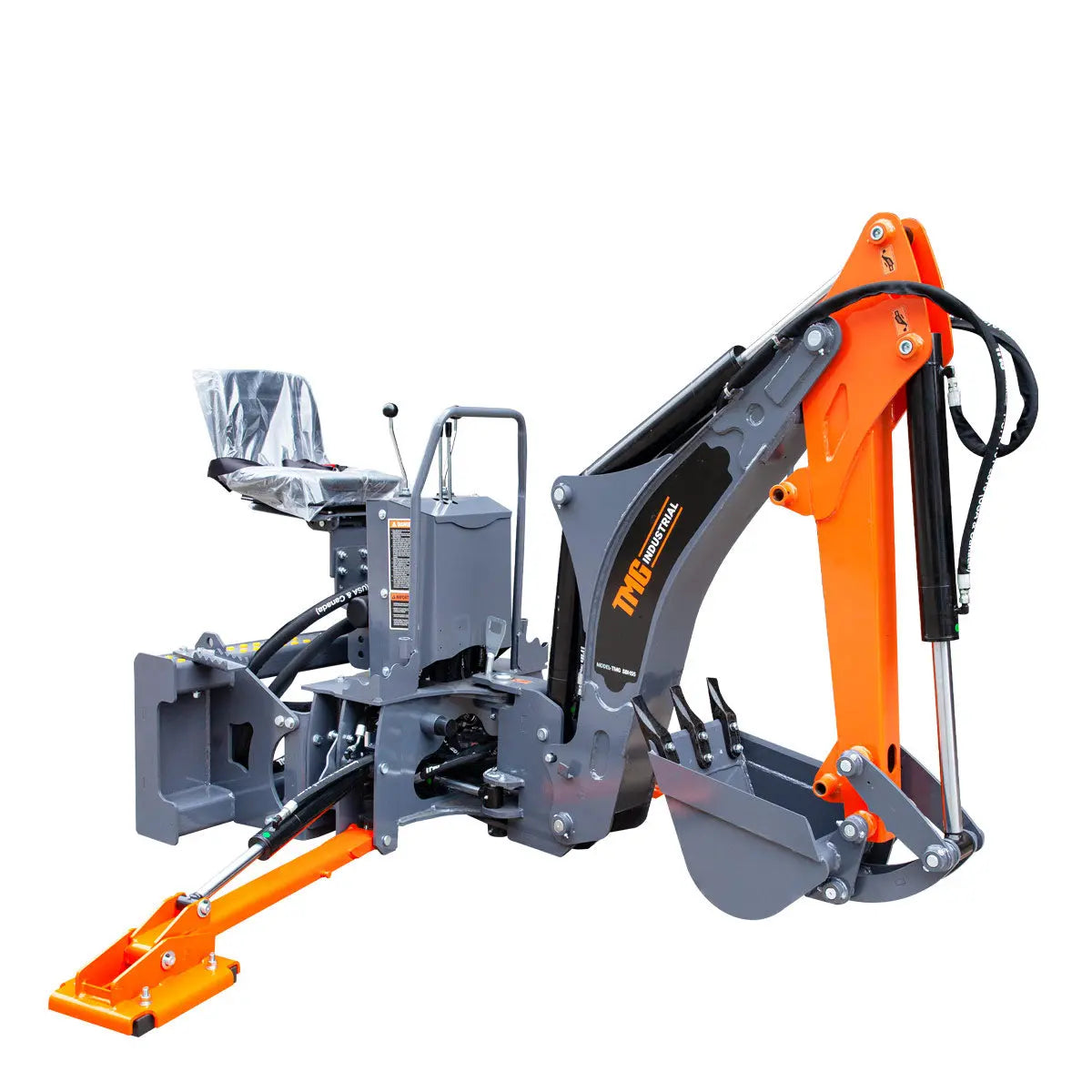

8-ft Skid Steer Swing Backhoe Attachment, 30-60 HP Skid Steers, Italian Hydraulic Control Valves, 12" Bucket, TMG-SBH55
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
Specifications
Specifications

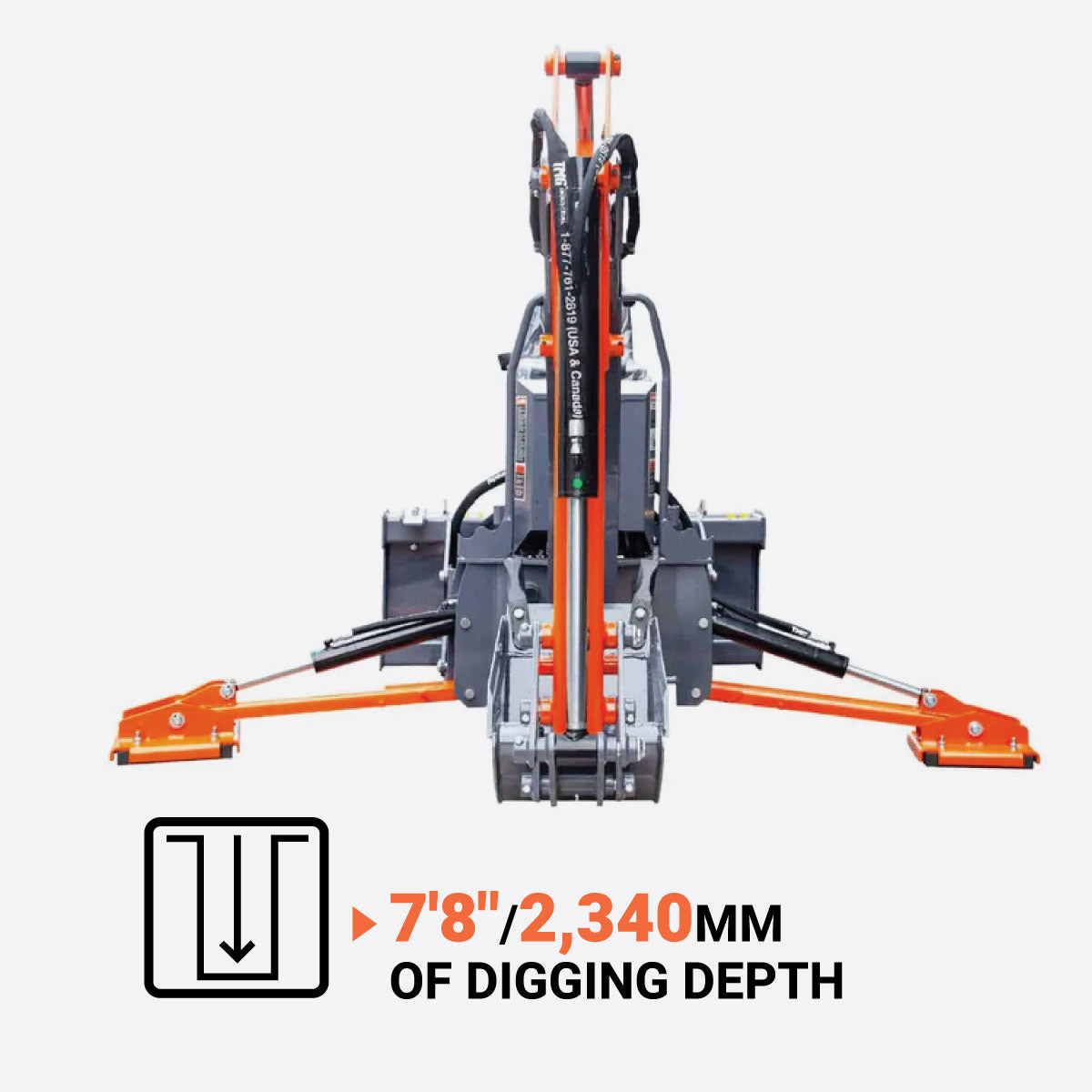

- Digging depth (2 ft. flat bottom): 7’8”
- Overall operating height (fully raised): 112”
- Reach from swing post: 118”
- Loading height (bucket at 60° rotation) 72”
- Dipper boom digging force: 2054 lb
- Bucket digging force: 3187 lb
- Transport height (with boom fully retracted): 72”
- Transport width (with stabilizers up): 58”
- Transport length: 71”
- Ground clearance: 10”-12”
- Transport weight (base unit only-no bucket or mounts): 820 lb
- Bucket rotation: 180°

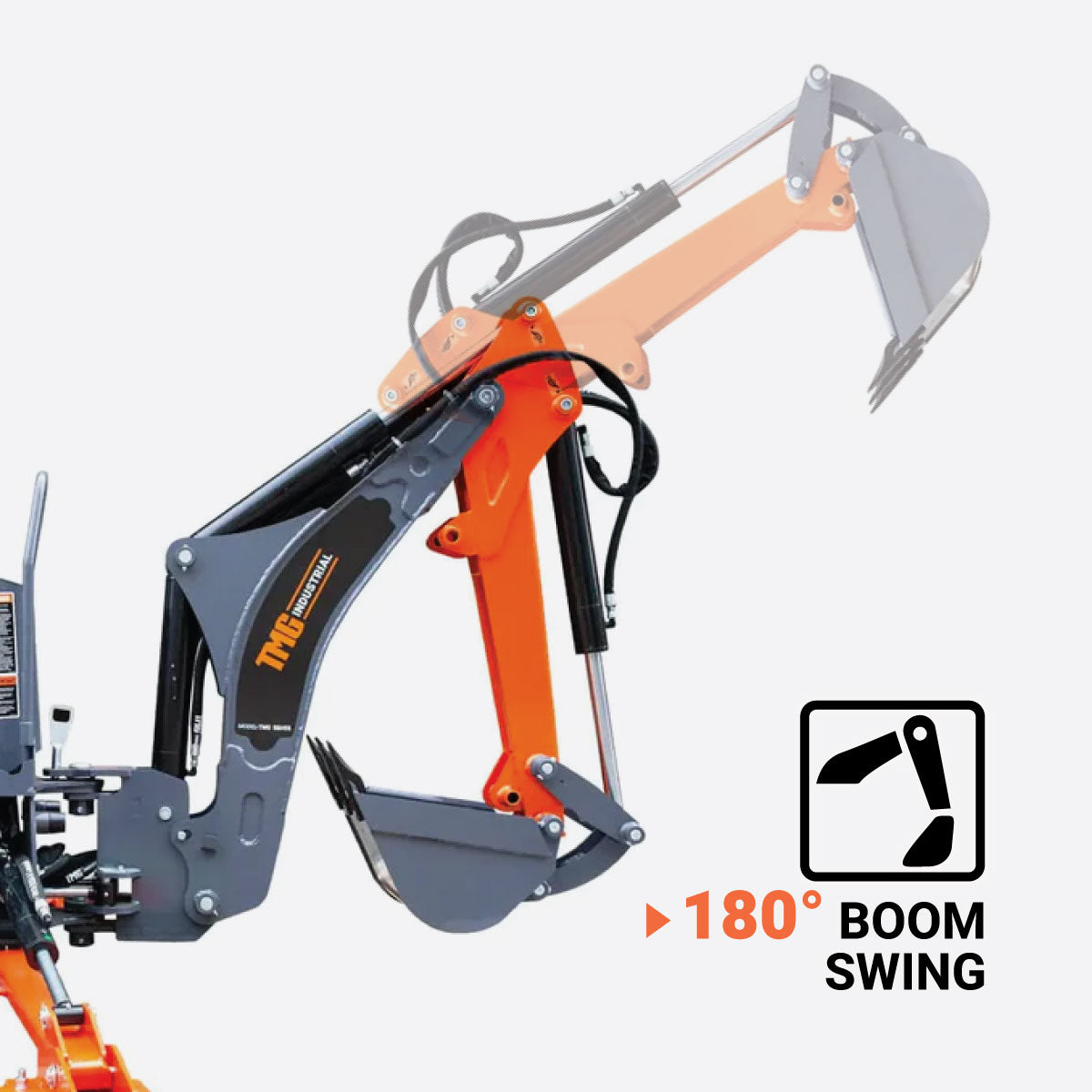

- Swing arc: 180°
- Stabilizer width (Spread): 88”
- Stabilizer width (Transport): 58”
- Operating pressure: 2320 PSI
- Hydraulic volume requirements: 5-7 GPM
- Recommended skid steer requirements: 30-60HP
- Flow divider included: Yes
- Bucket sizes available: 12”
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 75” x 29” x 49” (L x W x H)
- Shipping weight: 1325 lb
Product Description
Product Description

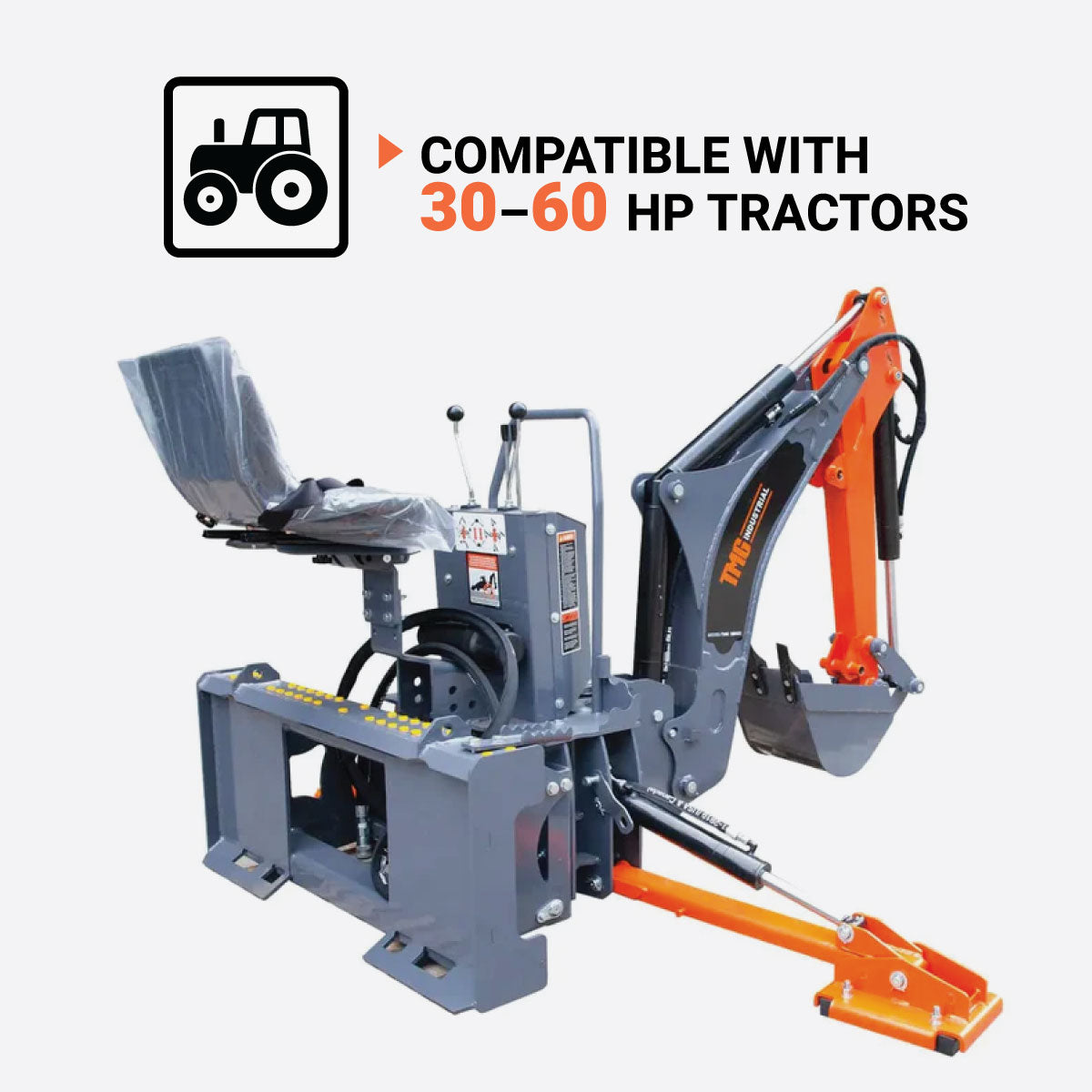

The TMG-SBH55 8-ft Skid Steer Swing Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 7'8", it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30-60 HP skid steers, it comes complete with a 12" bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.

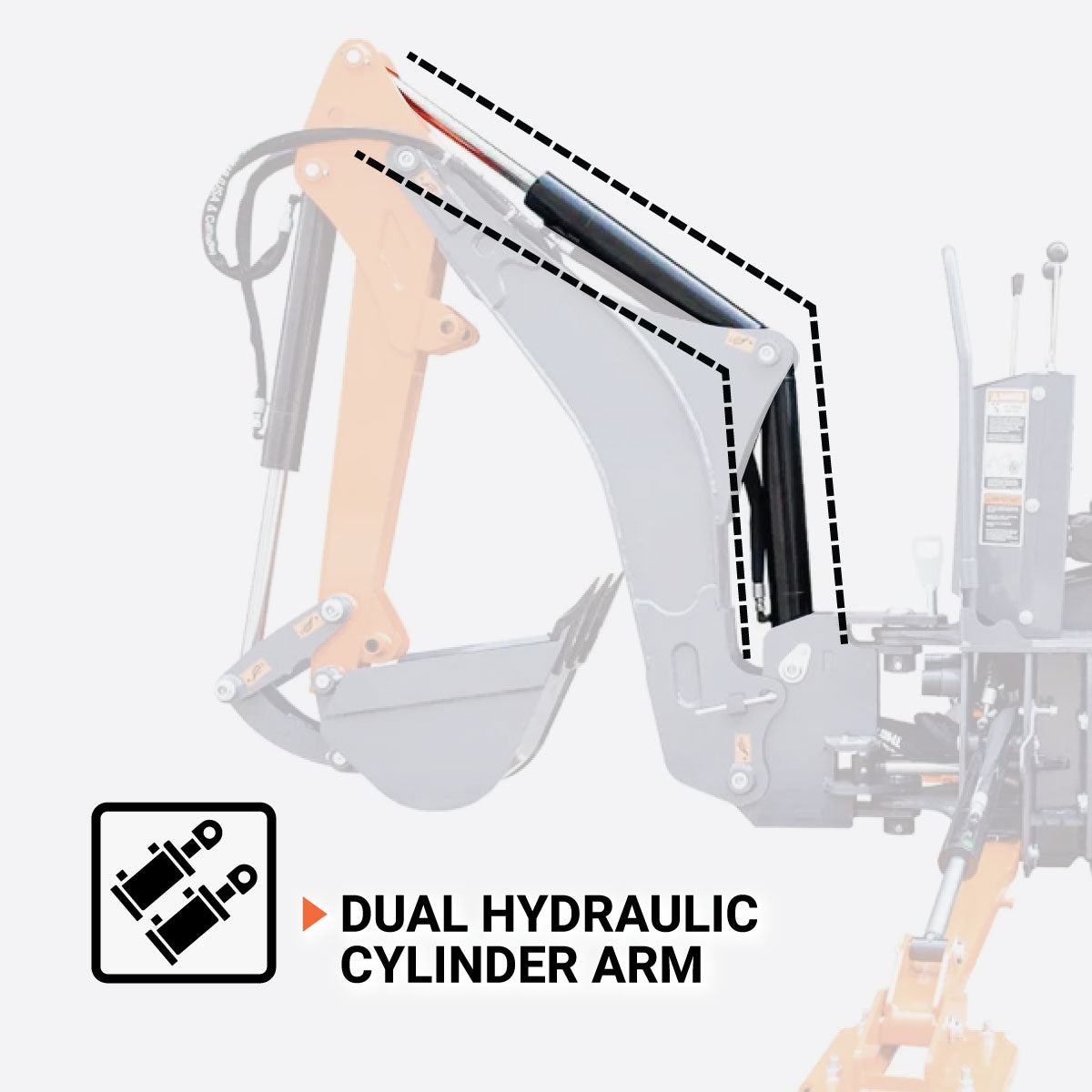

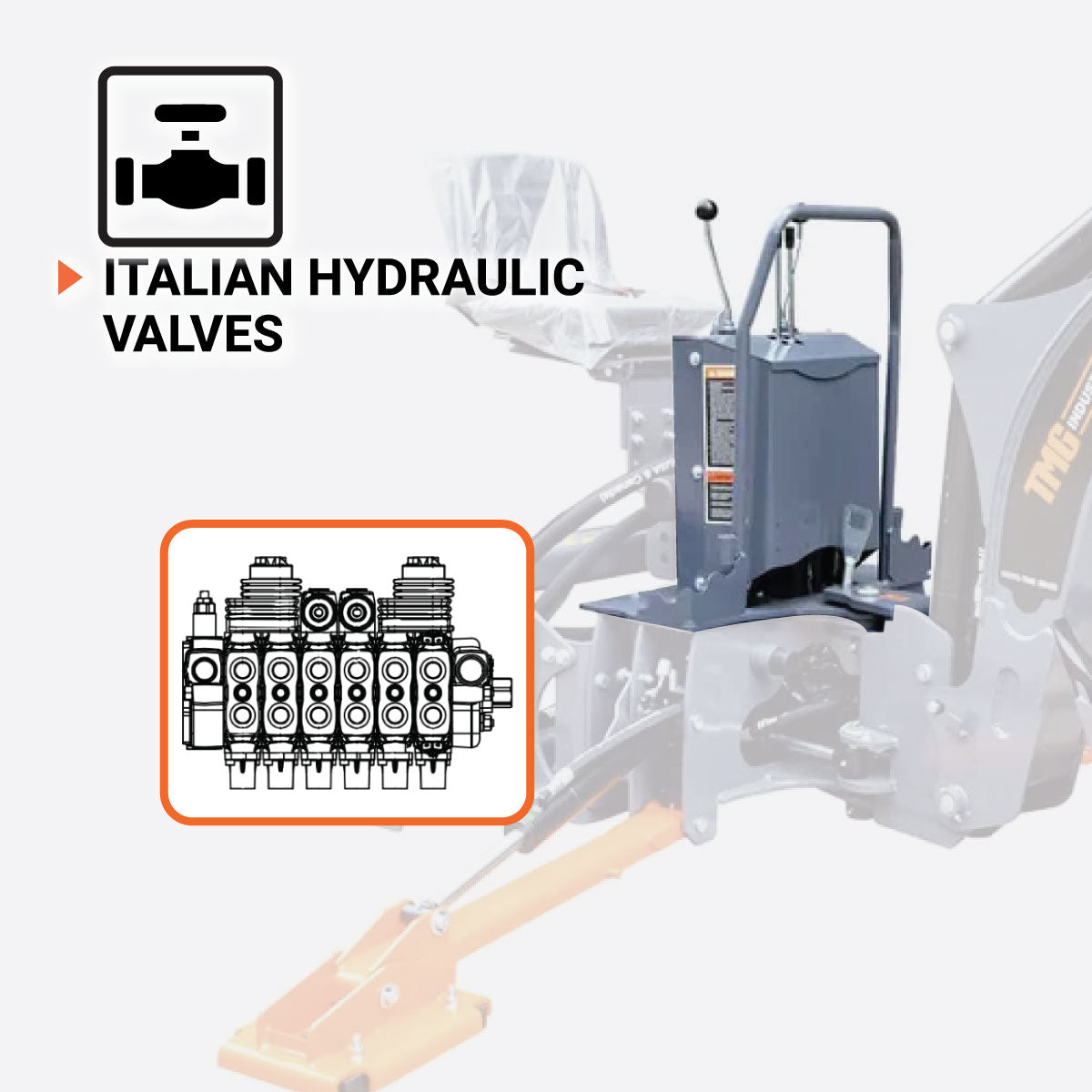

What sets the TMG-SBH55 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.

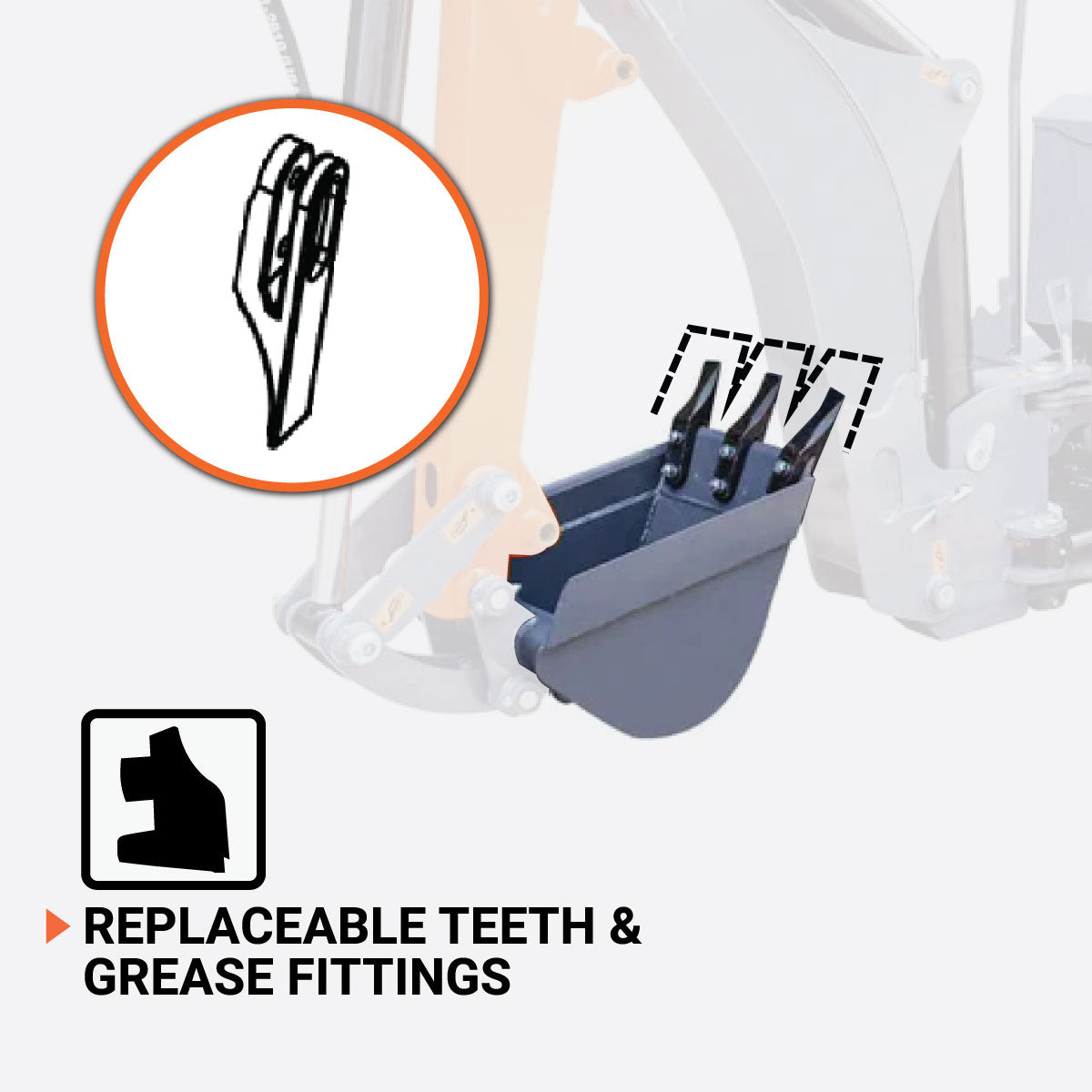

Maintenance is made simple with replaceable bushings, bolt-on cast teeth, and grease fittings on all pivot points. The removable/replaceable rubber street pads on the stabilizer legs reduce damage to surfaces, while open seat visibility and foldable stabilizers ensure you stay in place and maintain a clear view of your work area at all times.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |  | |
|---|---|---|
| Skid Steer Backhoe Attachment | ||
Skid Steer Power Required |
|
|
Mount Type |
|
|
Hydraulic Flow Rate |
|
|
Hydraulic Pressure |
|
|
Hydraulic Hoses & Flat Face Couplers |
|
|
Hydraulic Flat Face Couplers Spec |
|
|
Number of Hydraulic Hoses |
|
|
Hydraulic Hoses Diameter |
|
|
Bucket Rotation Degree |
|
|
Swing Arc |
|
|
Max. Digging Depth |
|
|
Max. Working Height |
|
|
Max. Working Length |
|
|
Max. Loading height |
|
|
Stabilizer Width (Spread) |
|
|
Stabilizer Width (Transport) |
|
|
Ground Clearance |
|
|
Bucket Size |
|
|
Bucket Capacity |
|
|
Dipper Boom Digging Force |
|
|
Bucket Digging Force |
|
|
Bucket and Boom Dig Simultaneously |
|
|
Surface Finish |
|
|
Overall Dimension |
|
|
Net Weight |
|
|
