84" Skid Steer Rock Skeleton Grapple Attachment, Universal Mount, 36" Arm Opening, 6" Tine Spacing, 2500 lb Weight Capacity, TMG-SG84
FREE
shipping to most locations in
USA
Learn More
Features
Features
- Grapple capacity up to 2500 lb to handle jobs in demolition, recycling, scrap yards, forestry, agriculture and more
- 84” of working width and open end design allows you to work with varying sizes of logs, brush and awkward debris
- Twin hydraulic cylinder grapple arms (with guards) operate under 3000 PSI of pressure for a heavy-duty working capacity
- Greasable pins and bushings for simple routine maintenance that ensures this attachment’s long lasting lifespan and dependability
- Skeleton tine bottom and ½” serrated cutting edges for debris sifting of loose material so you can focus on moving bulkier loads
- Included hydraulic hoses for simple hookup and efficient energy transfer between the grappler and skid steer
- Universal mount that will fit most skid steers, turning it into a multi-use, versatile jobsite asset that is strong and reliable
Specifications
Specifications
- Compatible with 30-70 HP skid steers
- Overall dimension: 84” (L) x 41” (W) x 31” (H)
- Working width: 84”
- Grapple capacity: 2500 lb
- Dual cylinders: 2-½” bore x 8” stroke
- Tine spacing: 6”
- Tine thickness: 3/8”
- Grapple arm opening: 36”
- Hydraulic pressure: 3000 PSI
- Flow rate: 12-24 GPM
- Twin hydraulic cylinder grapple arms with protective guards
- Universal skid steer mount
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 89” x 42” x 34” (L x W x H)
- Shipping weight: 880 lb
Product Description
Product Description

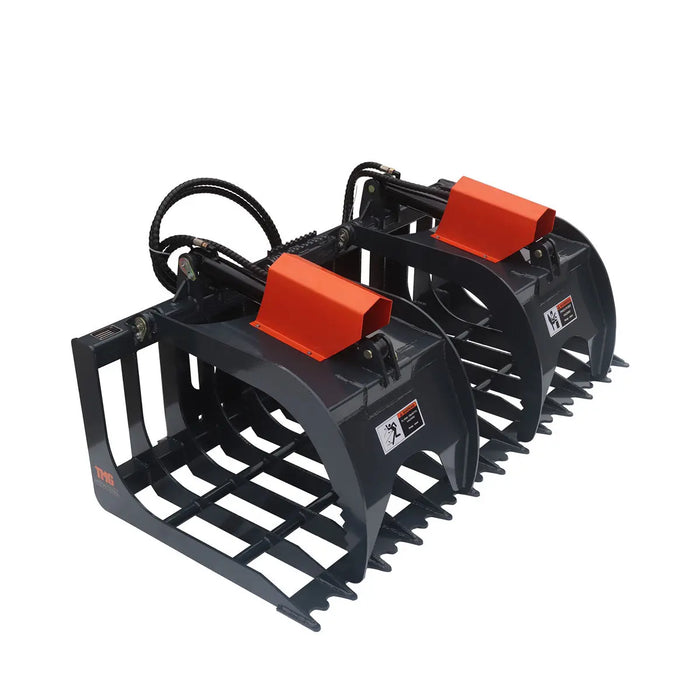

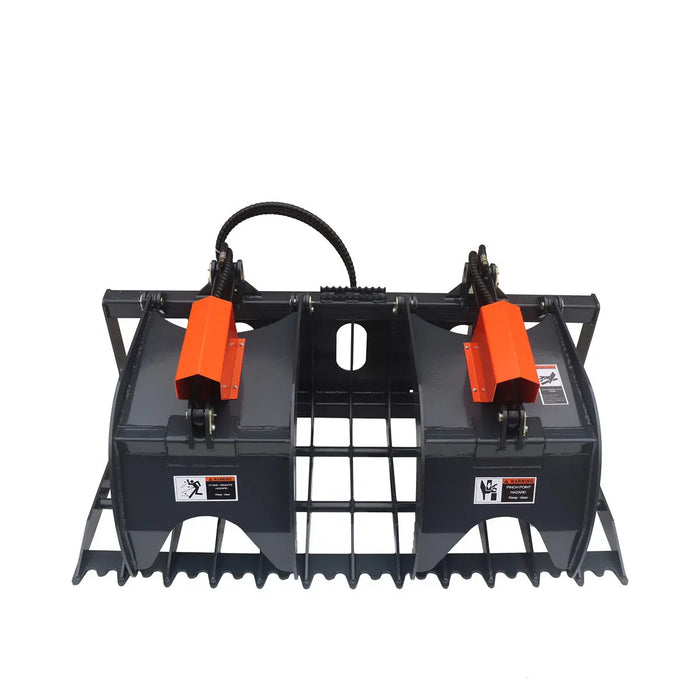

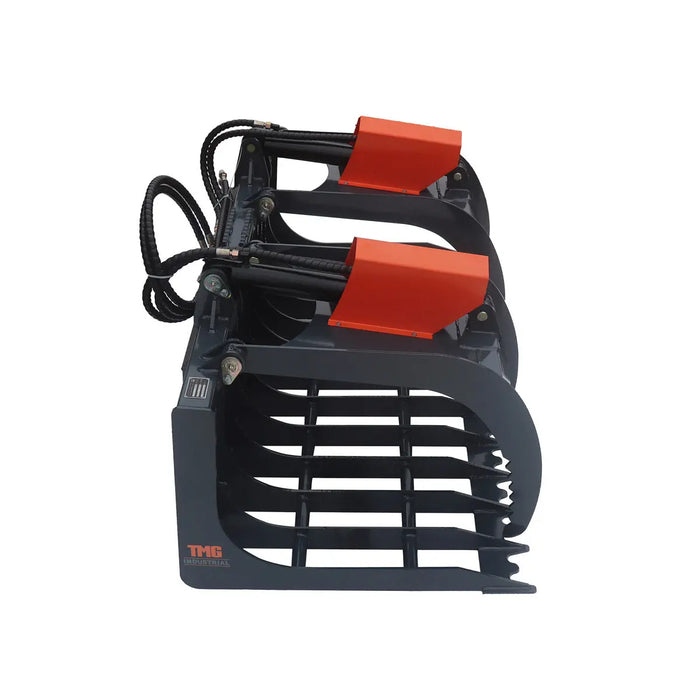

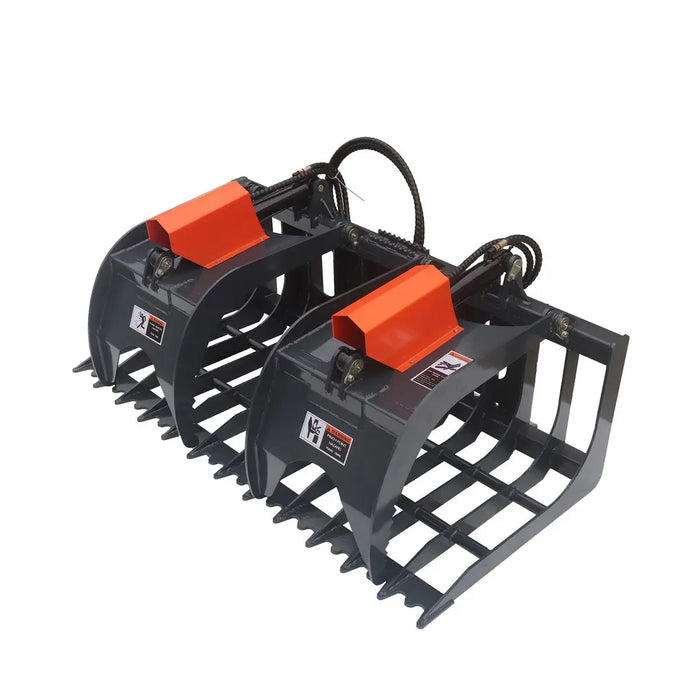

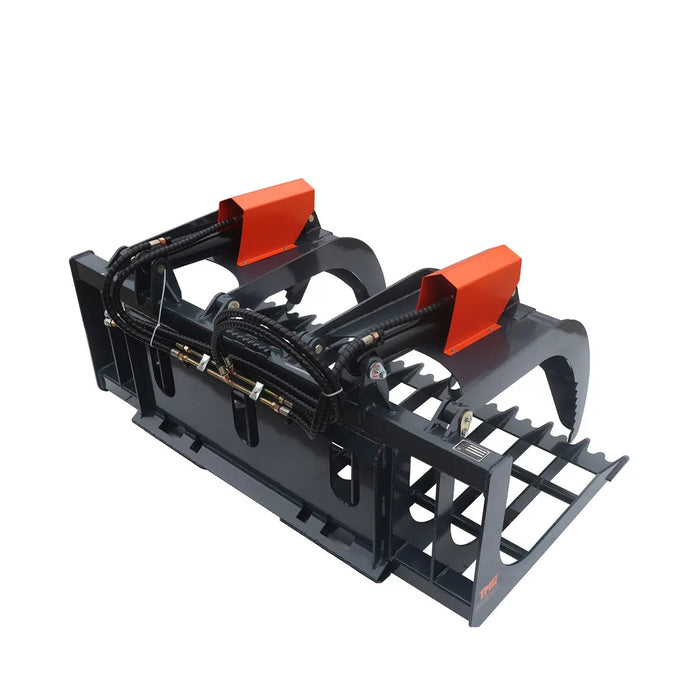

The TMG-SG84 Skid Steer Skeleton Rock Grapple features twin hydraulic cylinder arms that can produce a grappling capacity of up to 2500 lb. A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, rock raking, scrap metal sorting and any sort of moving chore around your acreage, farm or job site.
Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. A flat bottom build slides effortlessly over the ground leaving the surface undisturbed, and 3" x 3" primary frame beams create an overall heavy-duty construction that will work through the toughest projects and ensure you get the job done.
84" of working width offers diverse grappling capabilities on your farm, commercial property or worksite. The ½" serrated cutting edges and skeleton tine bottom design make it easy for loose debris to sift through so you can efficiently manage the transport of bulkier material. Built to last with greasable pins and bushings for easy routine maintenance, and comes with included flat-face couplers and hydraulic hoses.
We also carry a smaller model of this skeleton grapple attachment: TMG-SG72
