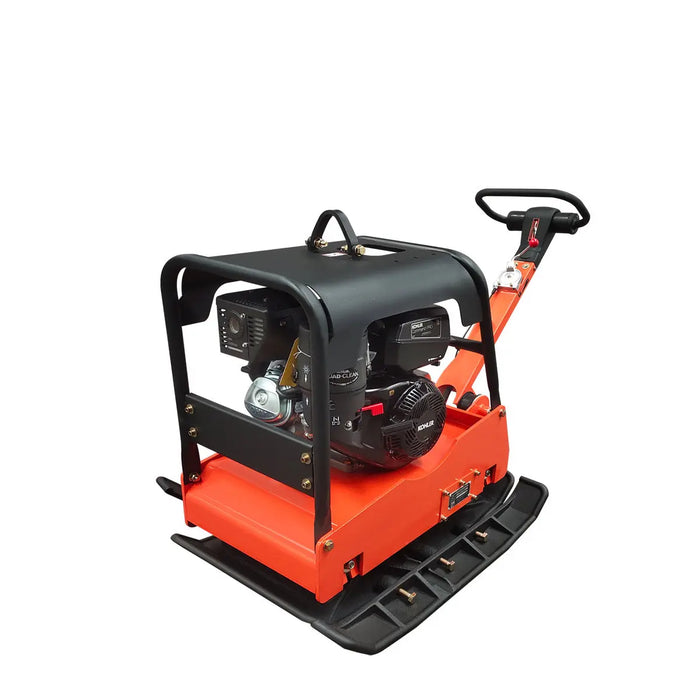

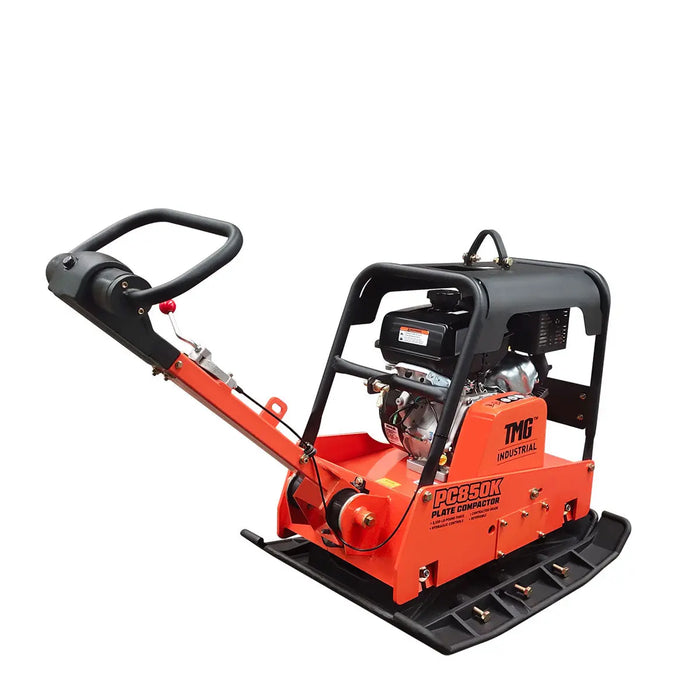

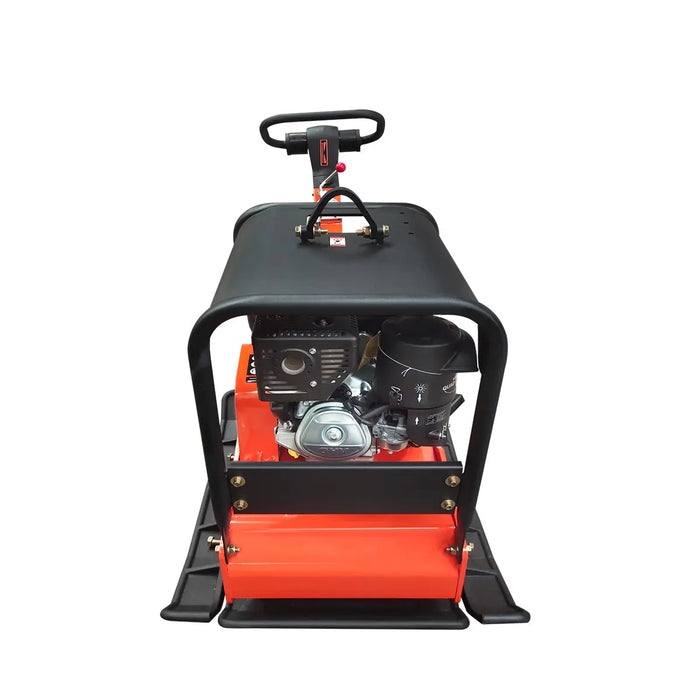

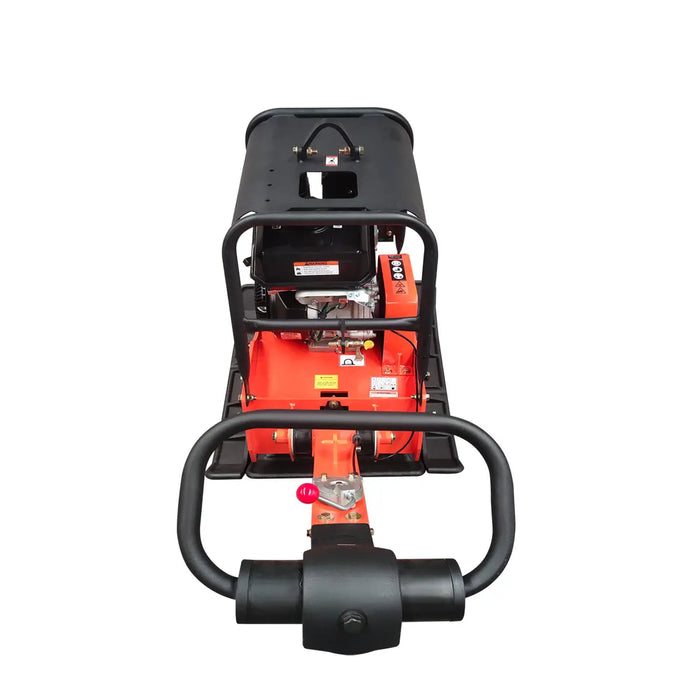

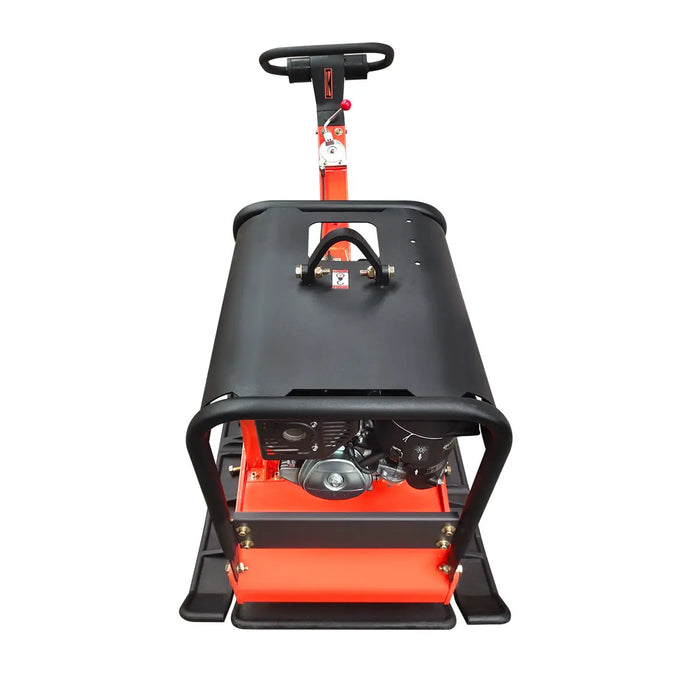

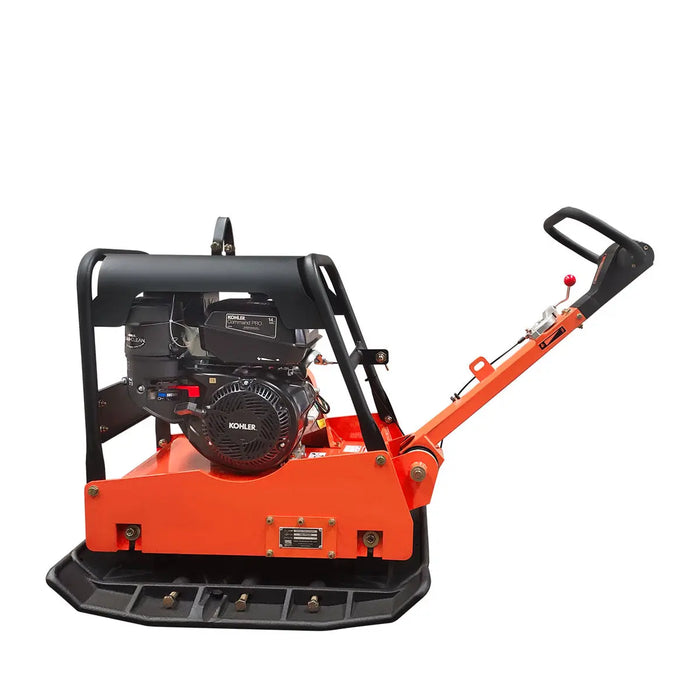

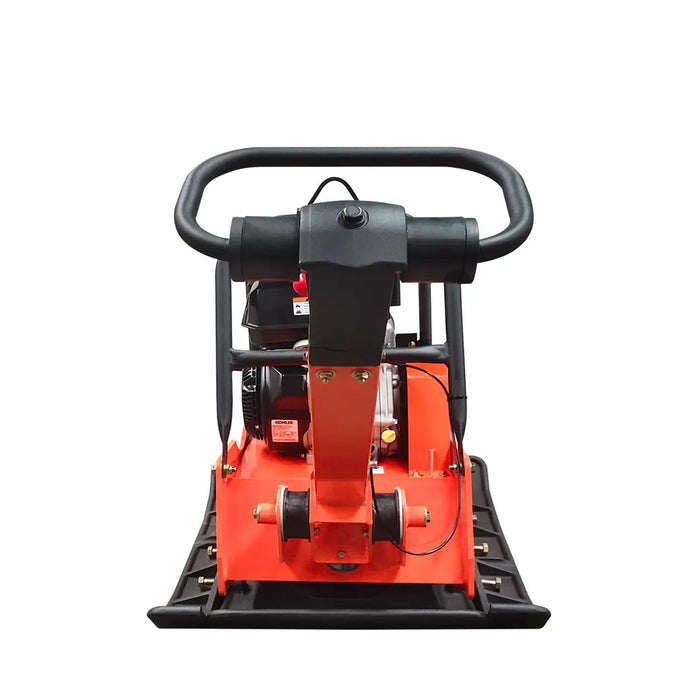

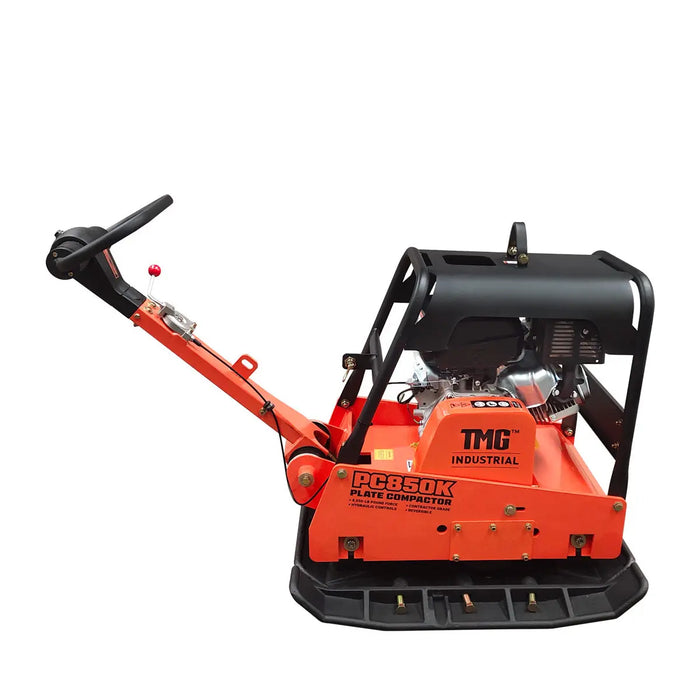

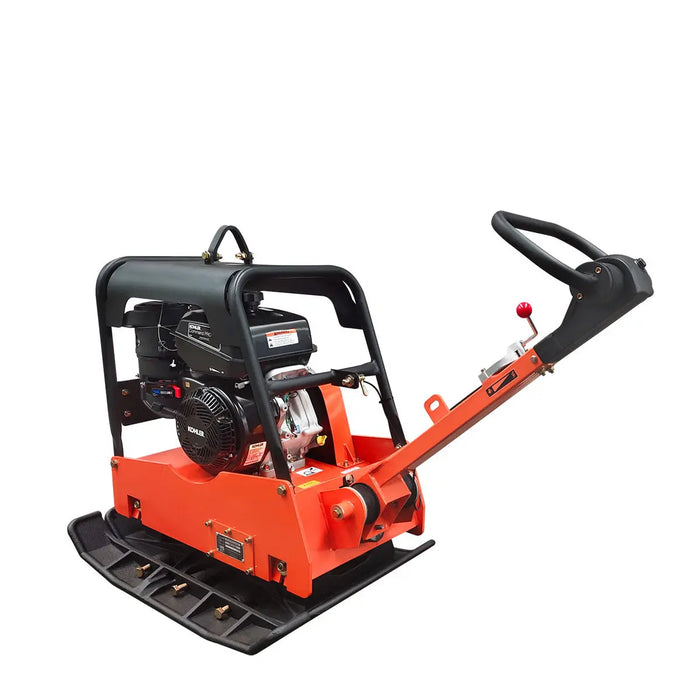

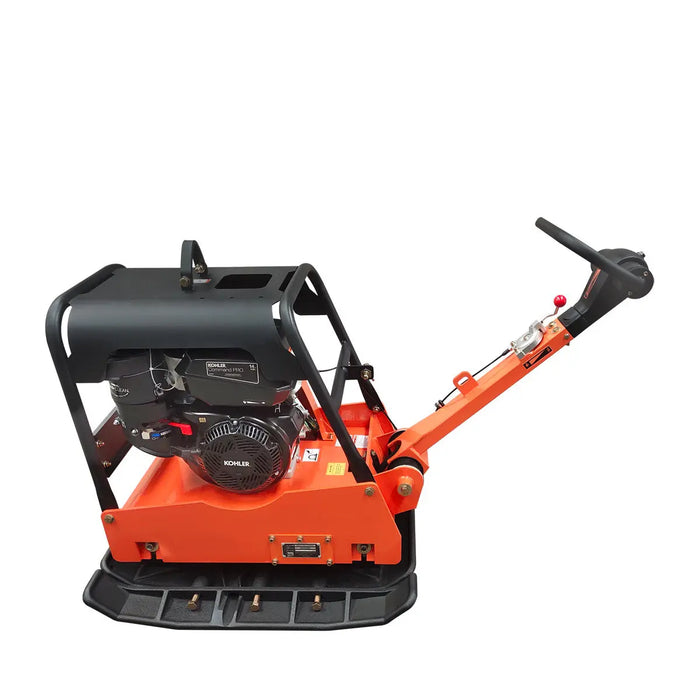

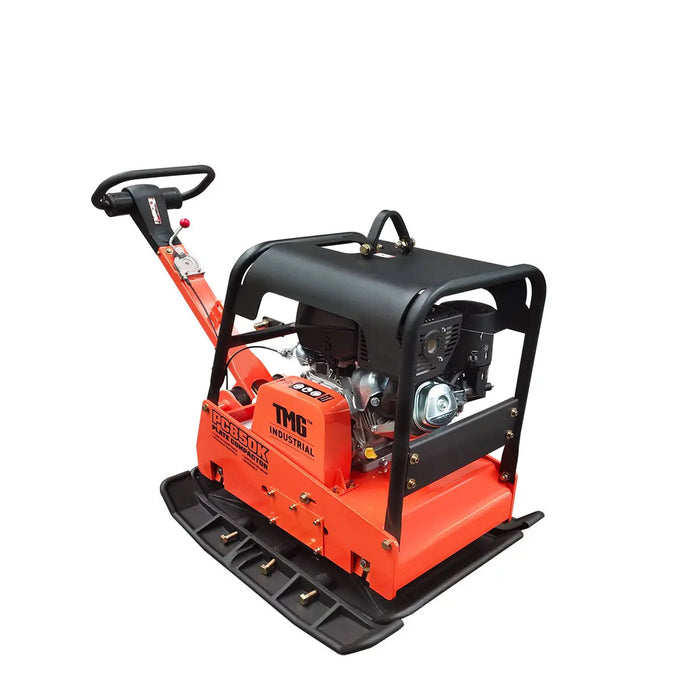

8,550-lb Reversible Hydraulic Plate Compactor (Discontinued – No Longer Available) TMG-PC850K
FREE
shipping to most locations in
USA
Learn More
Features
Features
- Powered by a reliable gasoline CH440 14 HP EPA Kohler engine that provides plenty of power (8,550 Ib), known for its durability and long lifespan
- Designed to provide reversible compaction, allowing you to work in both forward and reverse, making it easier to maneuver in tight spaces; improves efficiency
- The hydraulic controls for forward and reverse movements make it easy to operate the compactor plate with precision and accuracy; also helps to reduce operator fatigue
- Low-vibration operating bar reduces load on the operator, allowing for more comfortable and efficient handling during long-term use of the machine
- A protection frame guard helps to protect the engine and other components during operation, reducing the risk of damage and improving safety on the job site
- High centrifugal force on both forward and reverse compaction ensures efficient, reliable performance and consistent compaction results
- Large plate size is enough to cover a significant surface area in each pass, and the extension edges included also help to save time on the job
Specifications
Specifications
- Pound force: 8,550 lb (38 kn)
- Compaction depth: 34"
- Travel speed: 14"/s
- Frequency: 4800 VPM
- Plate size w/ extension side edges(included): 33" x 27" (Lx W)
- Net weight: 260 kg
- 14 HP Kohler CH440 Air-cooled 4-stroke OHV engine
- Bore x stroke: 3-½" x 2-¾"
- Displacement: 429 cm3
- Net power output: 14 HP (10.5 kW) @ 3600 rpm
- Net torque: 22.7 lb-ft (30.8 Nm) @ 2800 rpm
- Fuel tank capacity: 7 liters (7.4 U.S. qts)
- Starting system: Recoil
- Lubrication system: Splash
- Oil Capacity: 1.3 liters (1.4 U.S. qts)
Engine
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 35” x 26” x 50” (L x W x H)
- Shipping weight: 610 lb
Product Description
Product Description
The TMG-PC850K 8,550-lb Reversible Hydraulic Plate Compactor is powered by a Kohler CH440 Air-cooled 4-stroke OHV engine. With 14 horsepower at your fingertips, this compactor packs a serious punch. A pounding force of 8,550 lb and compaction depth of 34" inches means it can tackle even the most challenging surfaces and heavy-duty commercial jobs. Ideal for professional contractors who want to save time and money on large scale operations.
The hydraulic controls for forward and reverse movements make it easy to operate even under the tremendous power this machine produces. A low-vibration operating bar makes it comfortable to use for extended periods, while the high centrifugal force and 4800 VPM frequency guarantee efficient, reliable, and consistent performance.
With a large compaction plate and travel speeds of 14" per second, this piece of equipment offers fast, efficient, and reliable compaction over large areas in a shortened amount of time. The industrial 260 kg frame comes equipped with a protective guard, is designed for comfort, sturdy, and built to handle your toughest jobs and work conditions for years to come.
Warranty
Warranty
More Information
