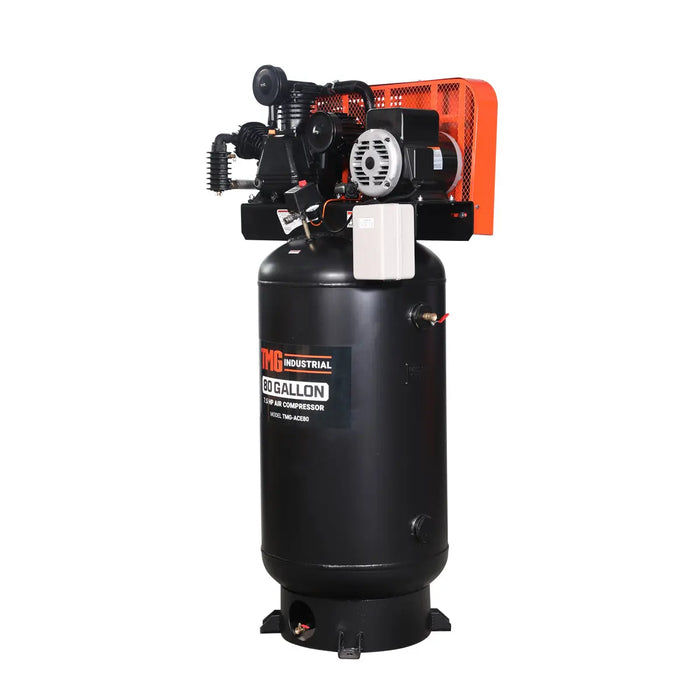

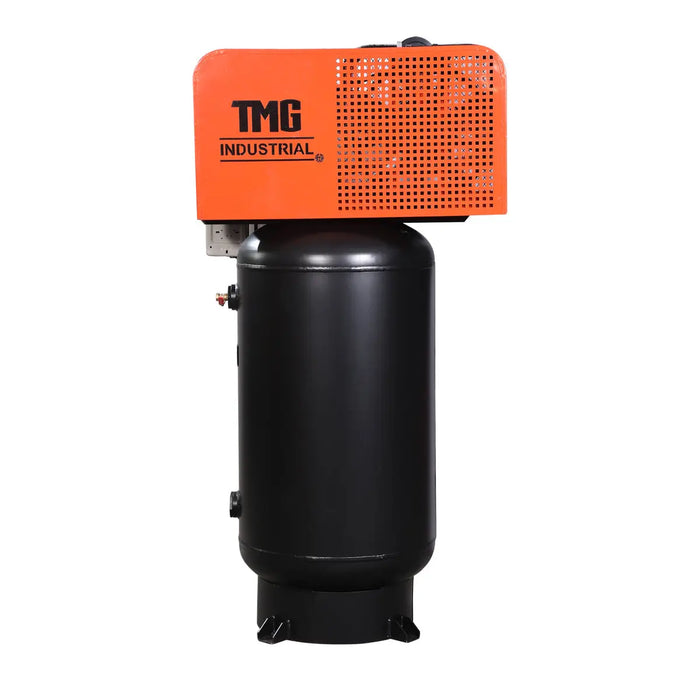

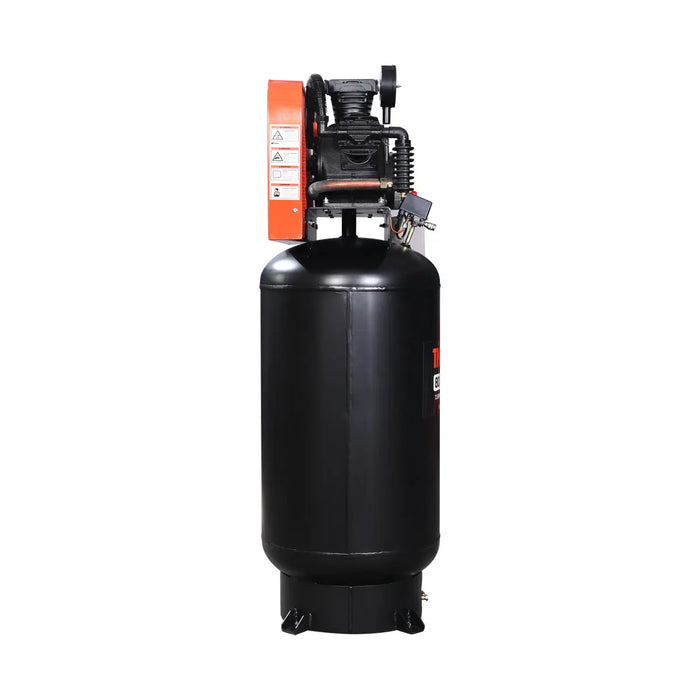

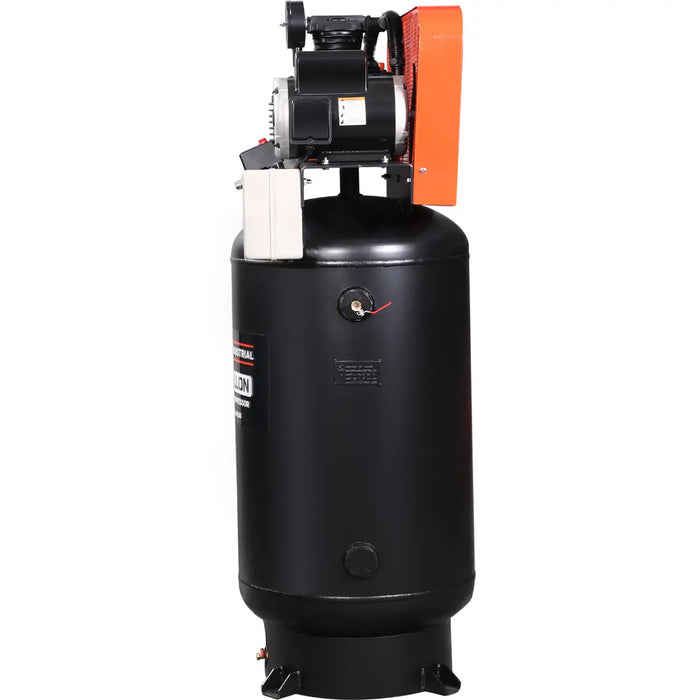

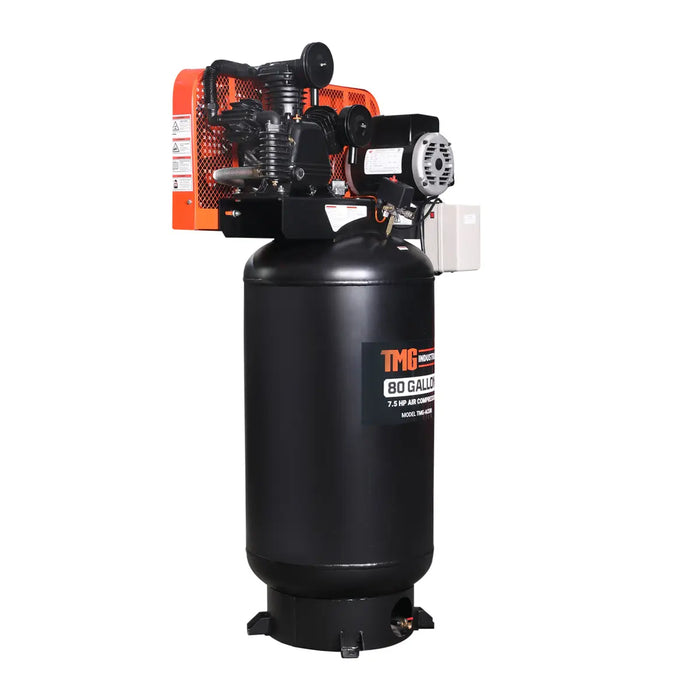

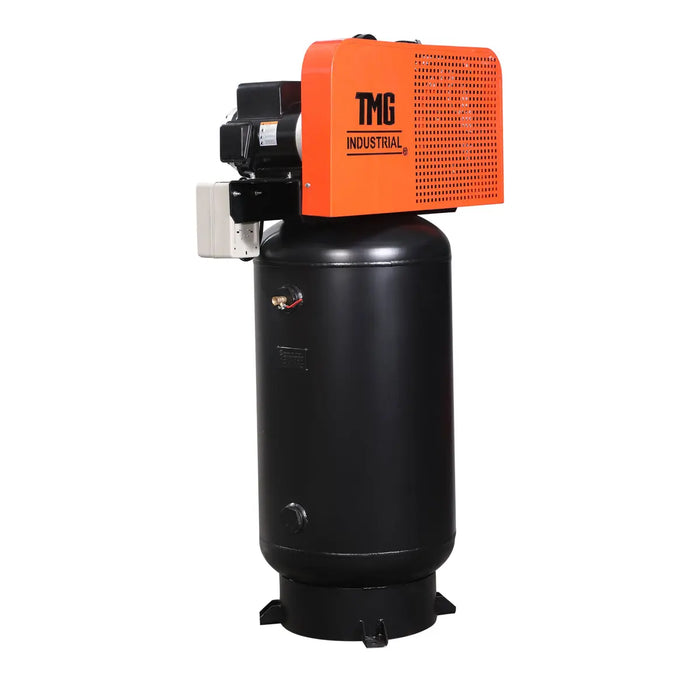

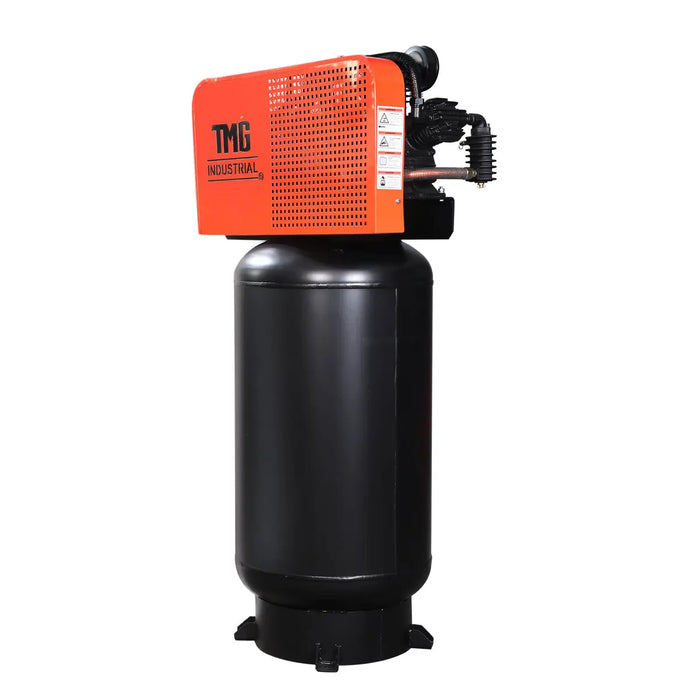

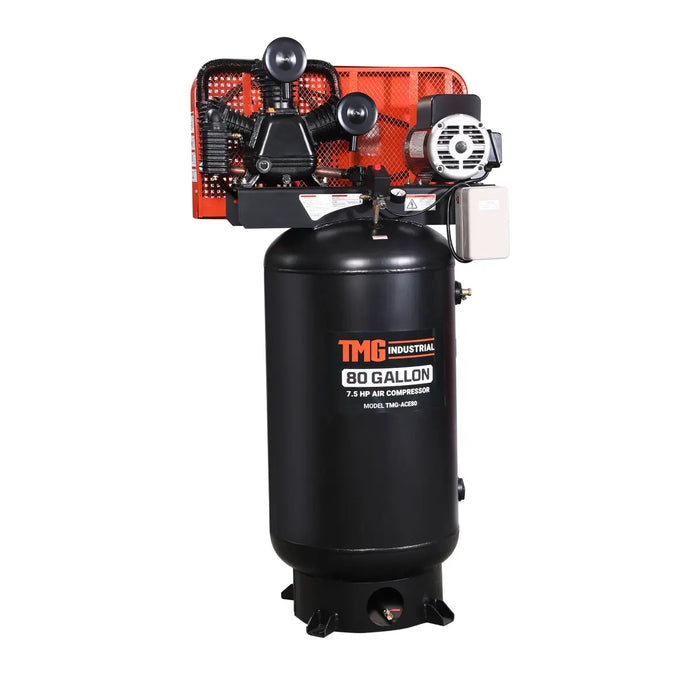

80 Gallon 7.5 HP Stationary Electric Air Compressor, 6 Min Fill Time, 230V Induction Motor, ASME Vertical Tank, TMG-ACE80
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop

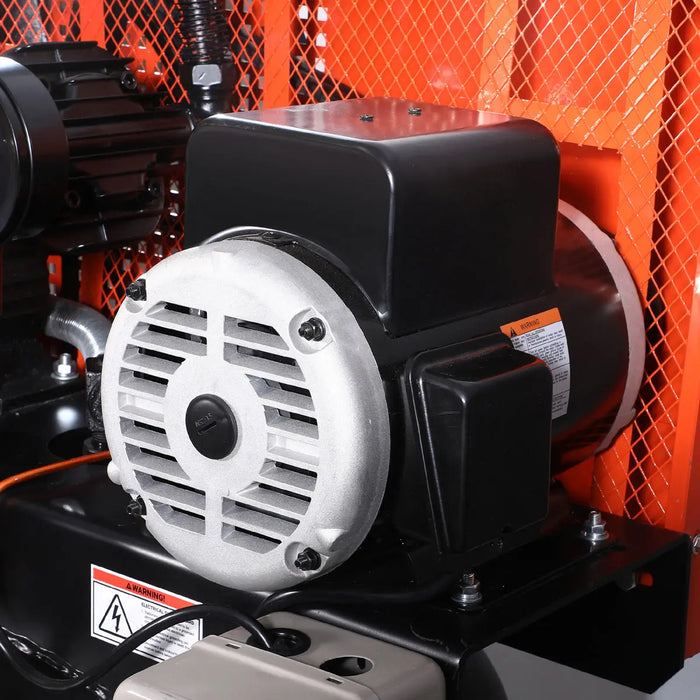

- Equipped with a 80 gallon ASME air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM

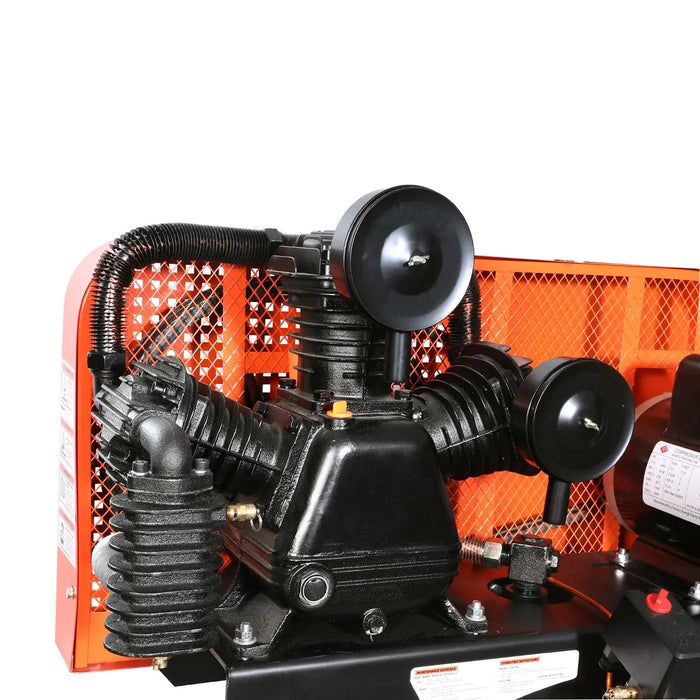

- CSA approved, 7.5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body

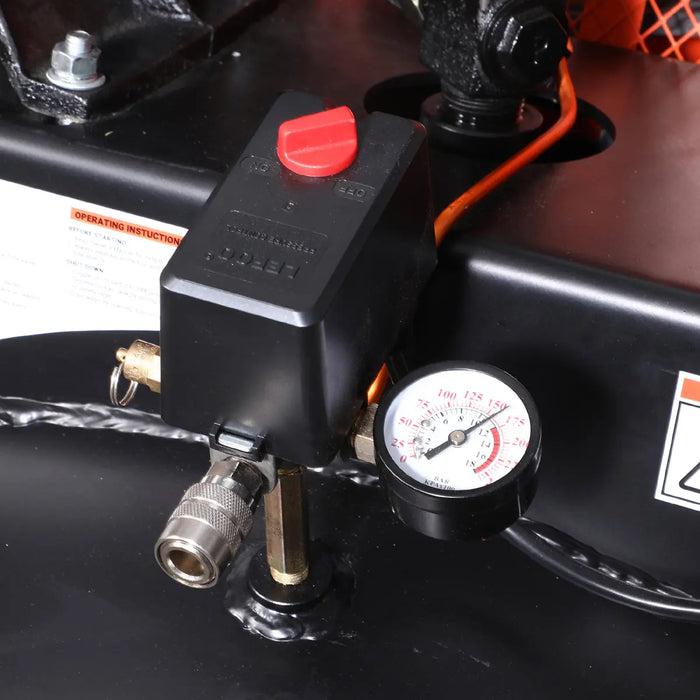

- ¼” and ½” NPT quick connectors for simultaneous multiple tool use and air output port for manual draining to protect against rust and corrosion
- Designed with a finned tube intercooler that provides maximum cooling, eliminates carbon buildup and prolongs valve life
Specifications
Specifications
- Electric motor: AC230V/60hz, single phase, 7.5HP
- Induction motor speed: 3450 RPM
- Maximum working pressure: 175 PSI
- 17.5 CFM at 40 PSI
- 15 CFM at 90 PSI
- Air tank size: 80 gal ASME certified vertical tank
- Tank fill time: <6 minutes
- Noise level: 80 dB
- (1) ¼” NPT quick connector
- (1) ½” NPT valve
- CSA approved
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 40” x 26” x 76”(L x W x H)
- Shipping weight: 605 lb
Product Description
Product Description
The TMG-ACE80 7.5 HP Stationary Electric Air Compressor is equipped with a 80 gallon air tank and operated by a CSA approved, double cast iron, oil-lubricated motor that houses a one-piece cast iron crankcase and full cast iron cylinder body. Excellent piece of equipment to power hoses and tools around an automotive shop, manufacturing warehouse or repair garage.
¼" and ½" quick connectors enable operators to use two tools at the same time, with an air outlet port for simple, rust-protective draining. This compressor is powered by a single phase heavy-duty 230V induction motor with a top operating speed of 3450 RPM so you never experience a drop in power.
Designed with a finned tube intercooler that offers maximum cooling action to prolong valve life, eliminate carbon buildup and contribute to better output and performance overall. Built to last in tough industrial settings long-term.
TMG Industrial also carries other air compressors: TMG-ACE10, TMG-ACE25, TMG-ACE60
