Semi Automatic Tire Changer with Pneumatic Assist Arm, 12" - 24" Rim Clamping, CETL Certified TMG-TC24A
FREE
shipping to most locations in
USA
Learn More
Features
Features
Specifications
Specifications
- Motor: 120 VAC, 2 HP, single phase
- Operating pressure: 115 - 145 PSI
- Rim clamping range (External): 10" - 22"
- Rim clamping range (Internal): 12" - 24"
- Rim clamping range (with motorcycle adaptor): up to 18"
- Max. wheel diameter: 41"
- Max. wheel width: 3" - 15"
- Noise: < 70 db
- Air regulator and oil lubricator
- Plastic protective mount/demount head
- CETL certified: For Canada and the USA
- Pneumatic Assist Arm: TMG-PAT24 included
- Motorcycle clamping adapters: Sold separately
Product Description
Product Description

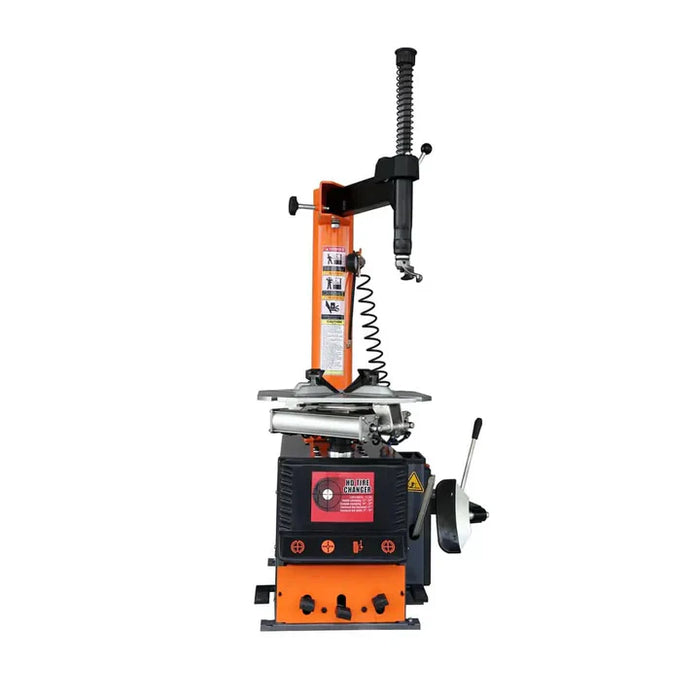

The TMG-TC24A is a semi-automatic tire changer that combines the proven performance of the TMG-TC24 with the added muscle of the built-in TMG-PAT24 pneumatic assist arm. Designed for small to medium tire shops and general auto service centers, it delivers efficient, rim-safe tire changes across a wide range of tire sizes and styles.

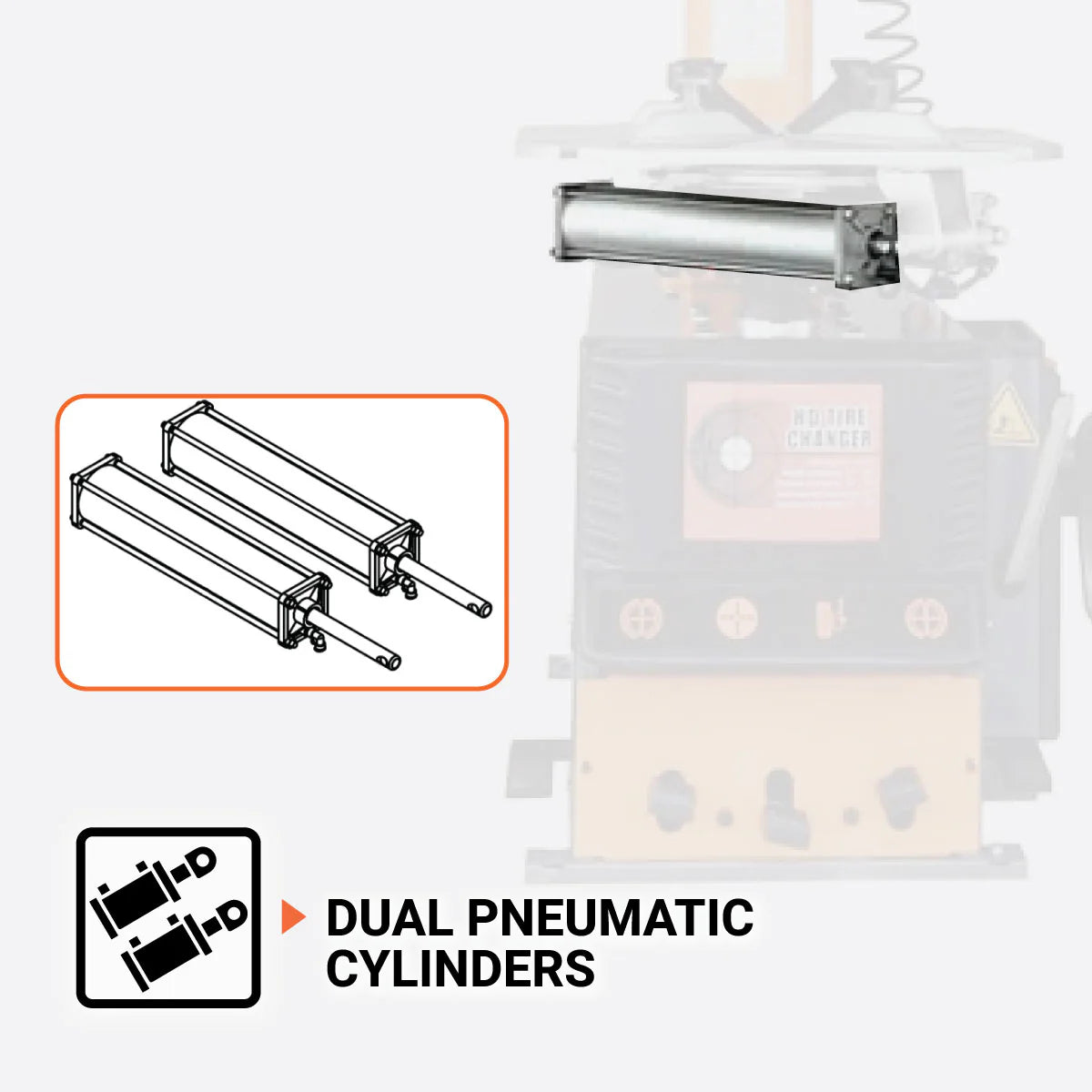

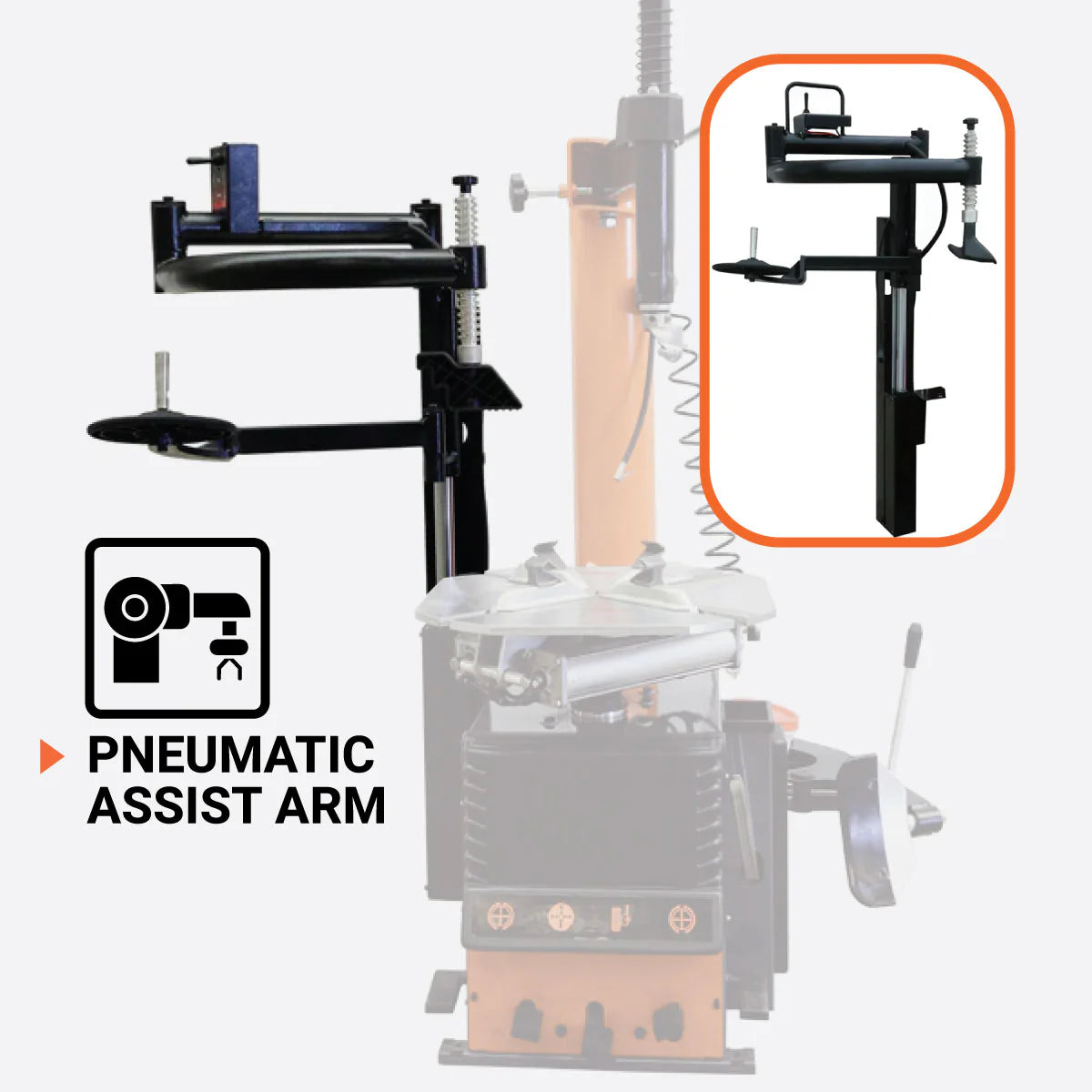

Its 120V single-phase electric motor powers smooth, repeated tire removal, while four heavy-duty self-centering jaws with dual pneumatic cylinders clamp rims from 12" to 24". Protective covers on each jaw tooth help prevent rim damage, ensuring a clean, professional result. The integrated assist arm handles stiff sidewalls and beads with ease, reducing operator fatigue and increasing speed.

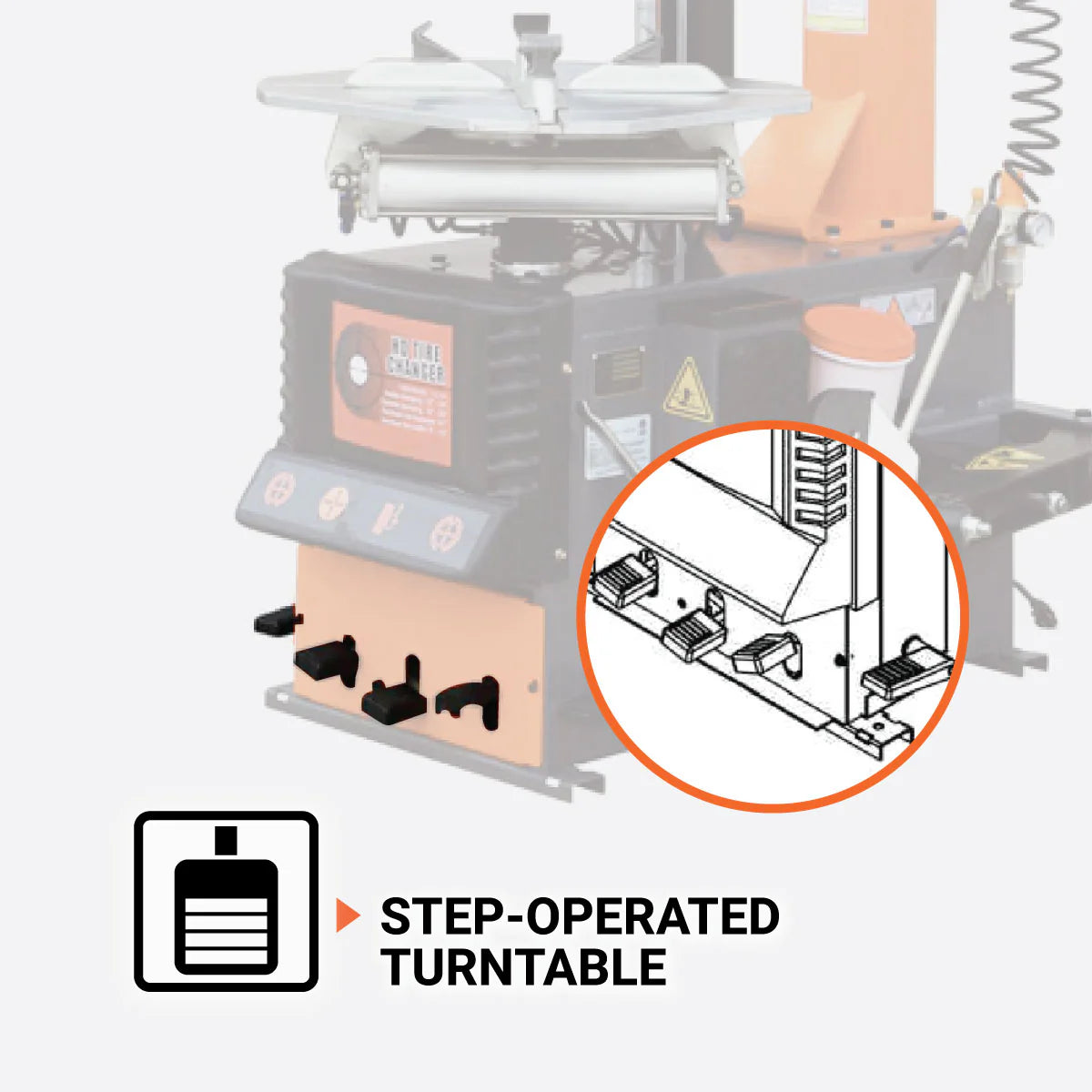

Pedal controls give full control during operation, and the horizontal swing arm with bidirectional turntable simplifies mounting and dismounting. Compact, electric, and shop-ready, the TMG-TC24A is a reliable solution built to make tough tire jobs easier and faster.
If you don’t need the Pneumatic Assist Arm, you can order the TMG-TC24.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in the U.S. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

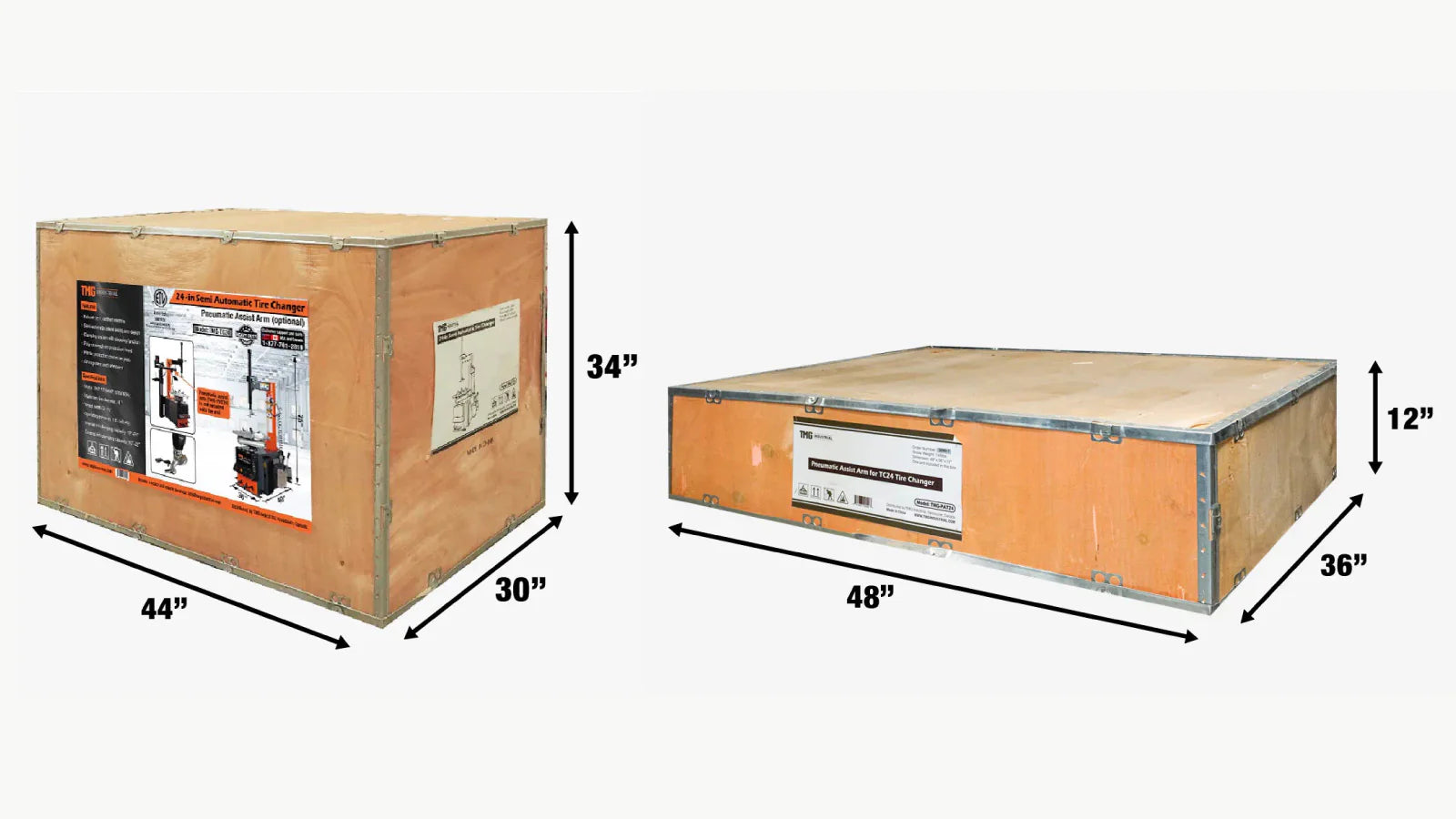

- This product is packed in two wooden crate shipping boxes
- Box A: 44” x 30” x 34” (L x W x H), 485 lb
- Box B: 48″ x 36″ x 12″ (L × W × H), 145 lb
- Total shipping weight: 630 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
