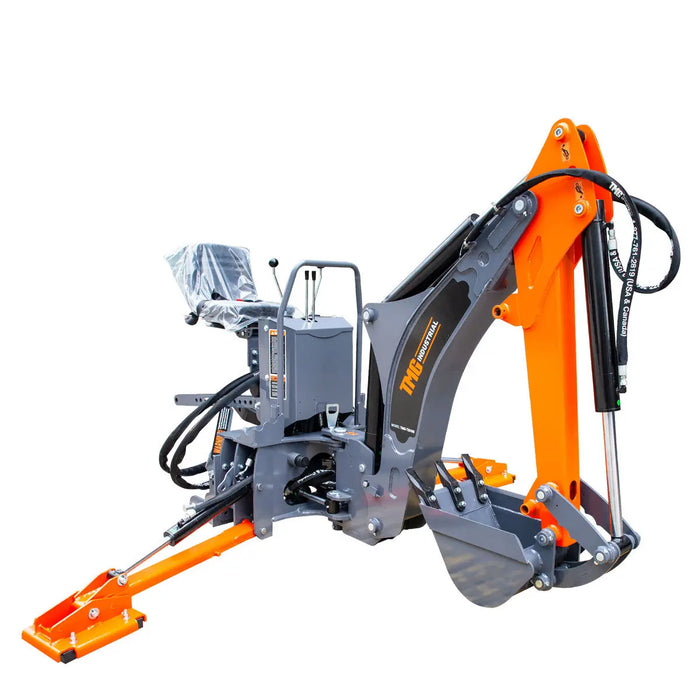

8-ft Tractor Swing Backhoe Attachment, Category 1 Hookup, 180° Boom and Bucket Rotation, 12" Bucket Included, TMG-TBH88
FREE
shipping to most locations in
USA
Learn More
Product Manual

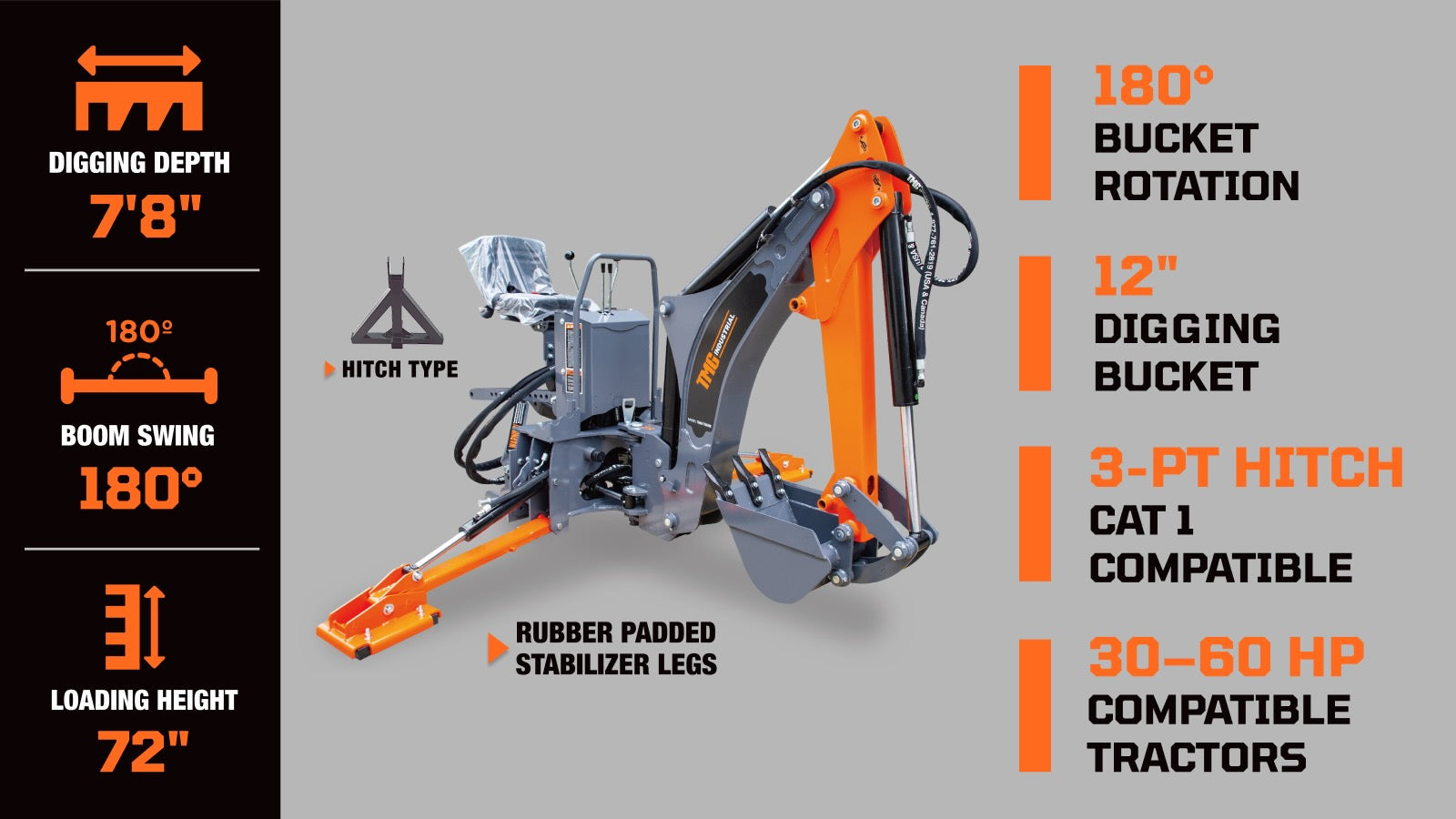

Features
Features

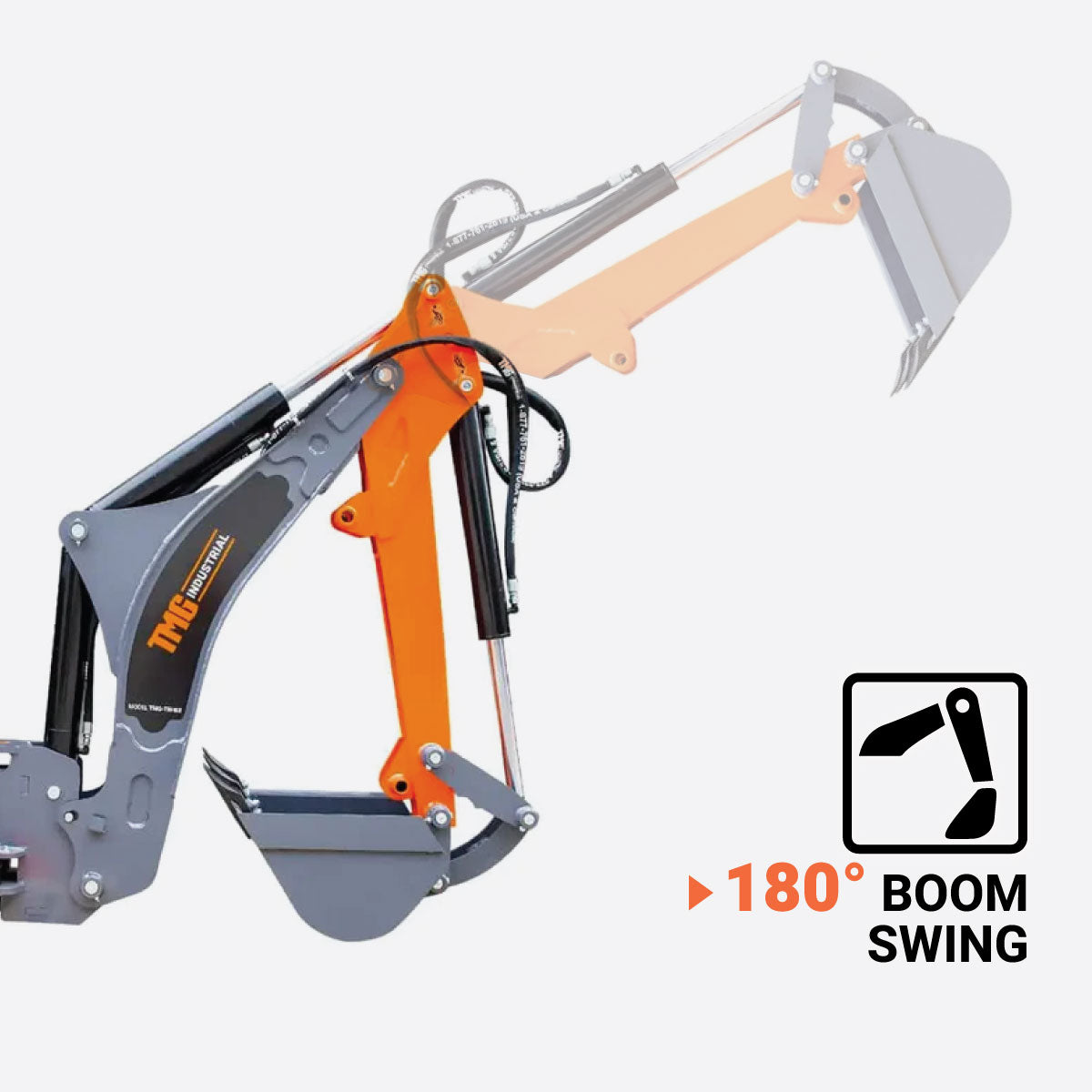

- With a dynamic reach capacity of 180° in all directions and a staggering 7’8” digging depth, it covers large areas without the need for frequent repositioning

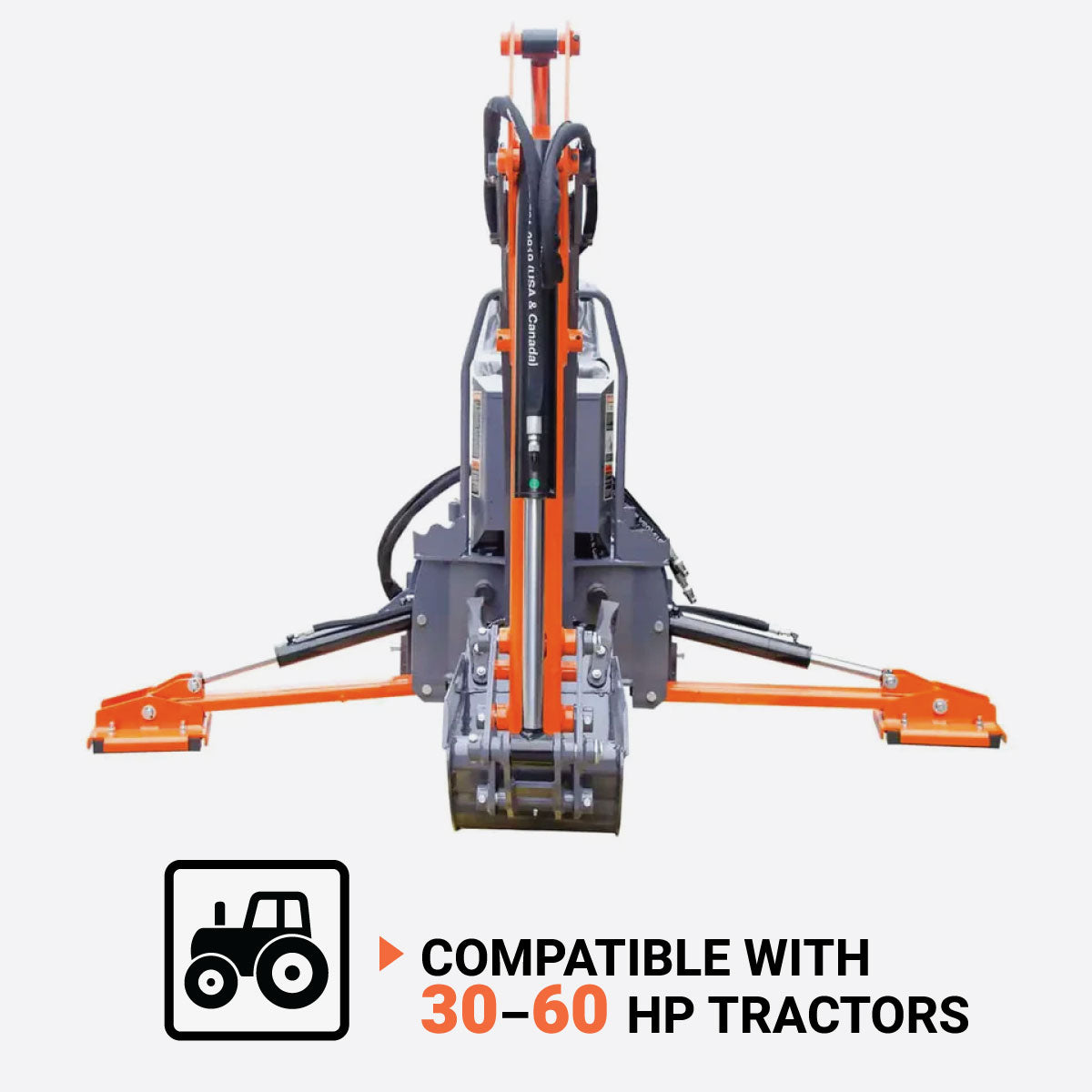

- Designed for 30-60 HP tractors, this attachment includes a 12” digging bucket, making it perfect for anything from digging ditches to landscaping projects
- Equipped with precisely designed Italian hydraulic control valves; finely tuned for impeccable timing and performance

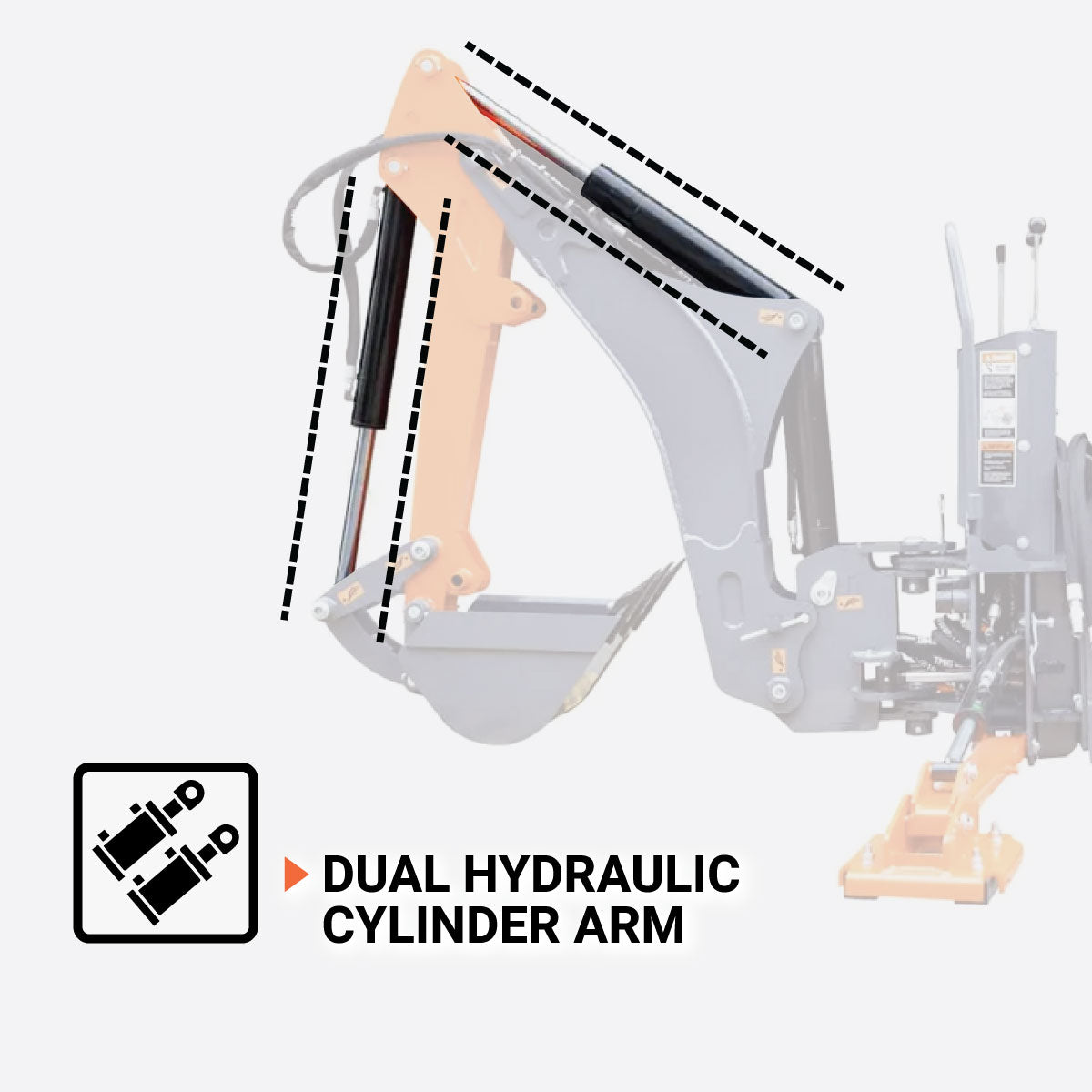

- The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, offering the power needed for challenging excavation tasks

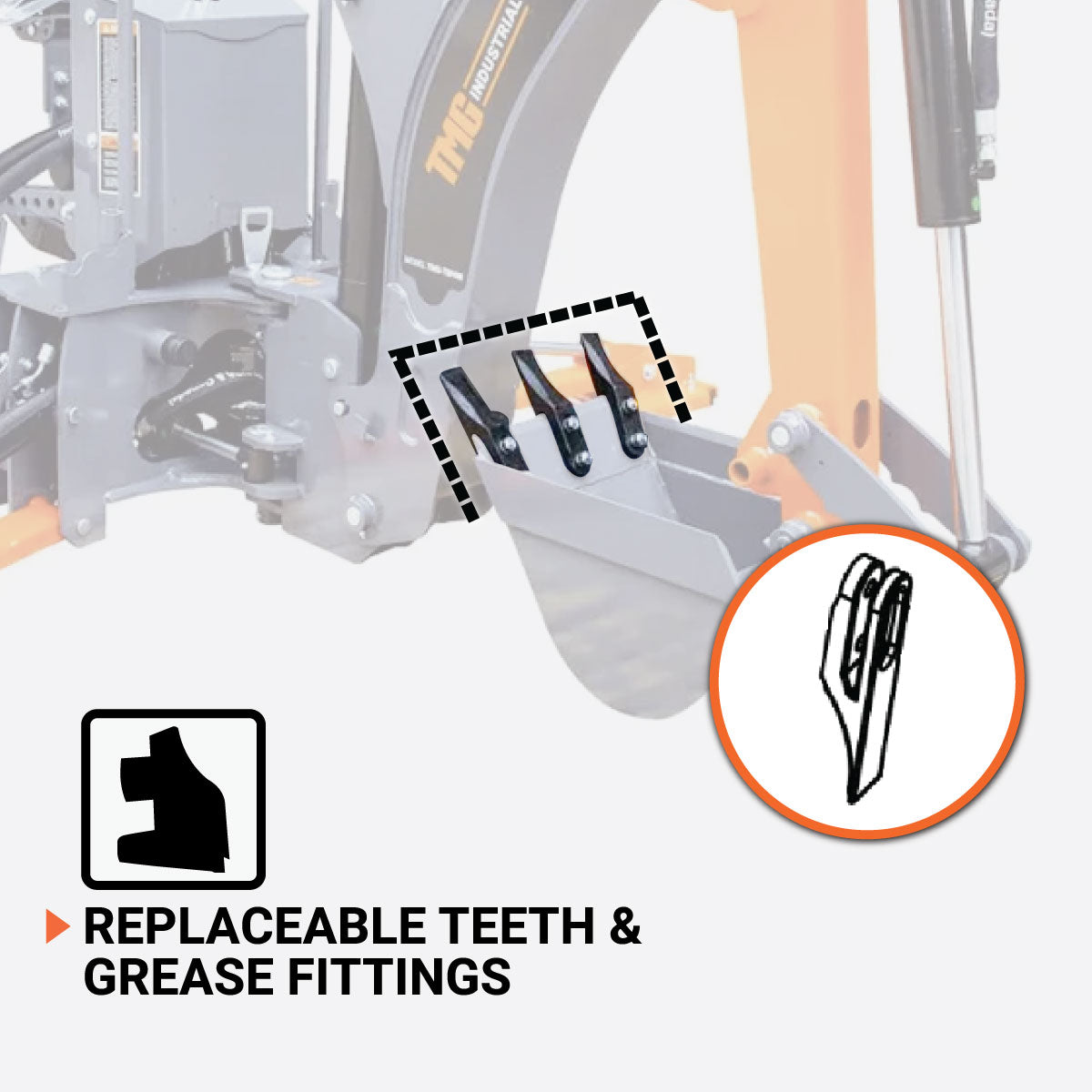

- Replaceable bushings, bolt-on cast teeth, and grease fittings on pivot points make long-term maintenance easy, and offer durability for tough, all-day work
- Rubber street pads on stabilizer legs reduce surface damage, an open seat provides clear visibility, and foldable stabilizers keep you in place while you work

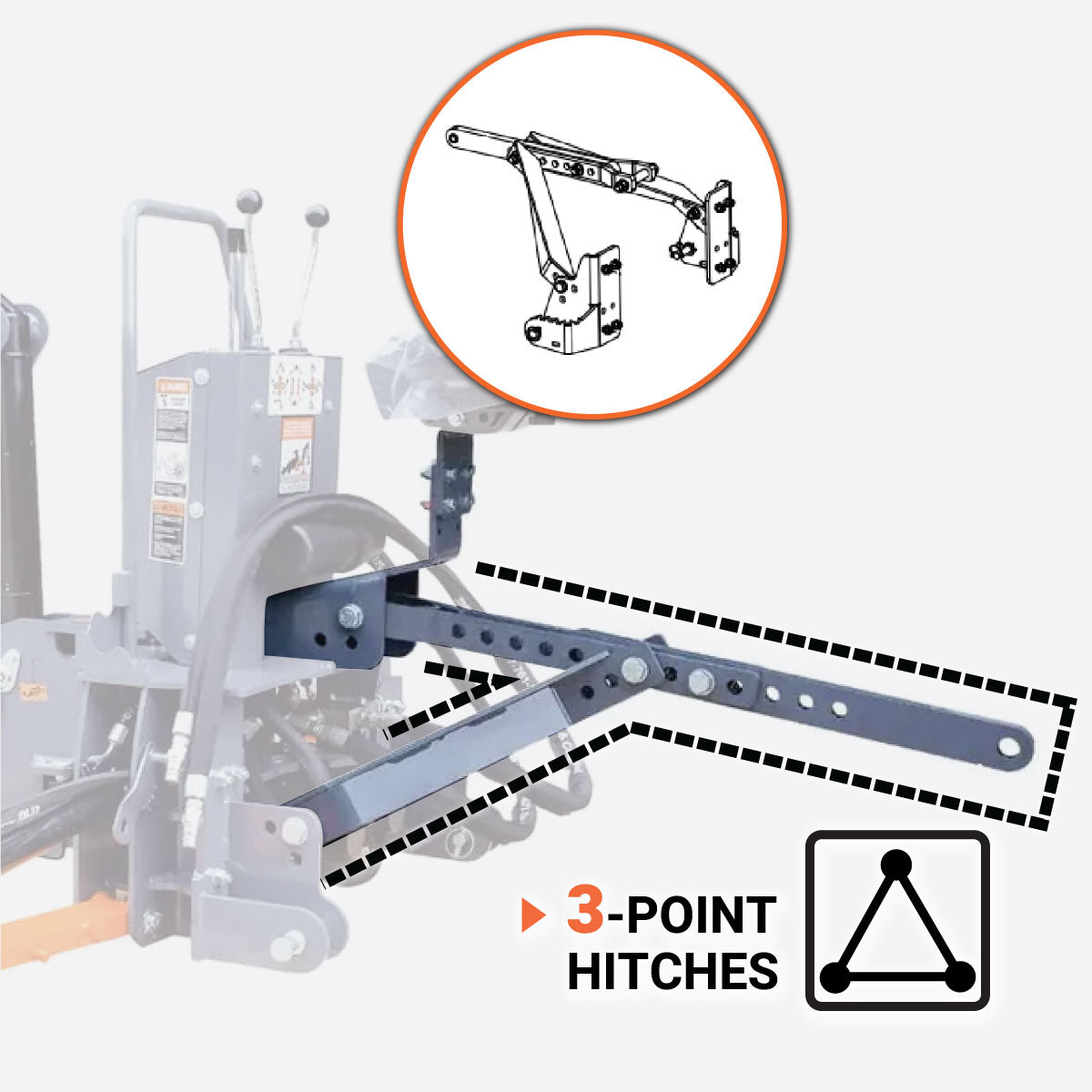

- 3-point hitch to fit most CAT 1 hookups so you can easily attach to your tractor and mitigate the need for a separate excavating machine
Specifications
Specifications
- Digging depth (2 ft. flat bottom): 7’8”
- Overall operating height (fully raised): 112”
- Reach from swing post: 118”
- Loading height(bucket at 60° rotation) 72”
- Dipper boom digging force: 2054 lb
- Bucket digging force: 3187 lb
- Transport height (with boom fully retracted): 72”
- Transport width (with stabilizers up): 58”
- Transport length: 71”
- Ground clearance: 10”-12”
- Transport Weight (base unit only-no bucket or mounts): 820 lb
- Bucket rotation: 180°
- Swing arc: 180°
- Stabilizer width (Spread): 88”
- Stabilizer width (Transport): 58”
- Operating pressure: 2320 PSI
- Hydraulic volume requirements: 5-7 GPM
- Recommended tractor requirements: 30-60HP
- Flow divider included: Yes
- Bucket sizes available: 12”
- 3-point hitch
- Category 1 hookup
- Self-contained gear pump (TMG-TBH90-J): sold separately
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 75” x 29” x 49” (L x W x H)
- Shipping weight: 1135 lb
Product Description
Product Description
The TMG-TBH88 Tractor Swing Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 7'8", it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30-60 HP tractors, it comes complete with a 12" bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.
What sets the TMG-TBH88 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.
Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete. For tractors not equipped with hydraulic auxiliary system, an optional external self-contained hydraulic pump is also available for efficient energy transmission and to maximize digging force (sold separately).
Warranty
Warranty
More Information
