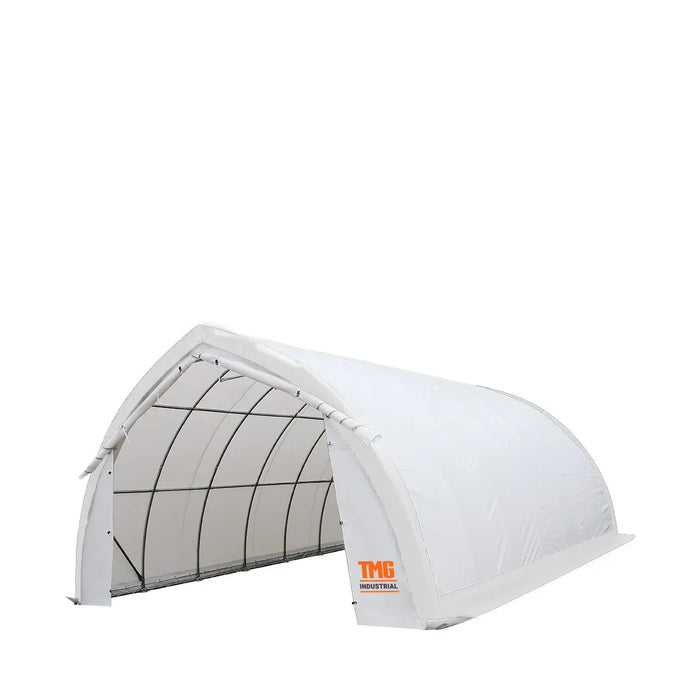

20' x 30' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 11 oz PE Cover & Drive Through Doors, TMG-ST2031P (Previously ST2030P)
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Easy to assemble and install while costing far less than a comparable commercial size building
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Commercial grade, triple-layer ripstop polyethylene (PE) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Resistant to fire, chemicals and oil
- UV protected and waterproof
- Fabric color: white
- Ample storage room with approximately 600 square feet of covered space making for a spacious, protected outdoor area
- Designed with proper truss spacing for maximum strength and stability as well as approx. 14’ of entry/exit space on two end-walls that allows easy parking and dynamic workflow throughout

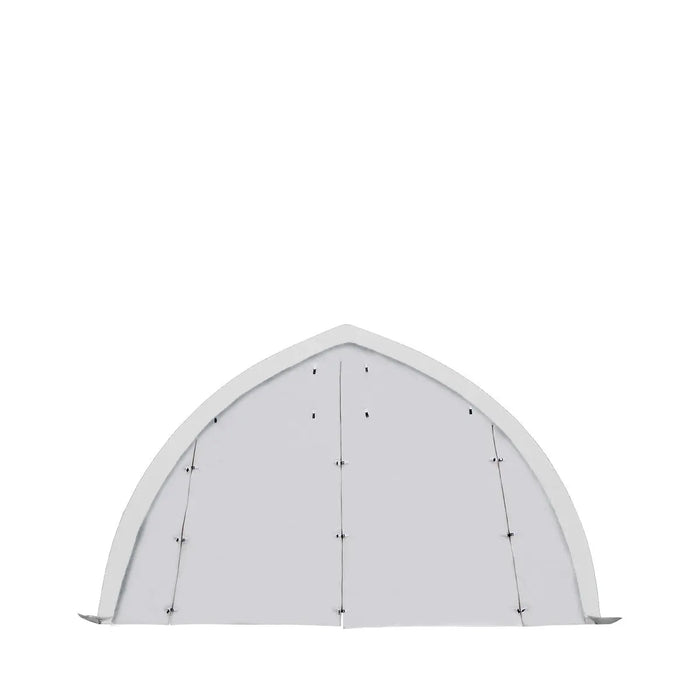

- Peaked roof design, dirt skirts and roll-up doors protect you and your equipment from the elements while adding to the shelter’s overall stability

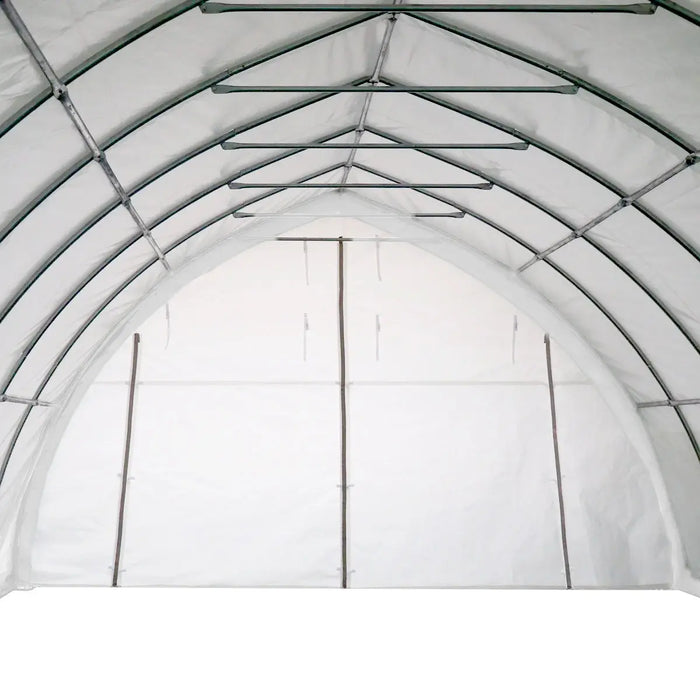

- Collar beams added on end trusses to increase support strength and rigidity
- PE fabric is light permeable and allows natural sunlight to come through and illuminate the covered space so it’s easy to see; you’ll save costs by not installing artificial lighting

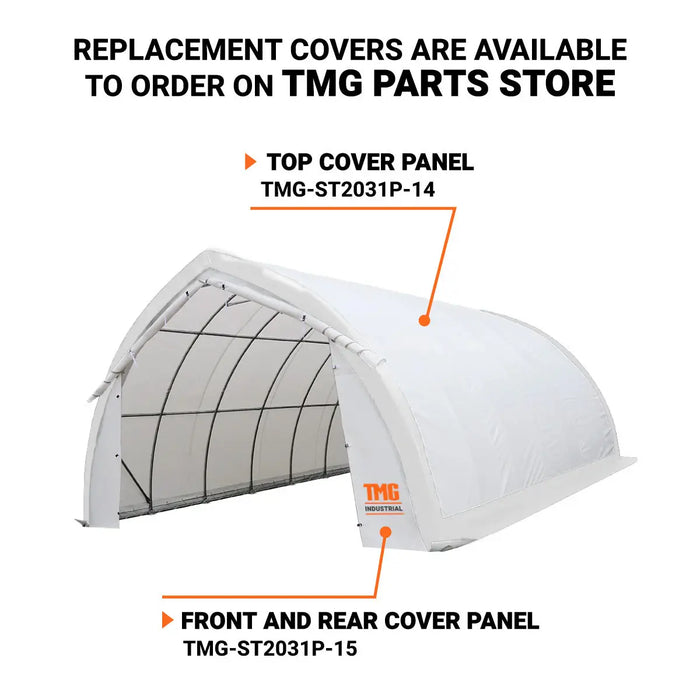

- Replacement covers available for order here TMG PARTS STORE
- Custom lengths available for 53’ containers or other dimensions upon request.
Specifications
Specifications

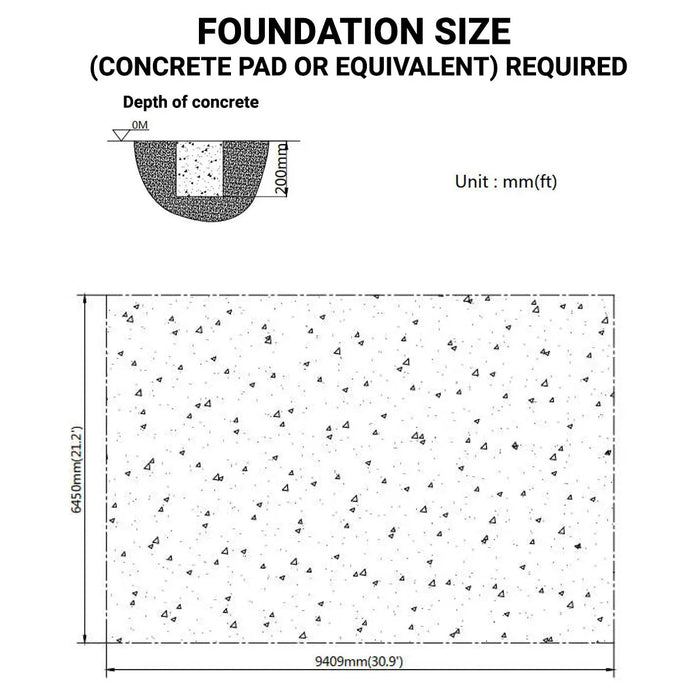

- Foundation size required: 6450mm(21.2')(W) x 9409mm(30.9')(L)

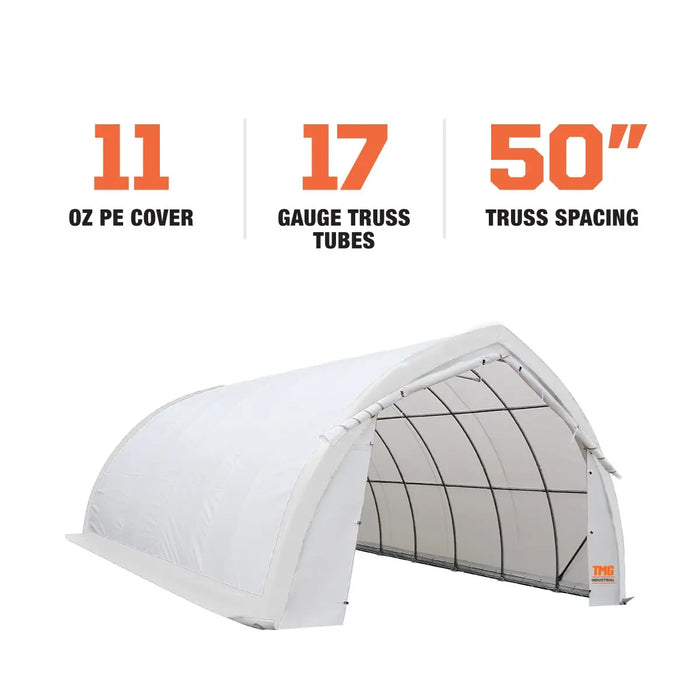

- Truss spacing: 50"
- Truss quantity: 8 groups

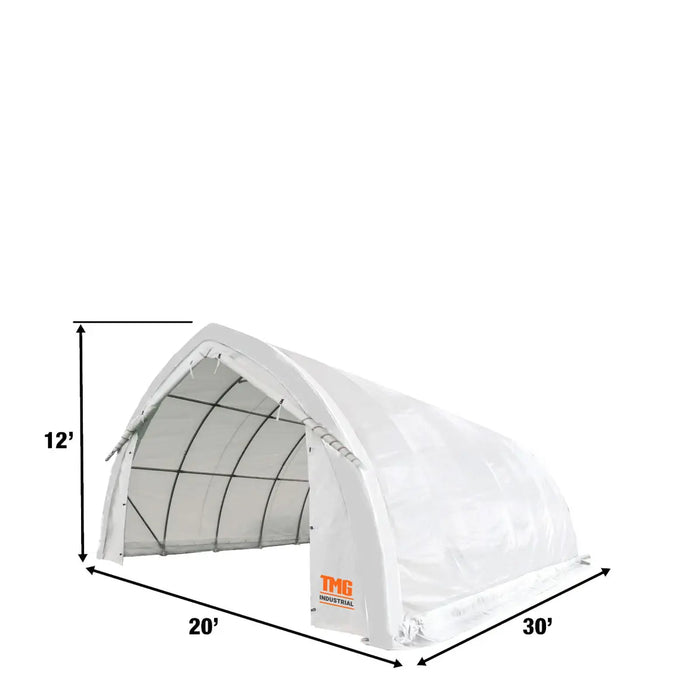

- Peak ceiling height: 12'

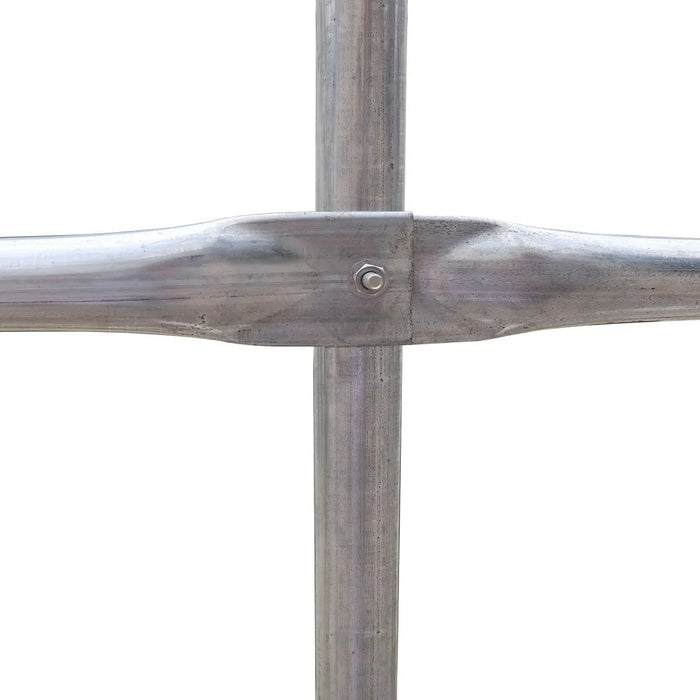

- Truss and purlin tubes: 1.65” – 17 GA (approx.)
- Purlins on rafter: 35 of 5 rows

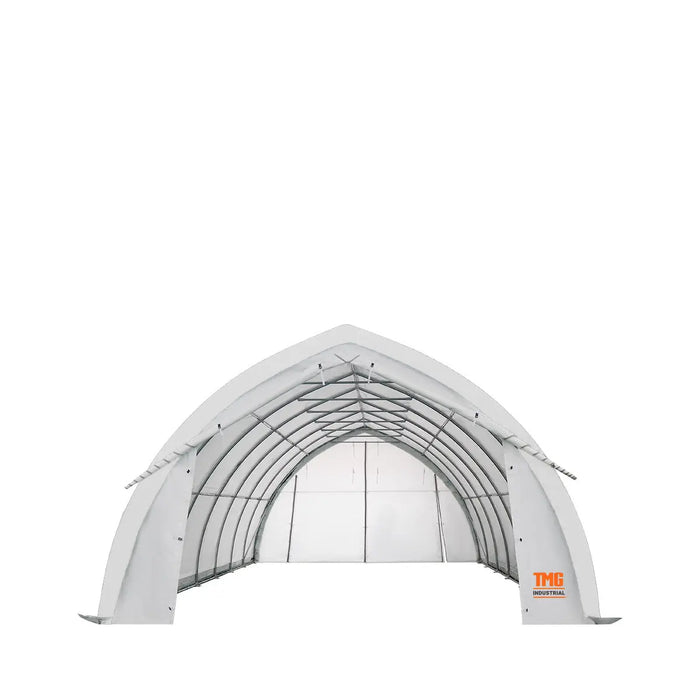

- Door entry/exit clearance on both end-walls: 14’ wide at base and 10’ high
- Cover material: 11 oz PE fabric, 14 x 14 weave, 20 mil

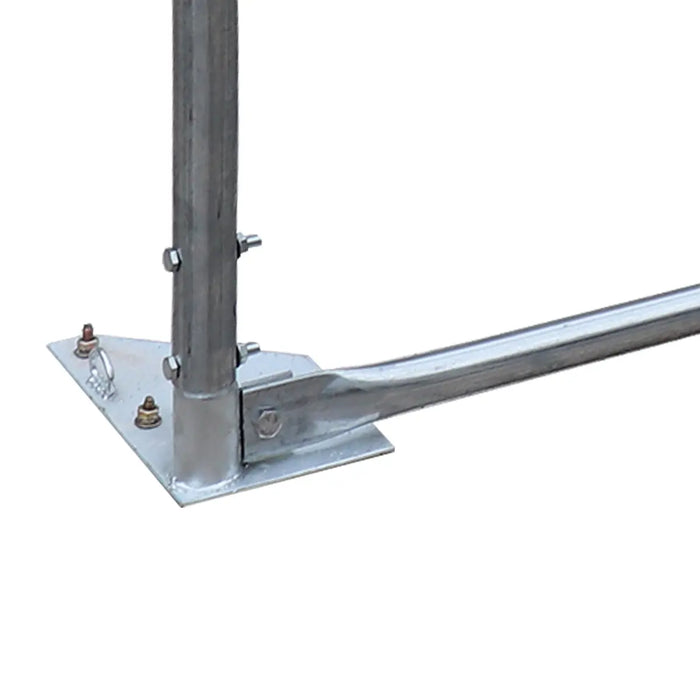

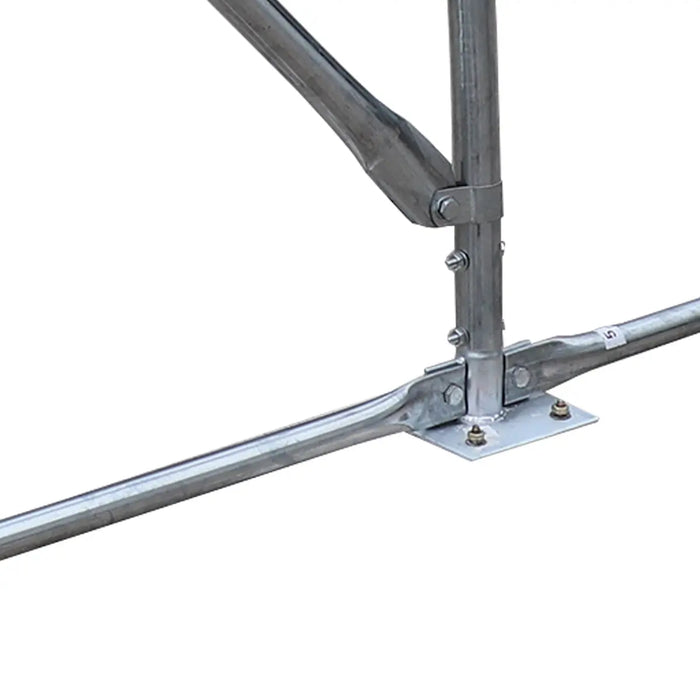

- Footplates with pre-drilled holes (anchor bolts not included)
- Solid and durable assembly foundation required: Concrete slabs or equivalent
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- The product is packed in a metal crate shipping box
- Shipping dimension: 87” x 29” x 19” (L x W x H)
- Shipping weight: 820 lb
Product Description
Product Description
The TMG-ST2031P PE Fabric Peak Ceiling Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more.
Approximately 600 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any concrete pad or equivalent for versatile usability whether you’re working in remote, rural or industrial locations.
Made of strong, heavy-duty commercial grade polyethylene (PE) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric will allow some sunlight to permeate through, giving you and your crew a naturally lit working environment. No need to install any additional artificial lighting systems that strain your eyes and give you headaches.
Wide open entry and exit space on two end-walls provides a huge opening to allow workflow coming in and out. Use this shelter as storage for tools, large equipment, ongoing jobs, maintenance, and mechanical labour. The PE fabric has a self-cleaning quality and comes in a vibrant white colour that reflects UV rays and makes any location it occupies look sharp, neat and professional.
We also carry this model of storage shelter with a polyvinyl chloride (PVC) fabric covering: TMG-ST2030PV.
