42" Heavy Duty Truck Tire Changer, 59" Tire Capacity, Upright/Vertical Tower Design, Bead Breaker w/Disc & Bead Hook, CSA certified Motor, TMG-TTC42
FREE
shipping to most locations in
USA
Learn More
Features
Features

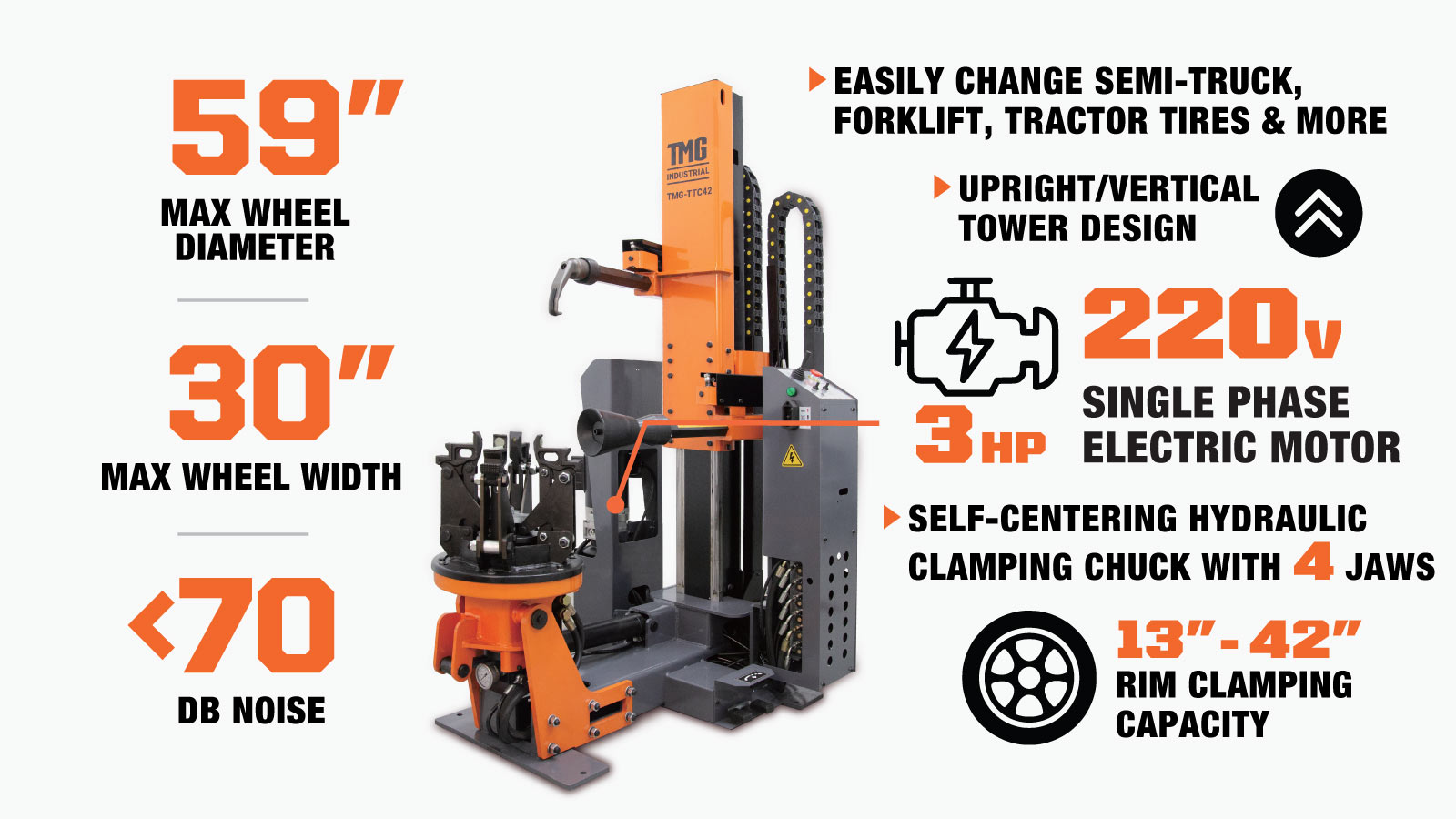

- Designed to easily change the tires of semi-trucks, trailers, forklifts, tractors, and other machinery in a high production work environment
- Vertically designed upright positioning is easy to use and functions well with the tire assembly offering plenty of room for mounting/dismounting
- Max. rim size of 42” and max. tire size of 59” is perfect for tubeless truck, off-road and agricultural tires so you can expand service options to customers
- Integrated bead breaker with disc attachment, bead hook and mount/demount head arm assembly improve work efficiency and reduce labour expenditure
- Self-centring hydraulic clamping chuck with four jaws keep tires in place while working on them to avoid damage and improve work accuracy
- Powered by a reliable CSA certified motor that delivers superior work output and power to the hydraulic clamping jaws and air pressure system
- Automatic positioning and two bead breaker arm assembly locking positions make adjustments easy to do when working on multiple tire types/sizes
Specifications
Specifications
- Hydraulic motor power: 3 HP, 220 V, 60 Hz, single phase
- Rim clamping size: Up to 42”
- Hydraulic displacement: 2 GPM
- Maximum tire diameter: 59”
- Maximum wheel width: 30”
- Rim clamping: 13” - 42”
- Operation voltage: 24 VAC
- Noise: <70db
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

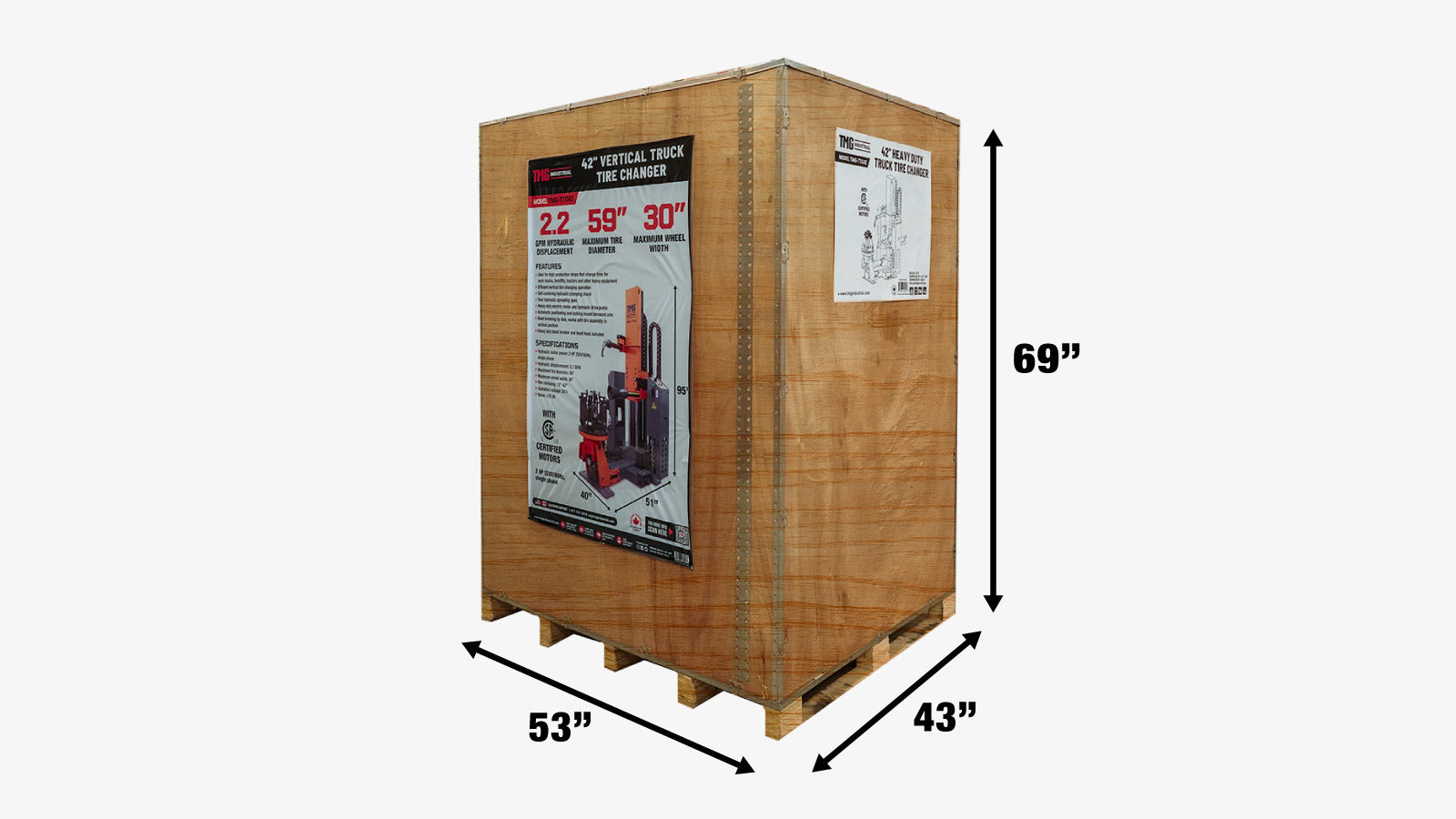

- This product is packed in a wood crate shipping box
- Shipping dimension: 53” x 43” x 69” (L x W x H)
- Shipping weight: 1370 lb
Product Description
Product Description
The TMG-TTC42 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires up to 59". With a maximum rim size of 42" and vertically designed upright positioning, this machine can easily change the tires of semi-trucks, trailers, forklifts, tractors and other machinery.
An integrated bead breaker with disc head attachment and bead hook exert an enormous amount of air pressure through the tire to help separate it from the rim for dramatically increased work efficiency. Self-centering hydraulic clamping chuck with four jaws keeps the tire firmly in place while working, and is powered by a reliable CSA certified electric motor.
This dynamic shop essential is able to change tires of all size, style, brand and class without damaging the rim or tire itself and maximizing operator safety. Save yourself and your employees exhausting labour and make everyone's day a little easier with this electrically powered and air pressurized compact automotive shop essential.
We also carry a horizontal, 26" rim capacity heavy-duty tire changer: TMG-TTC26
