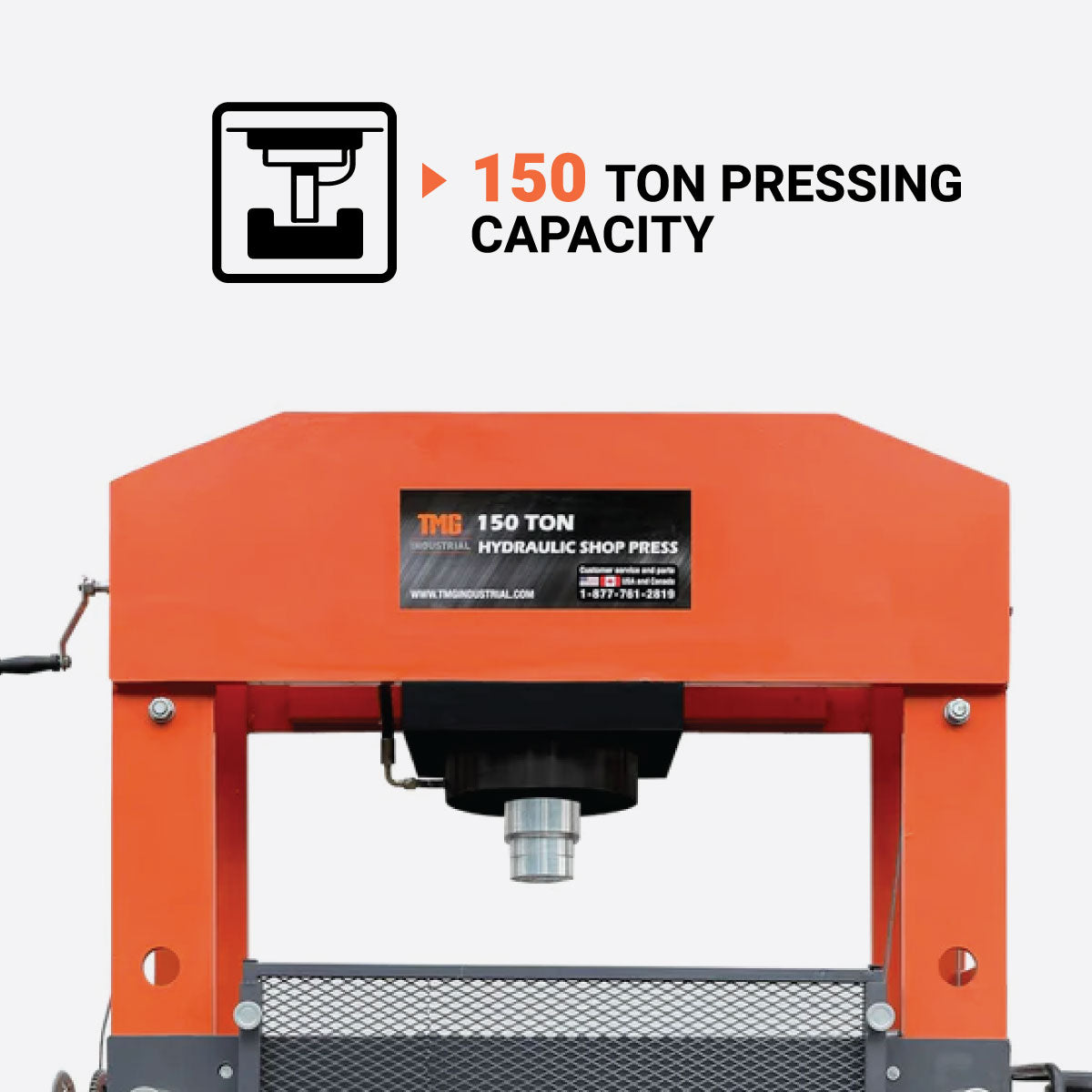

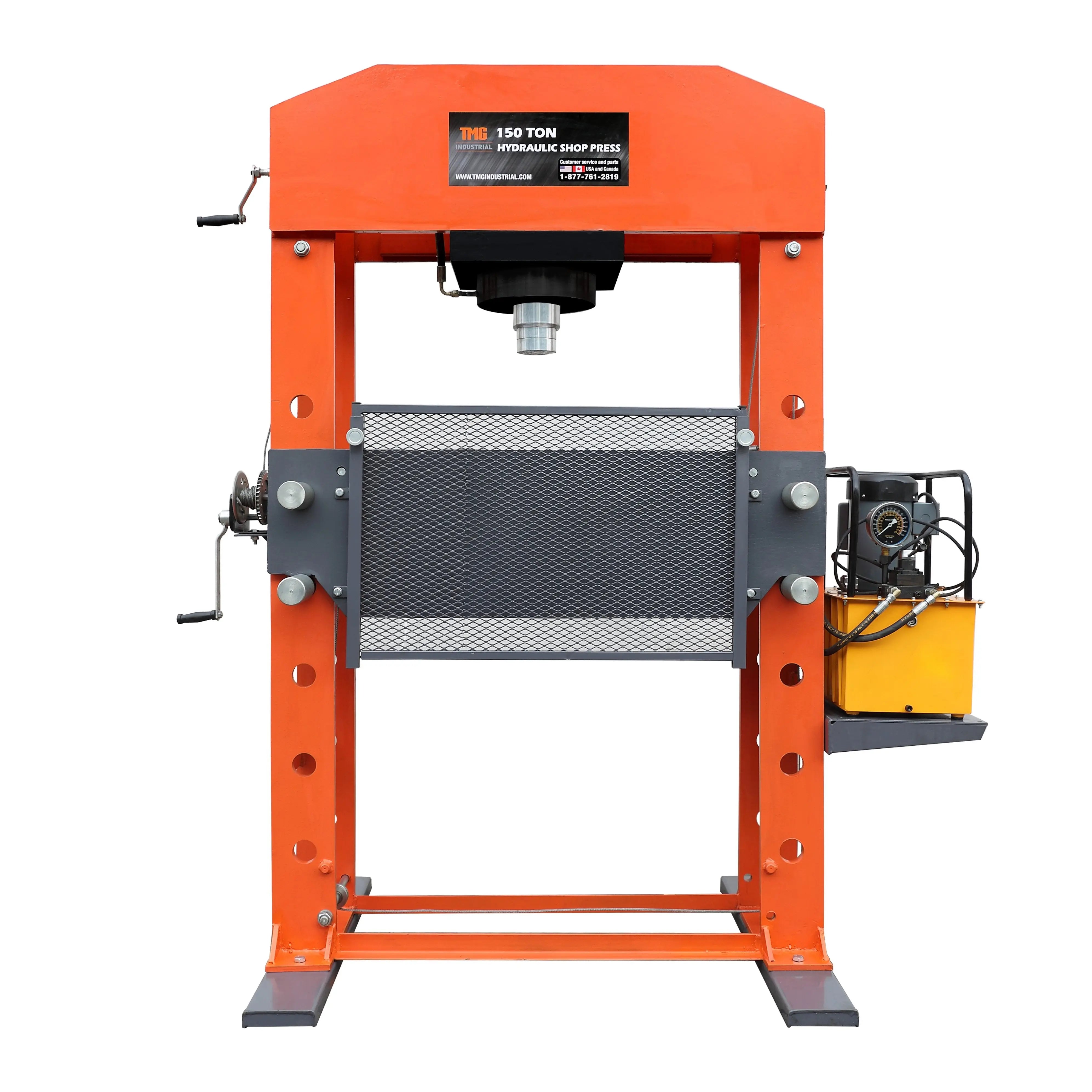

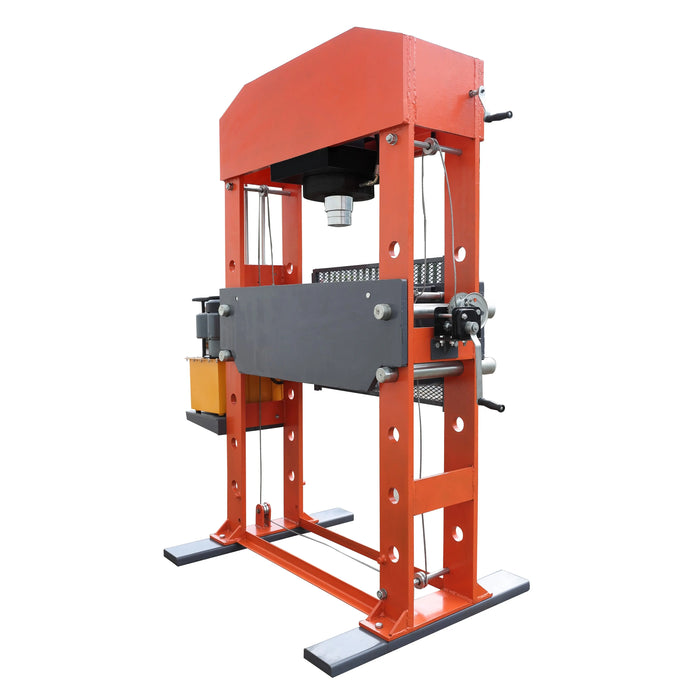

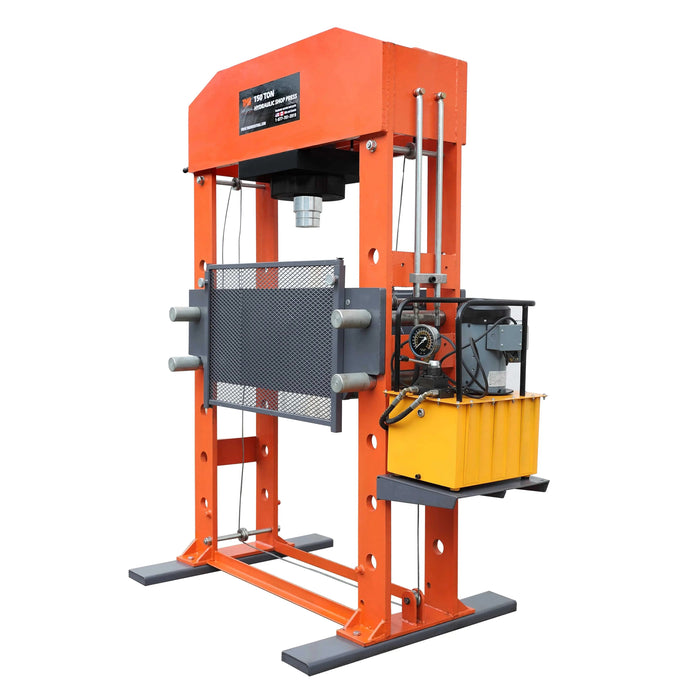

TMG-SP150 150-Ton Electric Hydraulic Shop Press

The TMG Industrial 150-Ton Electric Hydraulic Shop Press is ideal for both commercial and home shops. This electric operated shop press features a 13.75” stroke, a sliding ram pressing head, a no-slip safety clutch and steel cable winch to make bed adjustments a breeze. With 150-Tons of pressure at its disposal this press will easily handle your needs, whether you are removing gears, bushings, bearings, or straightening and stamping.

Features:

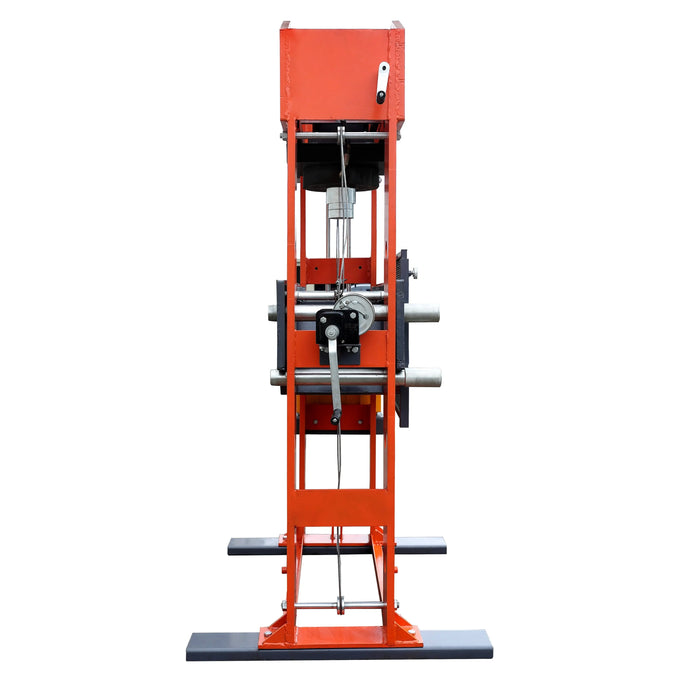

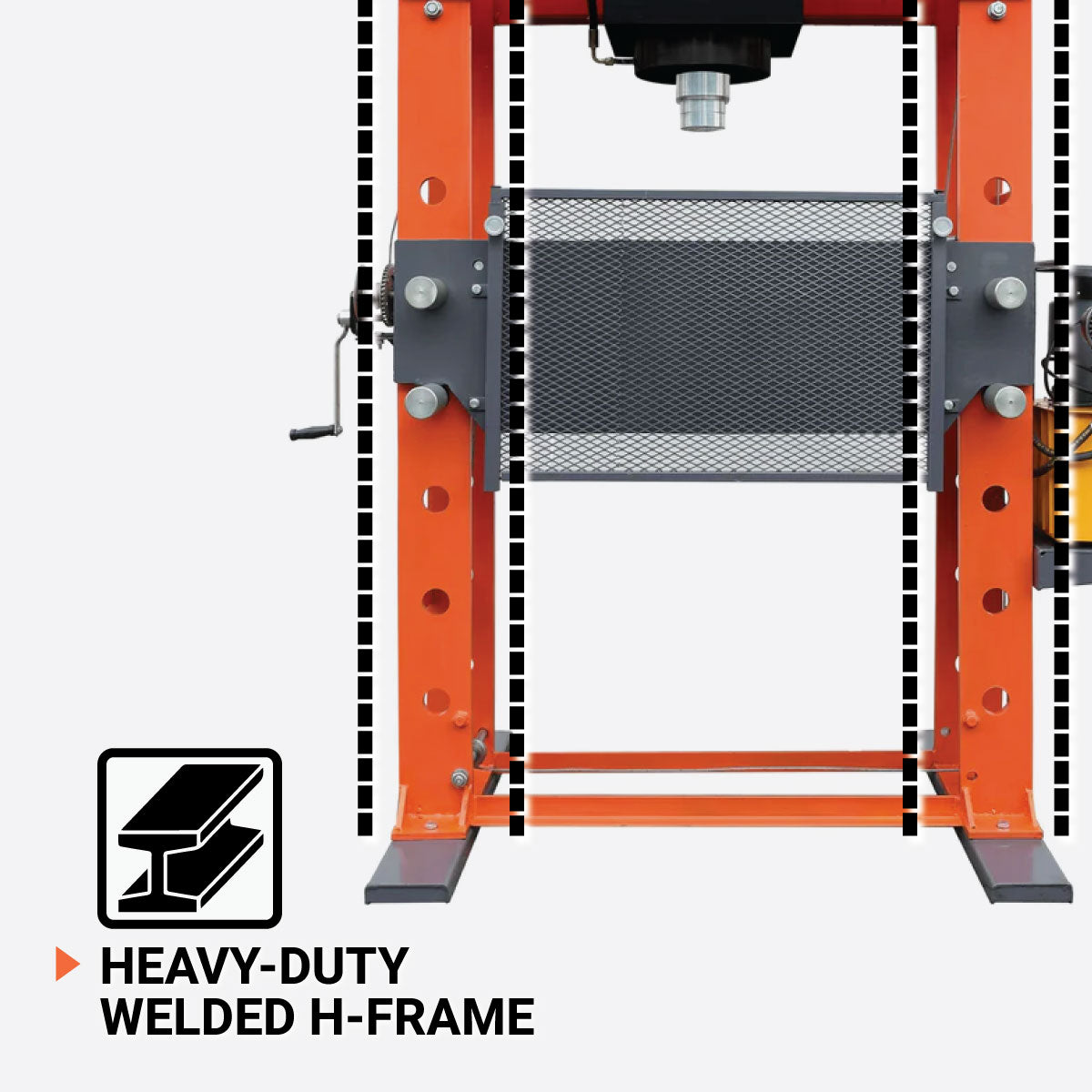

• Heavy duty fully welded 1” x 6” steel H frame to add rigidity and durability

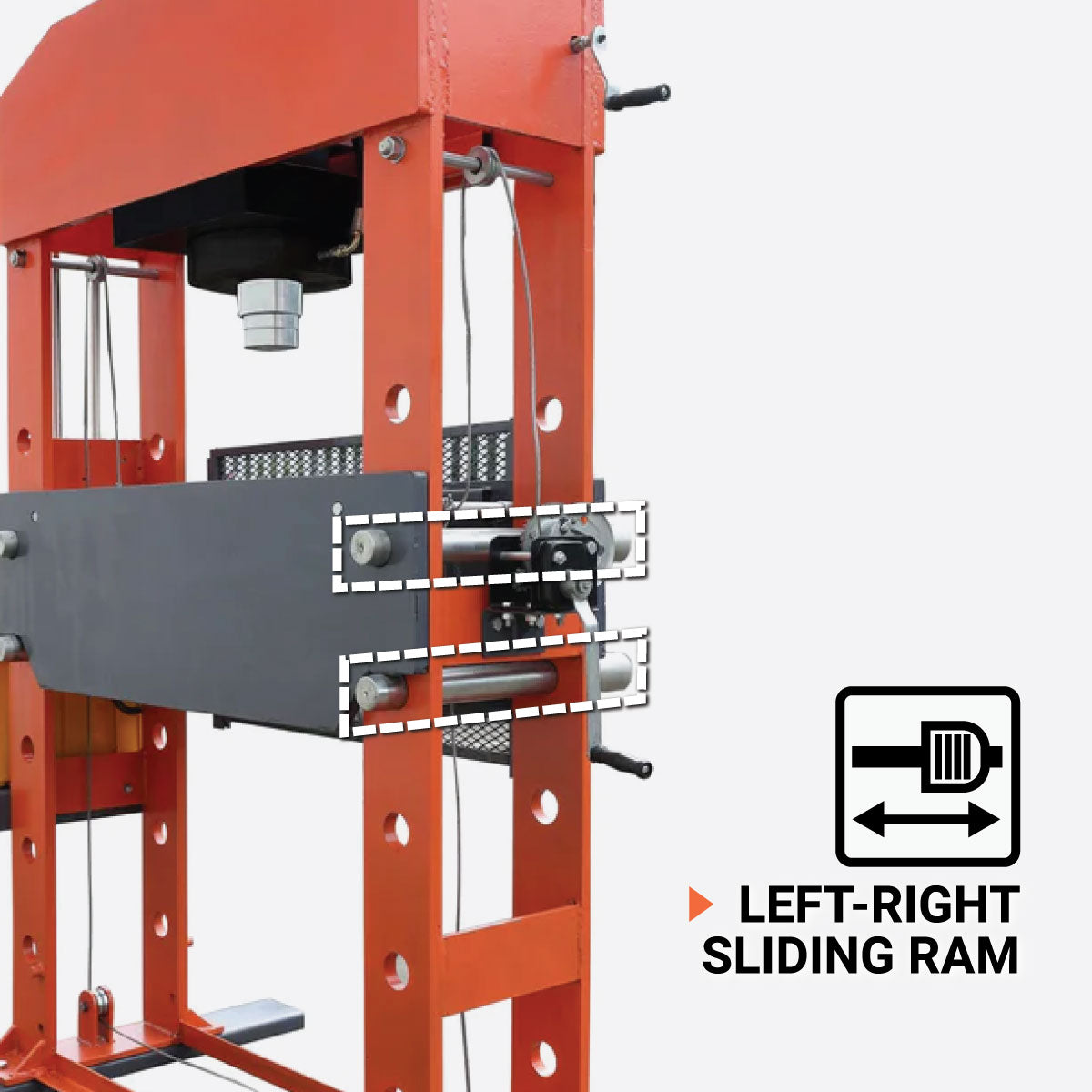

• Sliding ram pressing head offers multiple work positions (moves left and right)

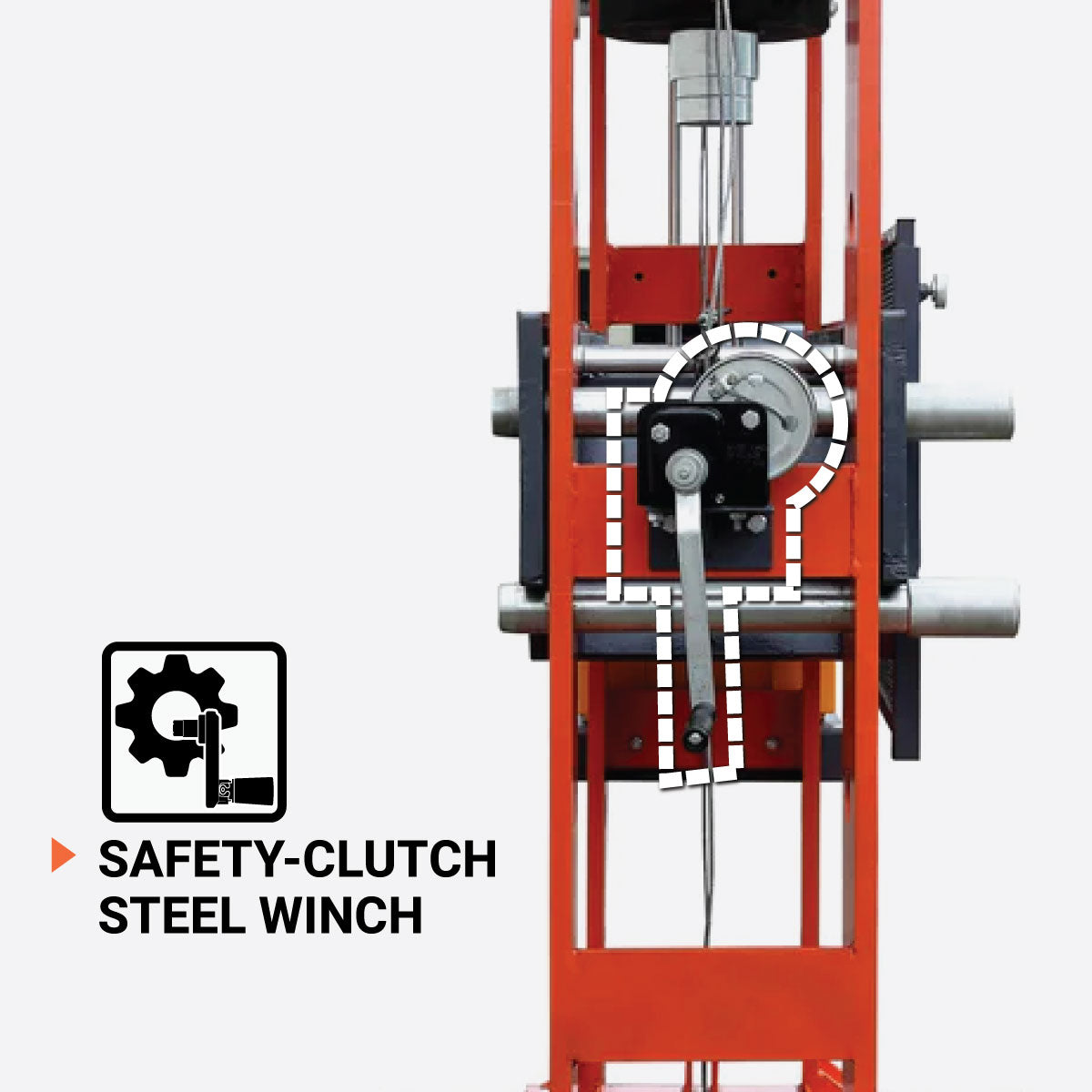

• No-slip safety clutch and steel cable winch to move carriage bed

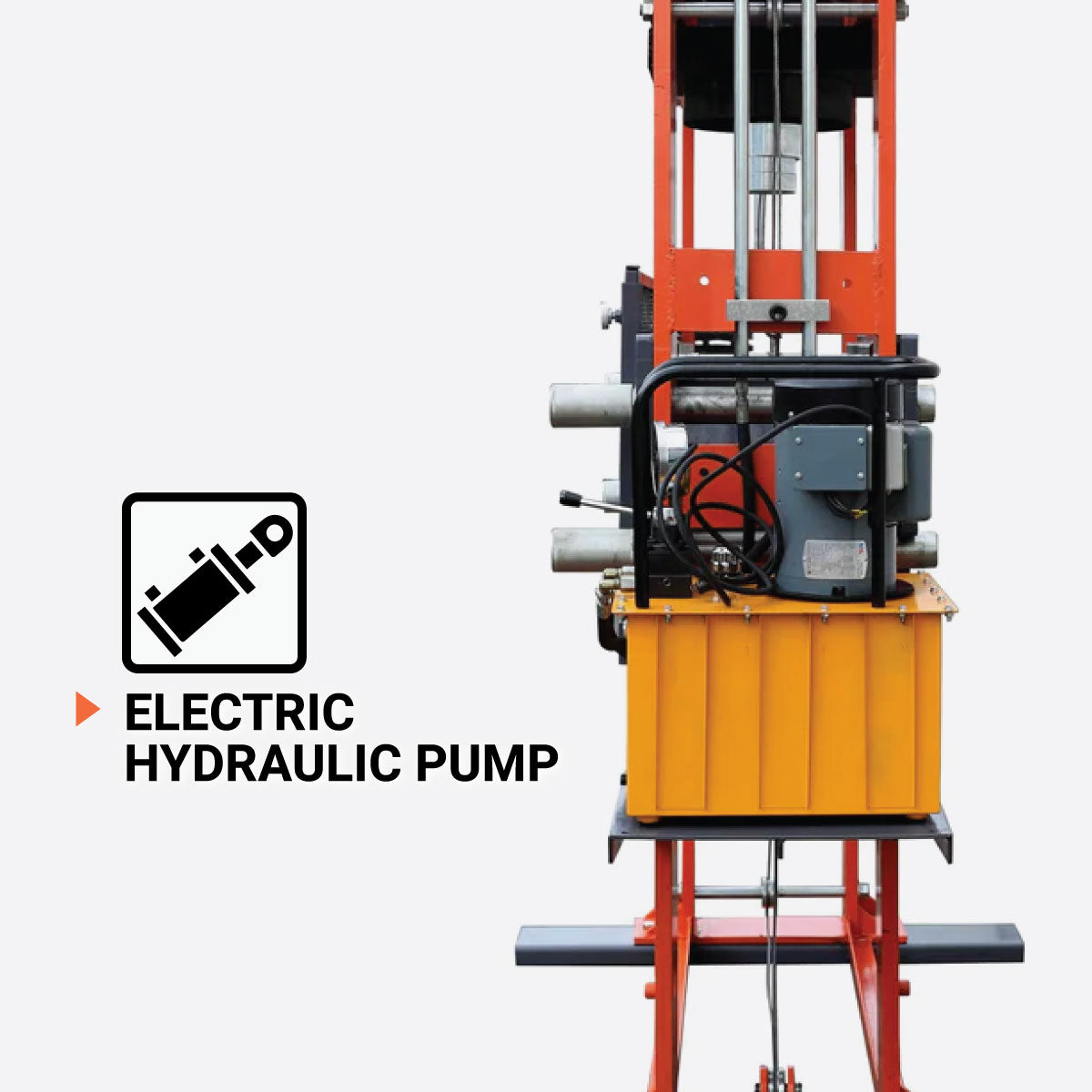

• Electric powered hydraulic pump for heavy pressing
• Ram fully extended travel time: 85 seconds
• Ram fully retracted travel time: 60 seconds

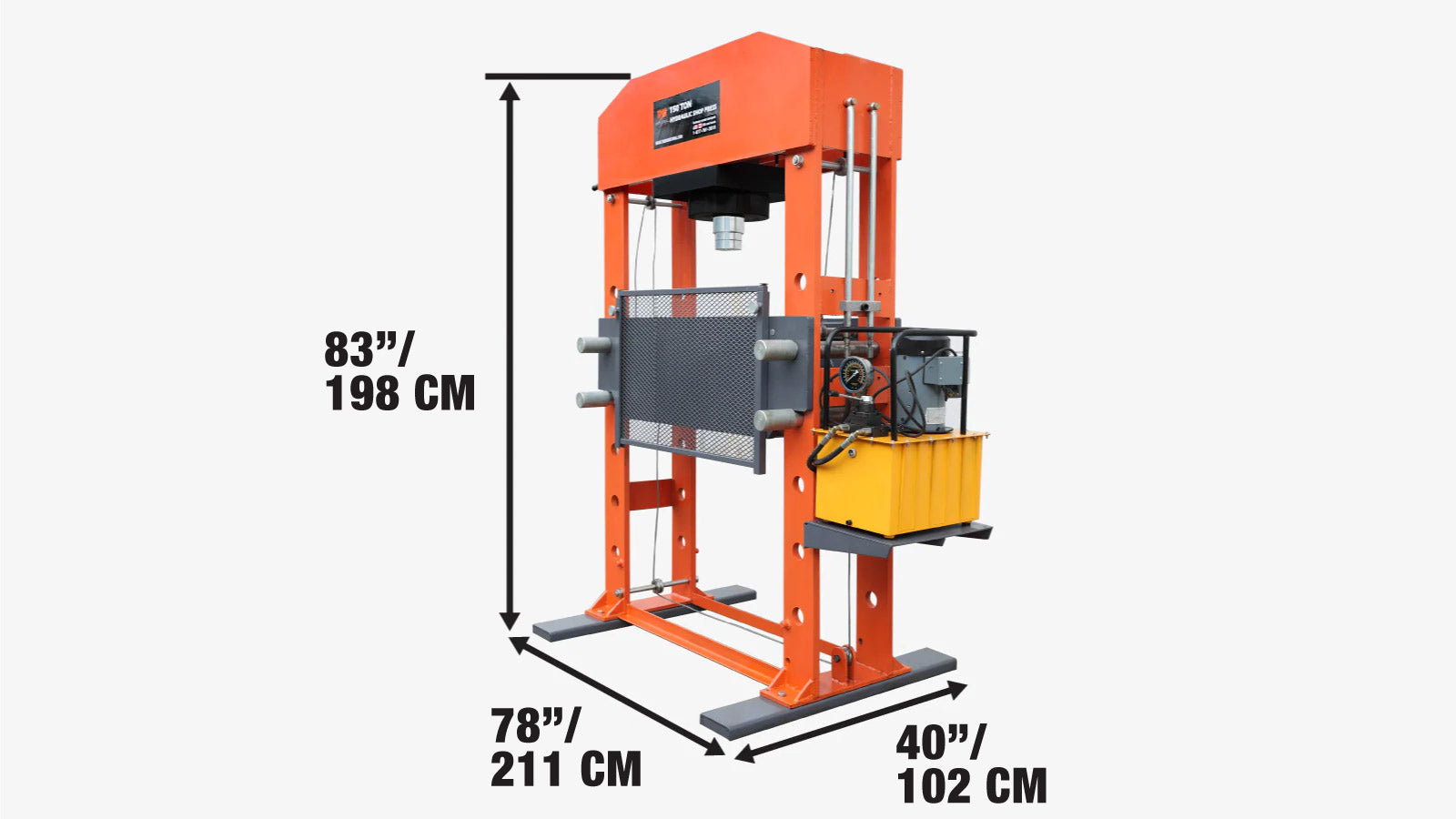

• Overall dimension: 78” x 40” x 83” (L x W x H)
• Frame internal width: 13-3/4”
• Frame internal length: 39-3/8”
• Ram stroke: 13-3/4”
• Ram diameter: 4-5/8”
• Ram left-right movement: 13”
• Ram pressing head diameter: 3-7/8”
• Grid guard: 36” x 23”
• Carriage bed workable opening: 34” x 16” (L x W)
• Carriage bed pin diameter: 2-3/16”
• Discharge pressure: 105-115%
• Max pump pressure: 8500 PSI

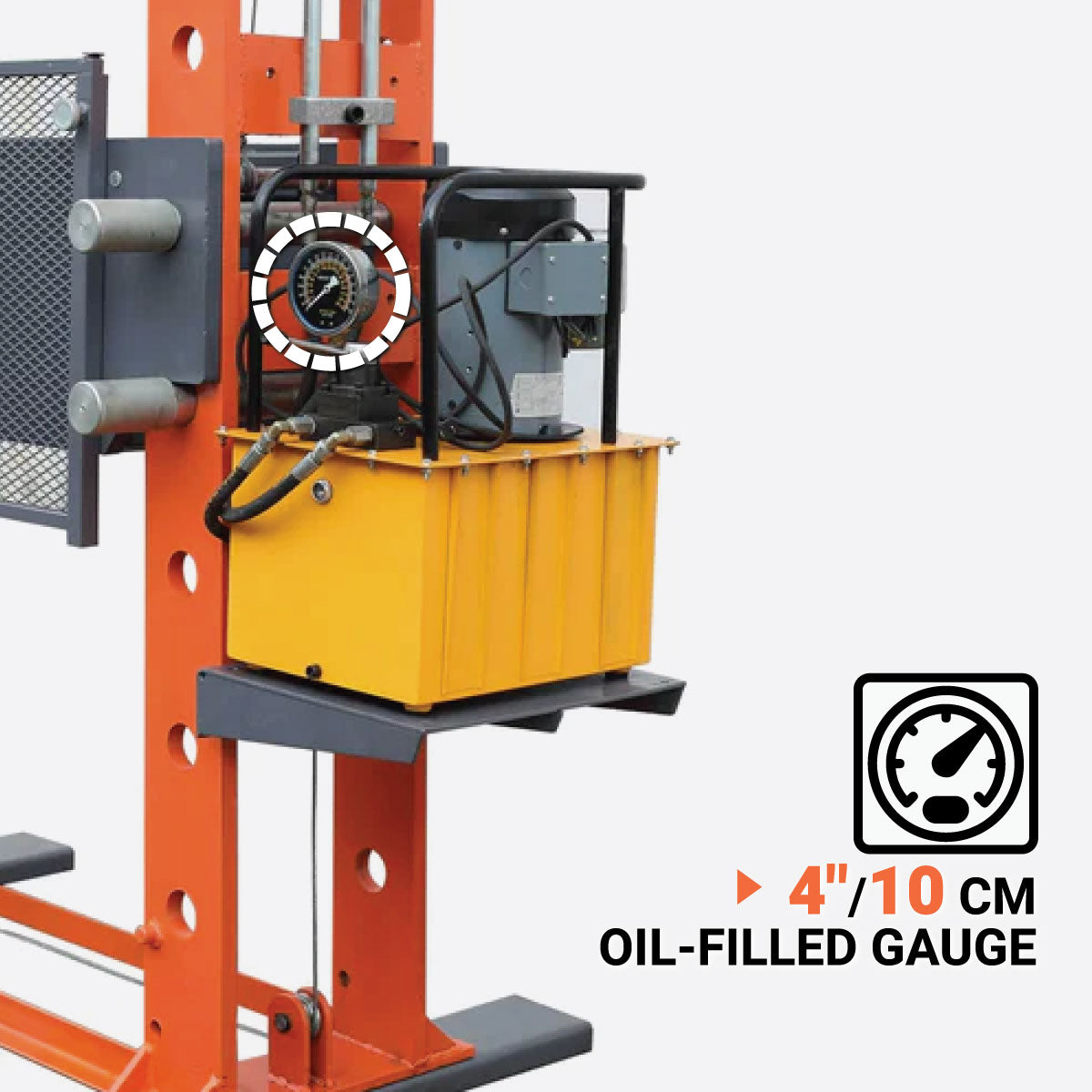

• Pressure gauge accurate to +/- 2.5%
• Maximum workpiece height allowed: 37”
• Hydraulic fluid for motor pump not included (ISO AW32 required)

• CSA approved motor: 115V 60Hz 2HP
• No-load speed: 1750 RPM

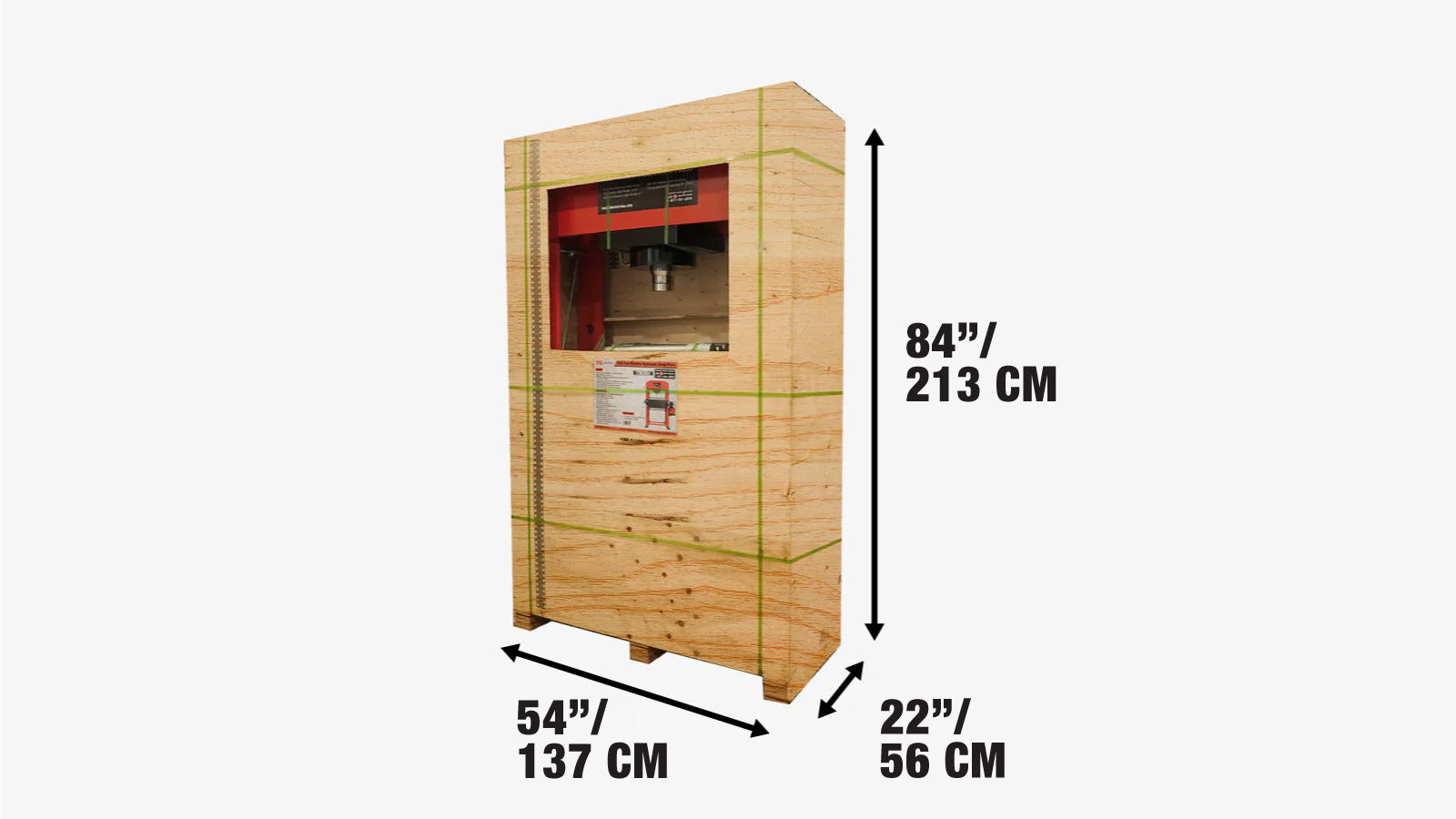

• Dimensions: 54” x 22” x 84”
• Shipping weight: 2700 lbs

Product Manual

Download here
