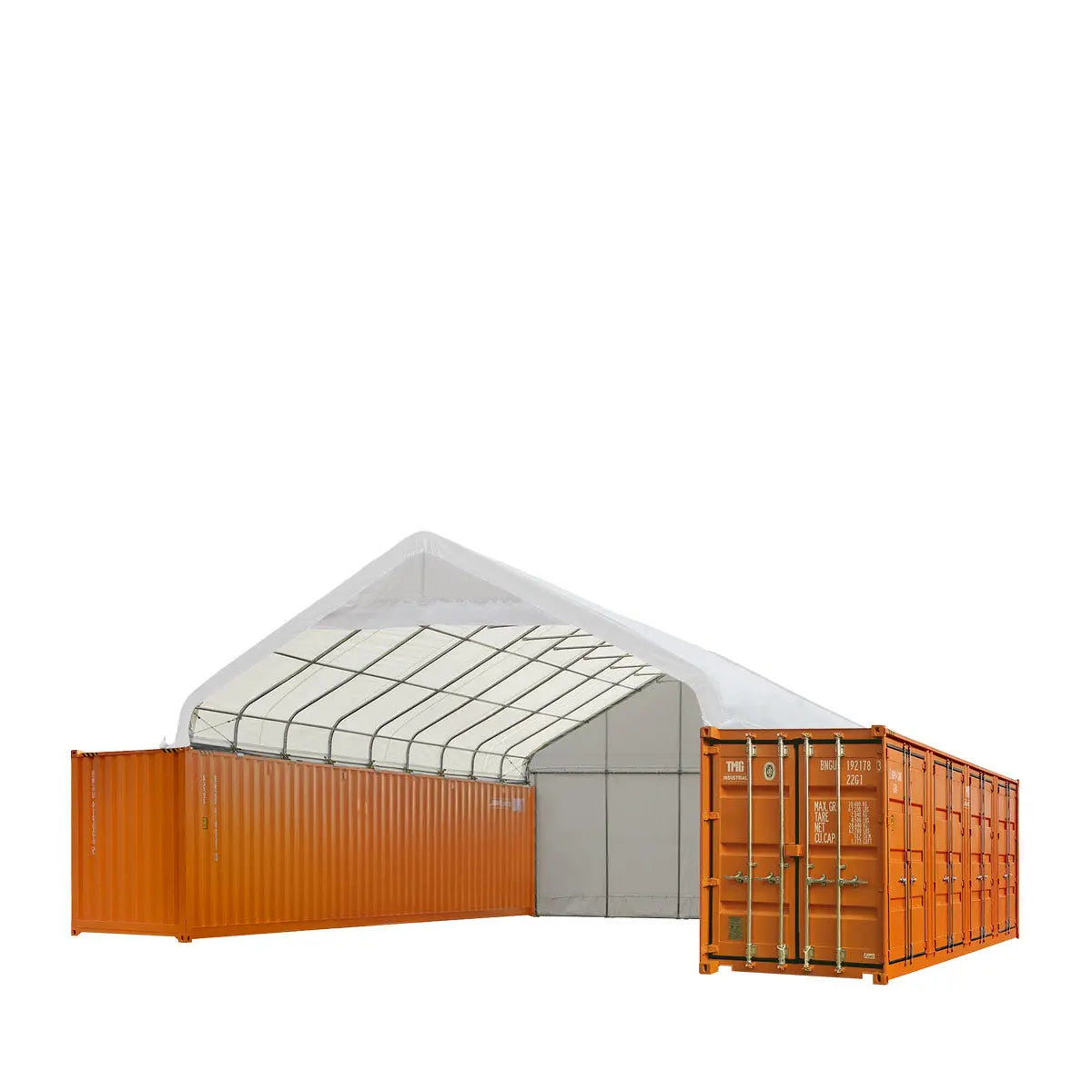

30' x 40' PVC Fabric Container Shelter, Peak Roof, with End Wall & Partial Front Drop, TMG-ST3042CVF (Previously ST3041CVF)

30' x 40' PVC Fabric Container Shelter, Peak Roof, with End Wall & Partial Front Drop, TMG-ST3042CVF (Previously ST3041CVF)

TMG Industrial 30' x 40' PVC Fabric Container Peak Roof Shelter with End Wall & Partial Front Drop Pro Series, Fire Retardant, Water Resistant, UV Protected, TMG-ST3041CVF
CURRENTLY IN STOCK
SKU TMG-ST3042CVF
$6,999.00 - $6,999.00
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$6,999.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
NFPA 701 test report — 30' x 40' PVC Fabric Container Shelter, Peak Roof, with End Wall & Partial Front Drop, TMG-ST3042CVF (Previously ST3041CVF)
1-888-467-5788
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts
Product Video

Features

Feature Image

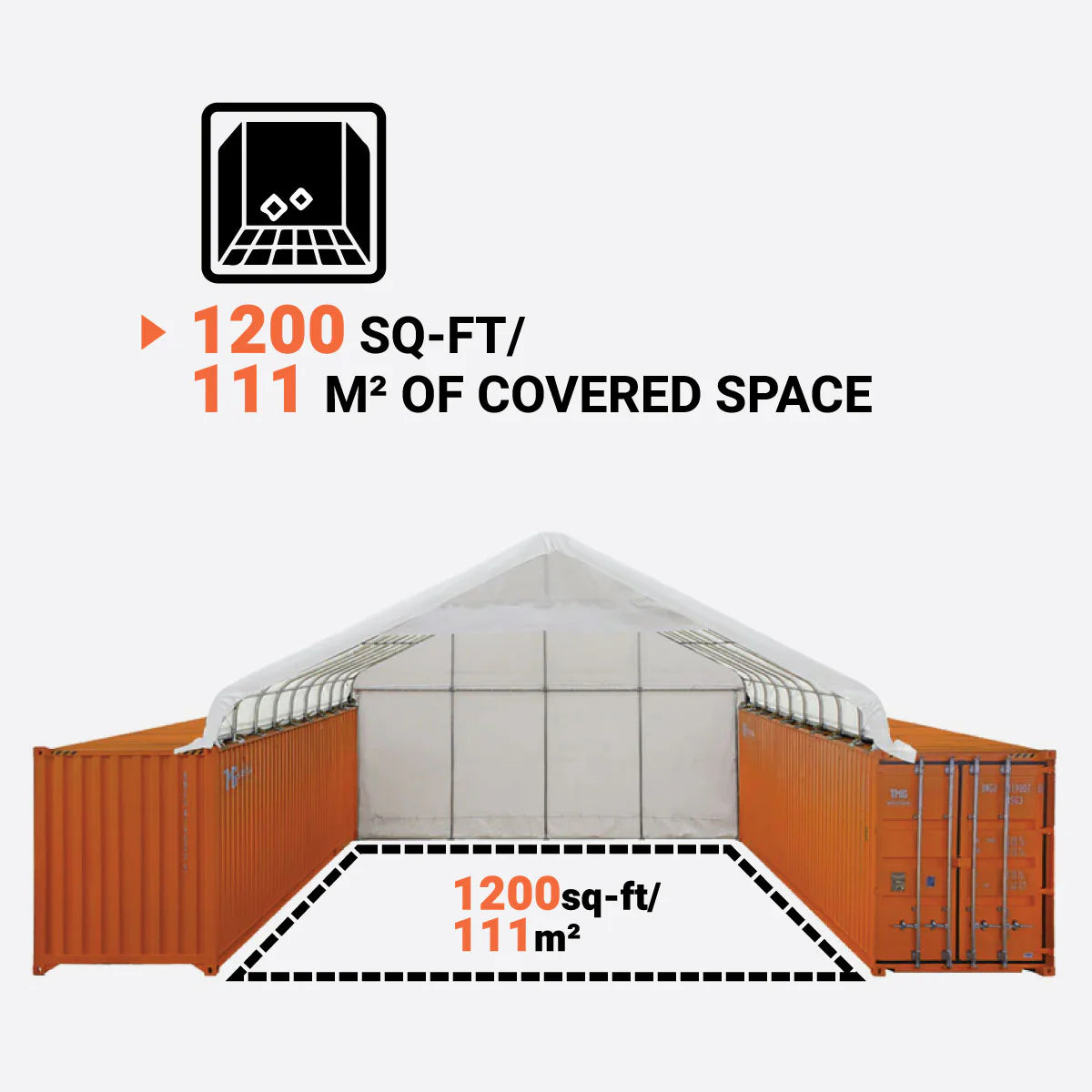

Ample outdoor storage room with 1200 square feet of covered space
Feature Image

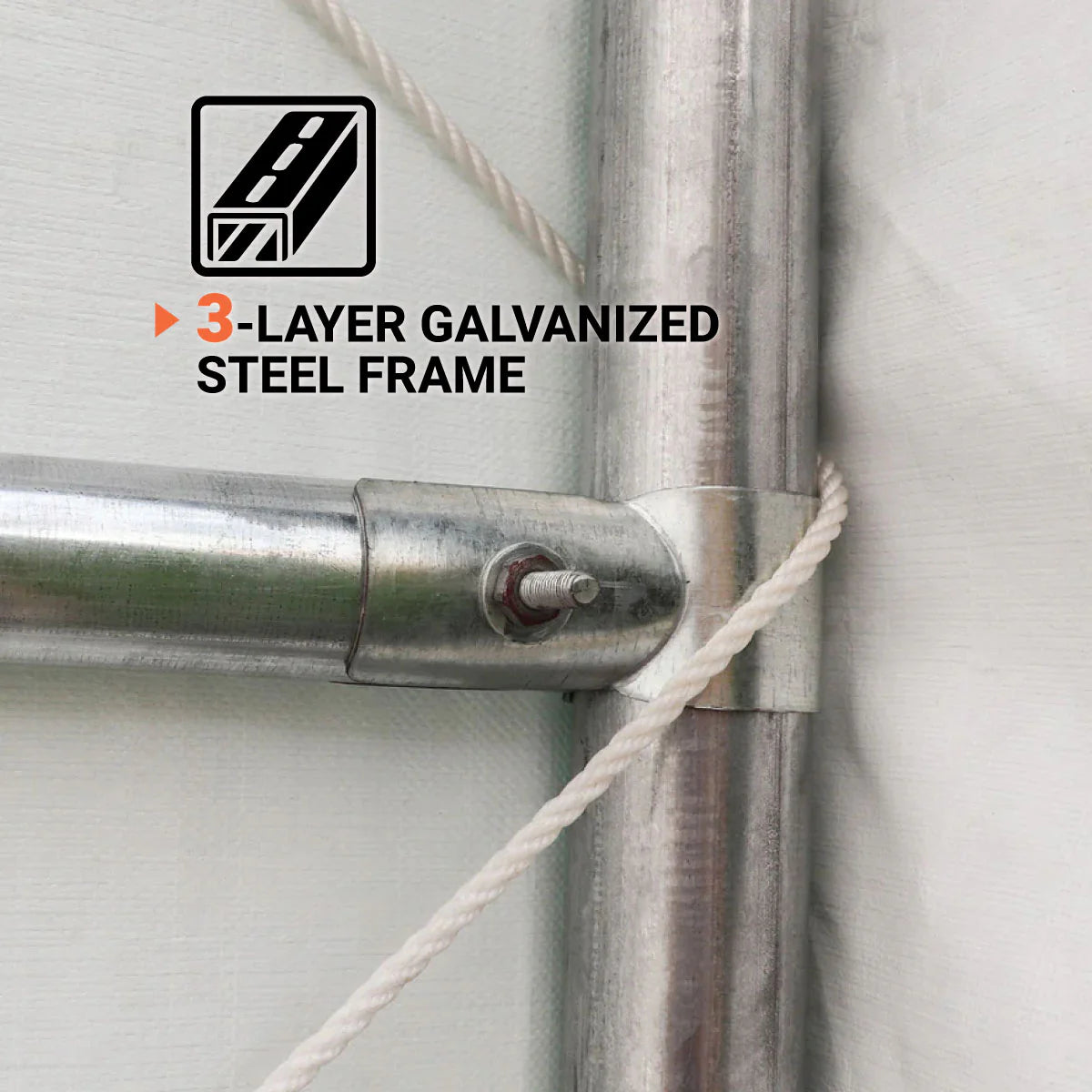

Long lasting commercial grade 3-layer galvanized steel frame structure
Feature Image

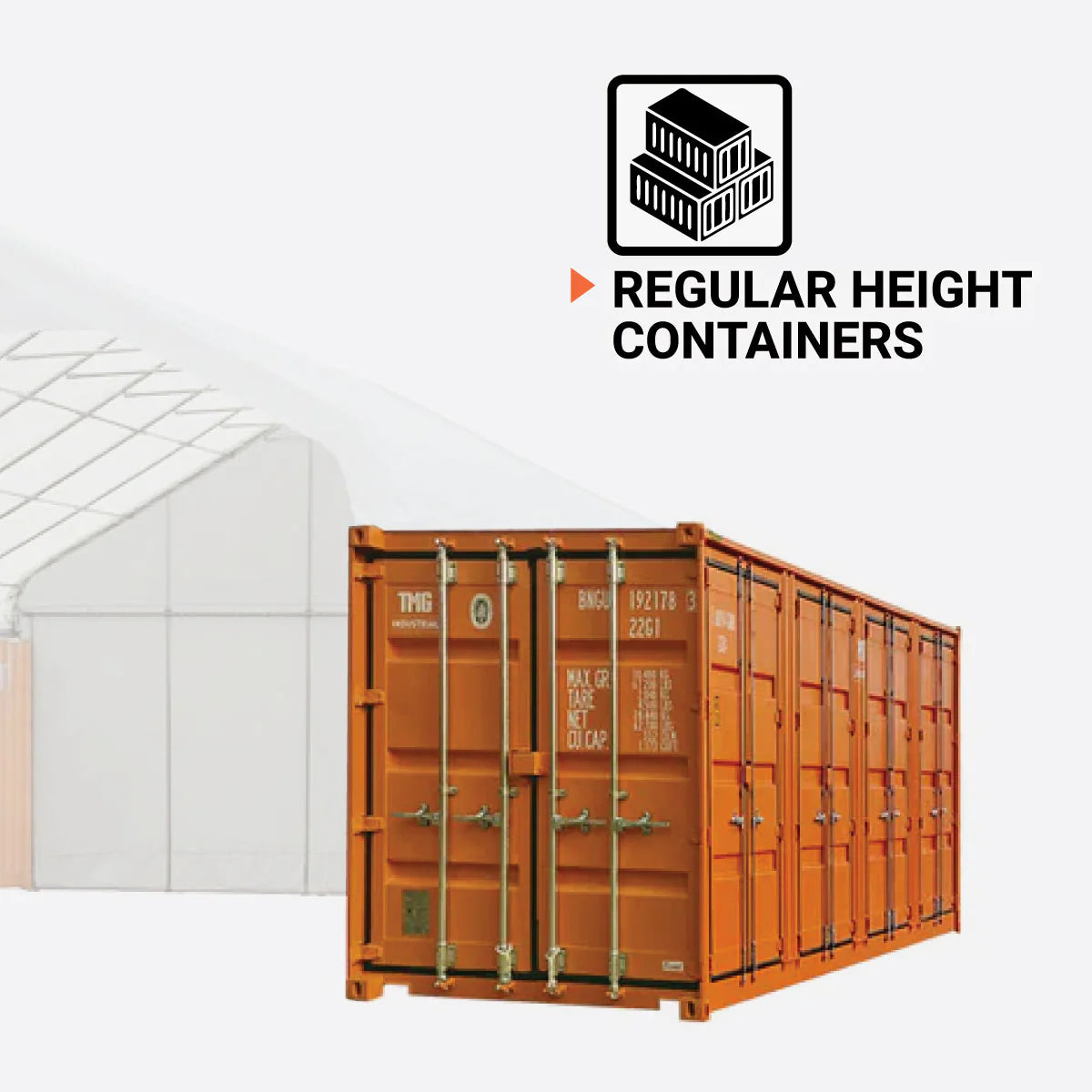

Mounted on regular height containers for versatile storage operations
Feature Image

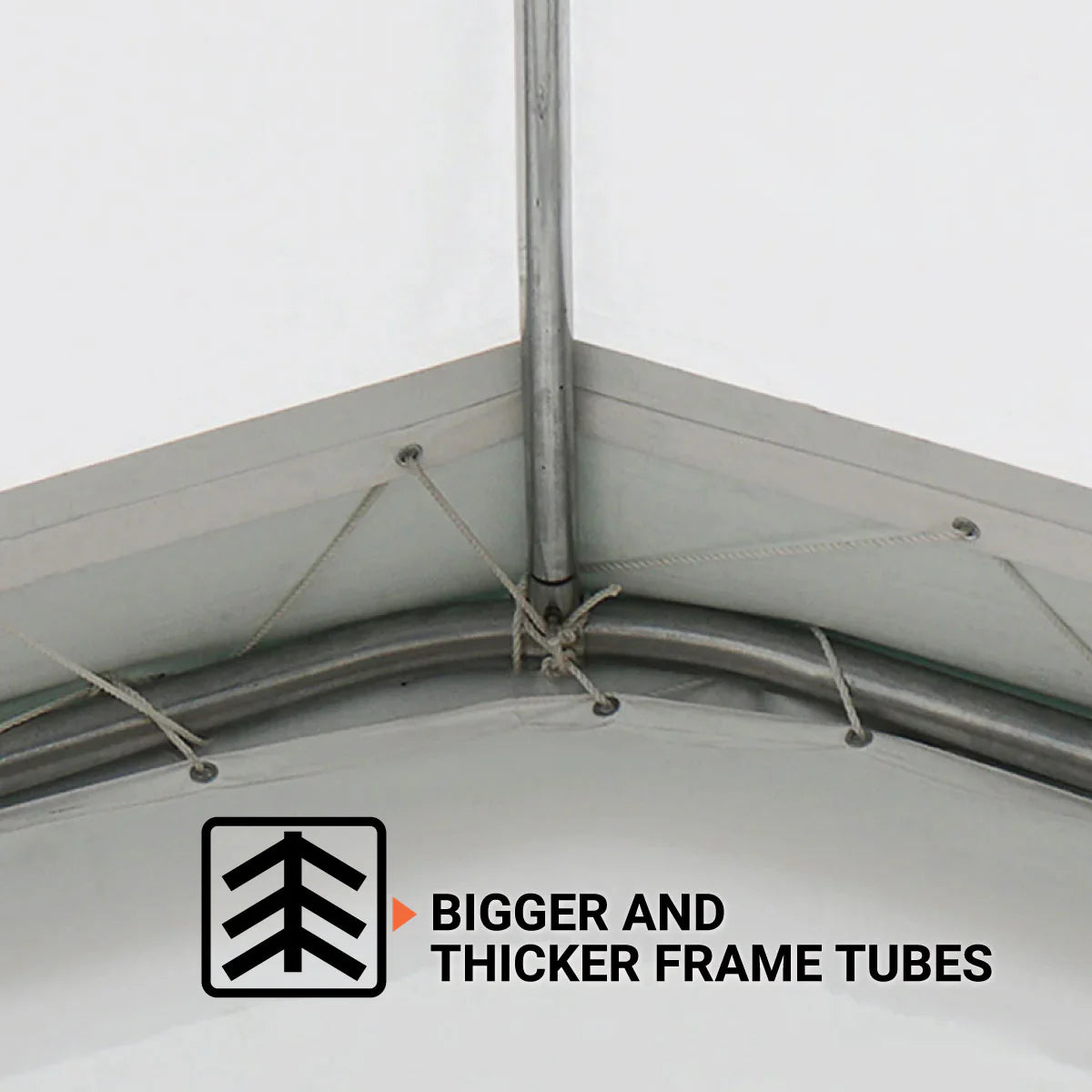

Upgraded bigger and thicker frame tubes provides more structural strength
Feature Image

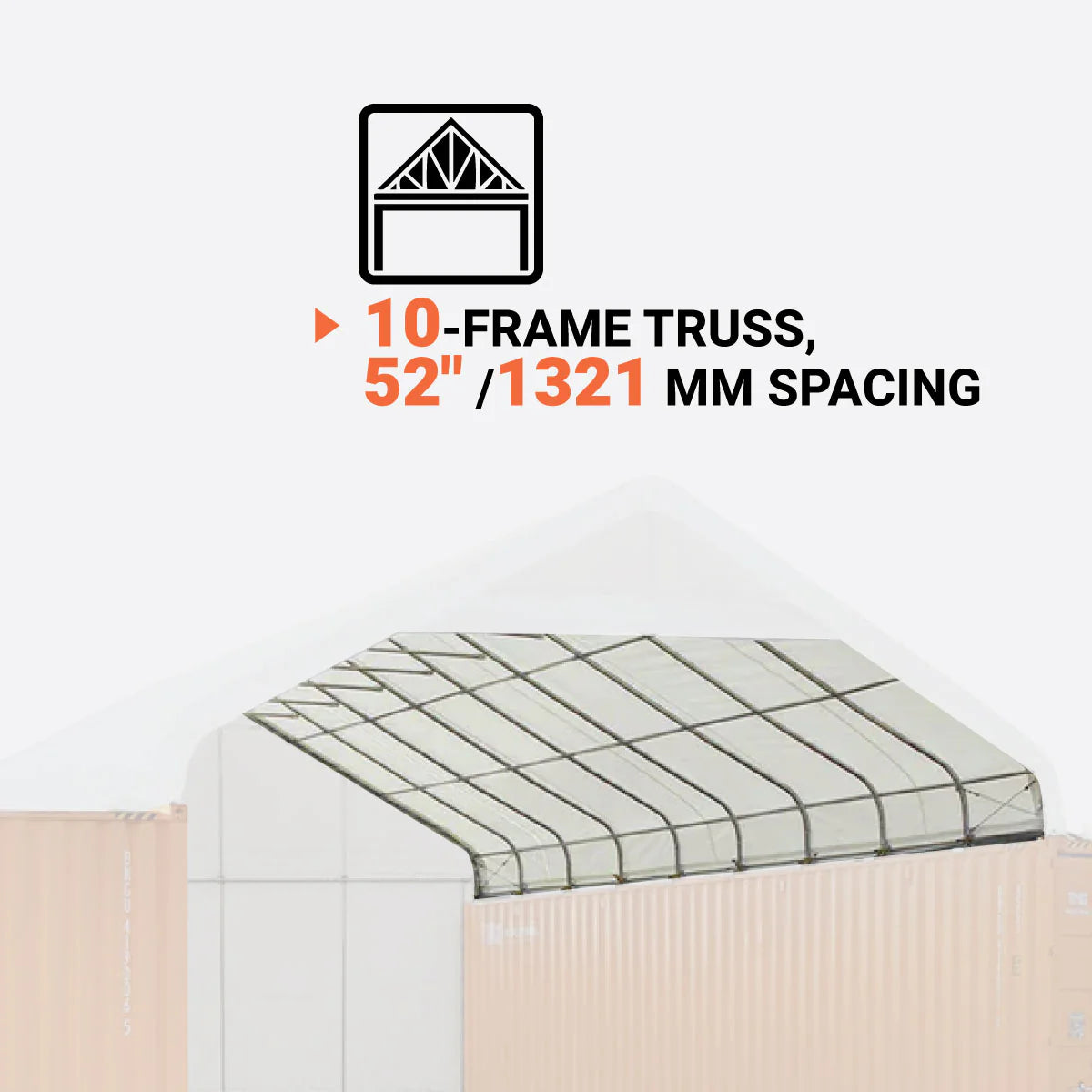

10 groups of truss frames and tight 52” truss spacing stand up to all weather
Feature Image

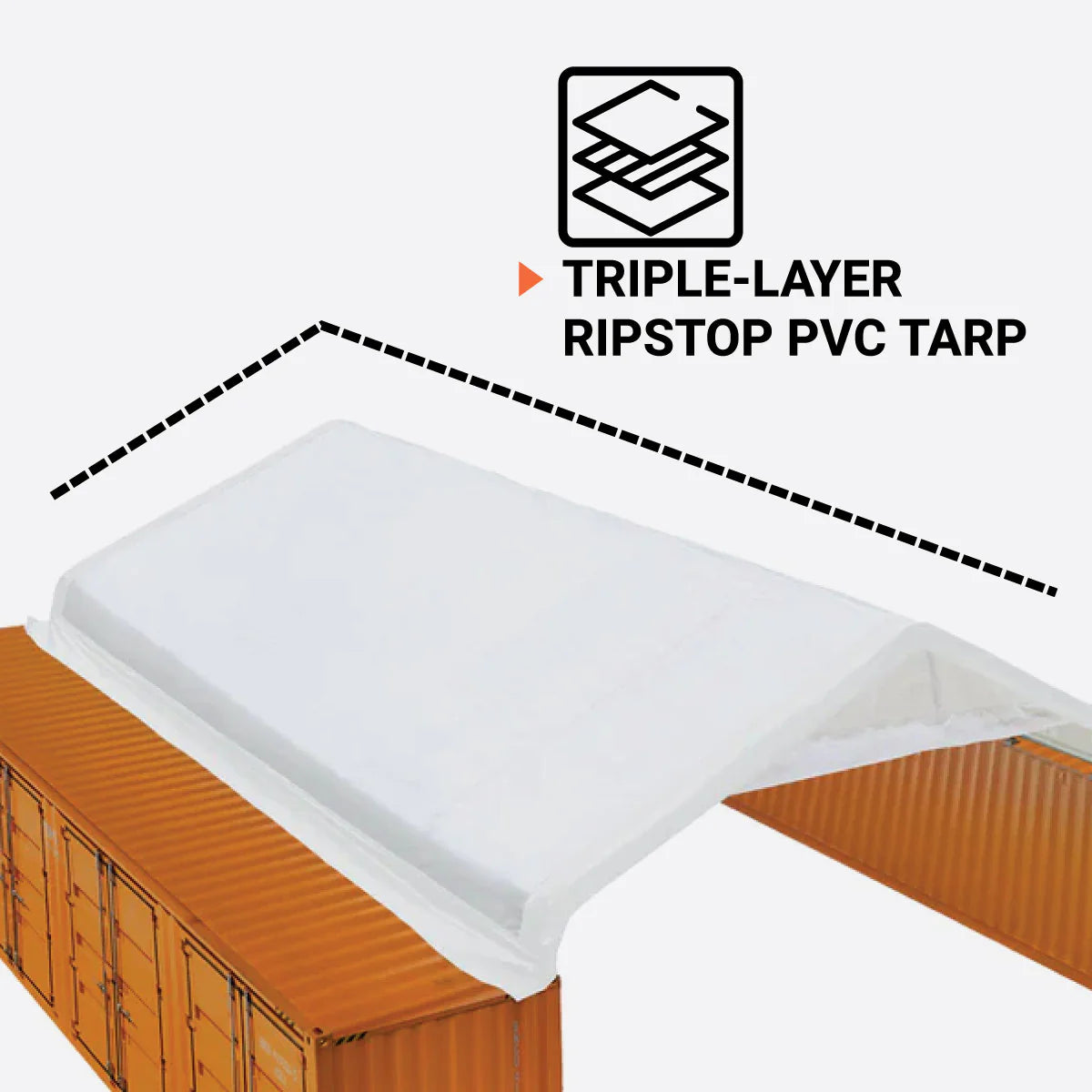

Commercial grade triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover

Specifications

  • Exact floor footprint (W x L): 30’ x 39’5" (9.15 x 11.97 m)
  • Truss spacing: 52" (1.33 m)
  • Number of Truss Frames: 10 groups
  • Truss tubes: 58 mm – 1.9 mm
  • Purlin tubes: 42 mm – 1.3 mm
  • Peak ceiling height from the base (the top of the container): 10' (3.0 m)
  • Back wall structure: Provided for standard container height; A backwall kit for high-cube containers is available in parts stores.
  • Cover material: 17 oz (450 gsm) polyvinyl chloride (PVC) tarpaulin fabric
  • Welding: Required for all footplates
  • Containers: Not included

    • Baseplate Installation Positions (plan ahead for width):

  • Inner container edges to maximize interior clearance and usable square footage.
  • Outer container edges to allow snow runoff and prevent accumulation in high-load regions.
30' x 40' PVC Fabric Container Shelter, Peak Roof, with End Wall & Partial Front Drop, TMG-ST3042CVF (Previously ST3041CVF)-specifications-image

Product Description

The TMG-ST3042CVF PVC Fabric Container Shelter offers a durable, easy-to-assemble outdoor storage solution or workshop. At roughly 1200 square feet, it provides ample space for stockpiling materials, working on projects, or parking vehicles. It mounts on shipping containers or pony walls for maximum height and versatility on any job site.

Made from commercial-grade, triple-layer PVC fabric, the shelter is tear-resistant and long-lasting. This fire-retardant fabric is thick, durable, and commonly used in large commercial structures like stadiums.

With approximately 30' of entry space, the shelter allows for a dynamic workflow. Its rigid end wall protects you from the elements while allowing natural light to enter. The white PVC fabric reflects UV rays and illuminates the interior, helping you save on utility costs. Use this shelter for tools, equipment, or any ongoing maintenance and labor needs.

Custom-made front wall kit for the TMG-ST3042CVF container shelter is available for separate purchase: TMG-ST30FW8V for regular height containers, and TMG-ST30FW9V for high cube containers. We also carry this model without the end wall: TMG-ST3042CV. Replacement covers available for order here TMG PARTS STORE.

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings, or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

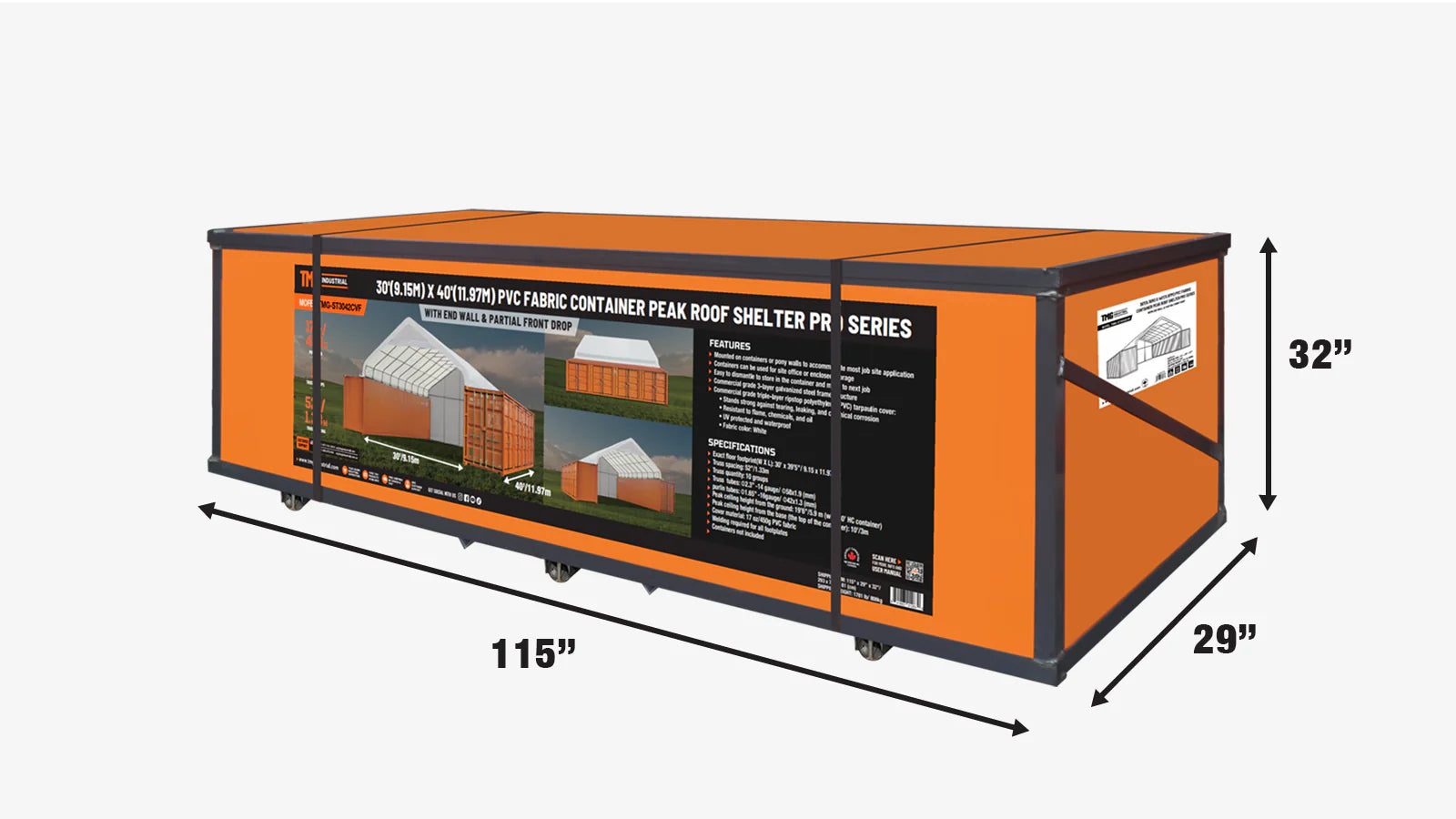

  • The product is packed in a metal crate shipping box
  • Shipping dimension: 115” x 29” x 32” (L x W x H)
  • Shipping weight: 1815 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
30' x 40' PVC Fabric Container Shelter, Peak Roof, with End Wall & Partial Front Drop, TMG-ST3042CVF (Previously ST3041CVF)-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
