TMG Heavy Series™ 50' x 40' Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Enclosed End Wall and Front Drop, TMG-DT5040CF-PRO
FREE
shipping to most locations in
USA
Learn More
Product Manual

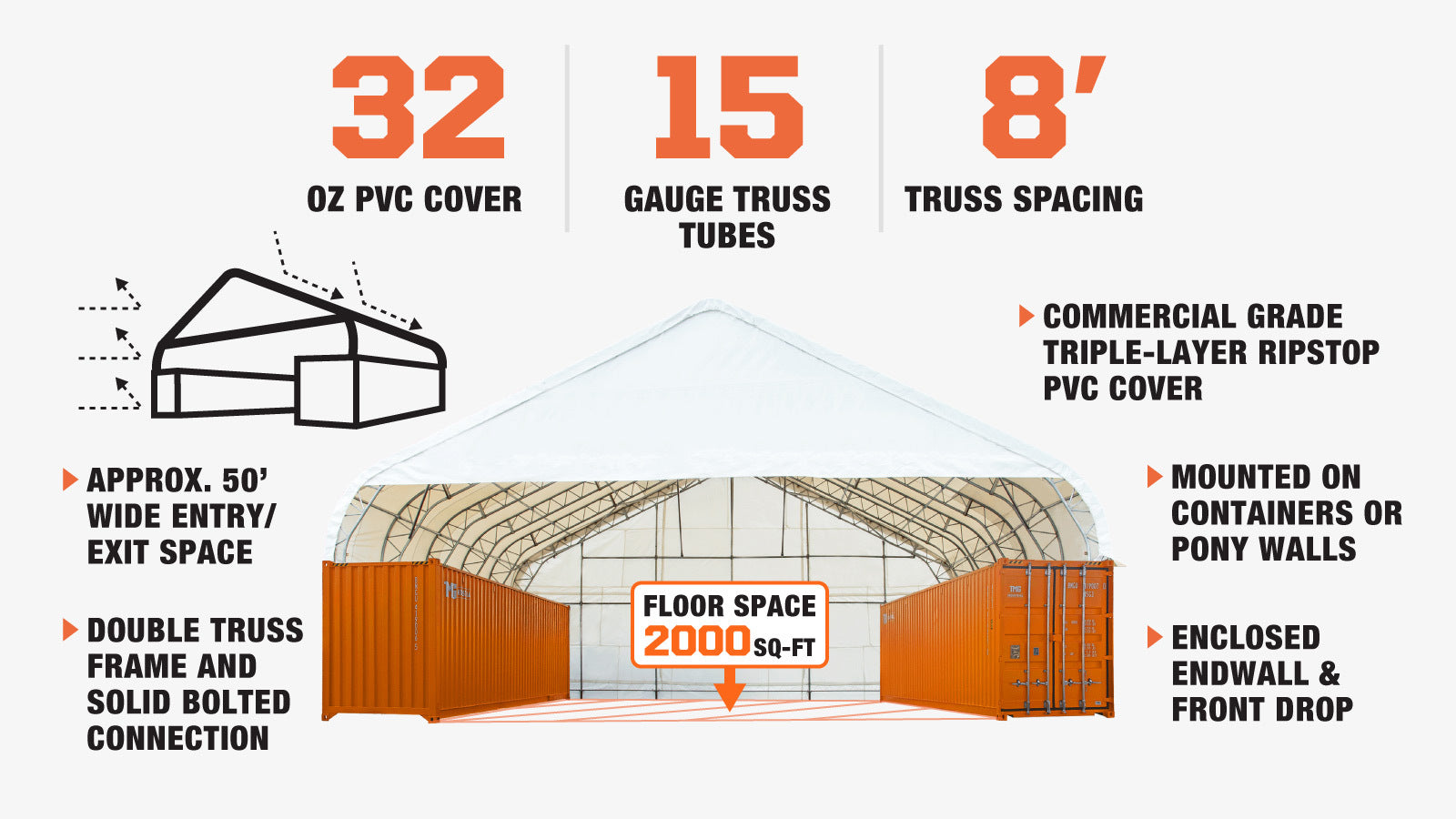

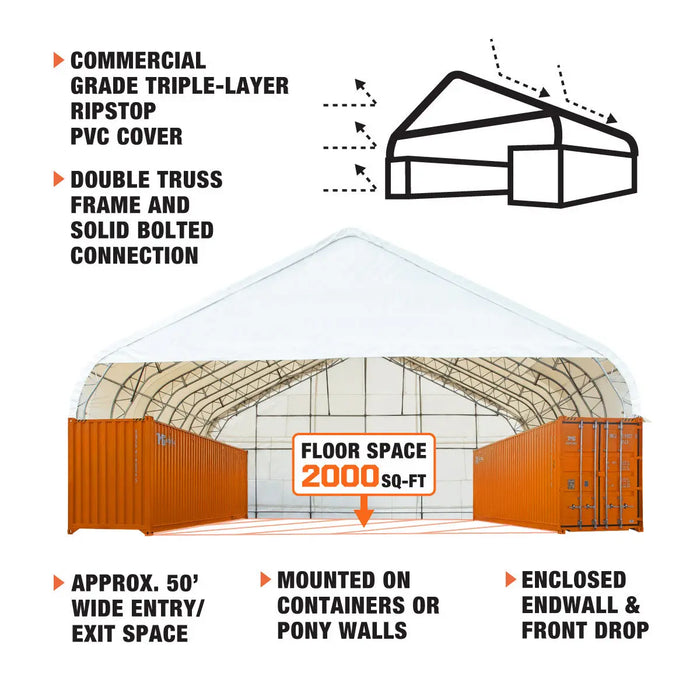

Features
Features
- Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

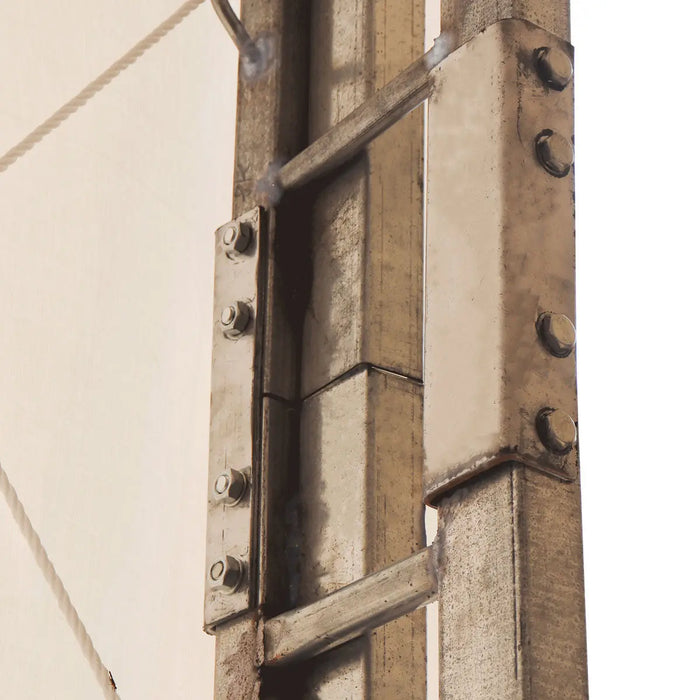

- Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
- Enclosed endwall & front drop provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White
- DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability
- Approx. 50’ wide entry/exit space on both ends that allow for easy parking, machine operation and dynamic workflow to run throughout
- Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
- PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

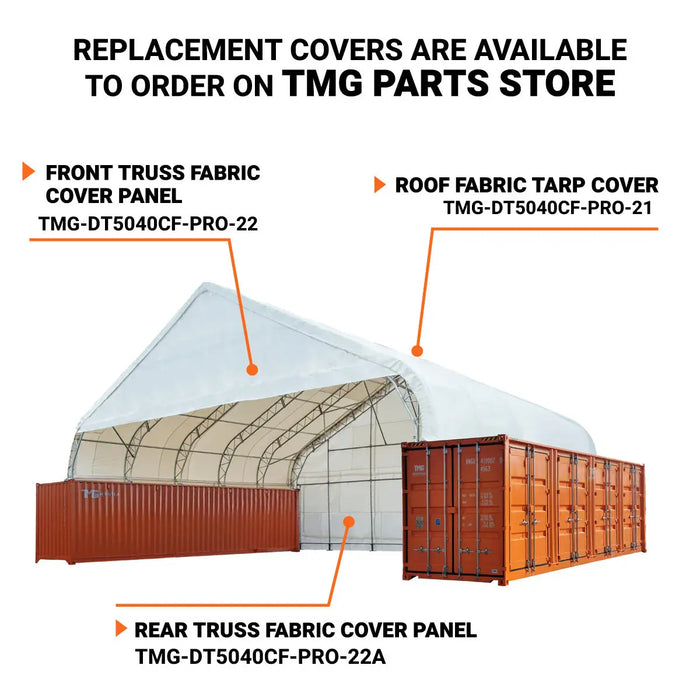

- Replacement covers available for order here TMG PARTS STORE
Specifications
Specifications
- Package configuration: TMG-DT5040CF-PRO includes TMG-DT5040C, TMG-DT50FCF and TMG-DT50BW8V

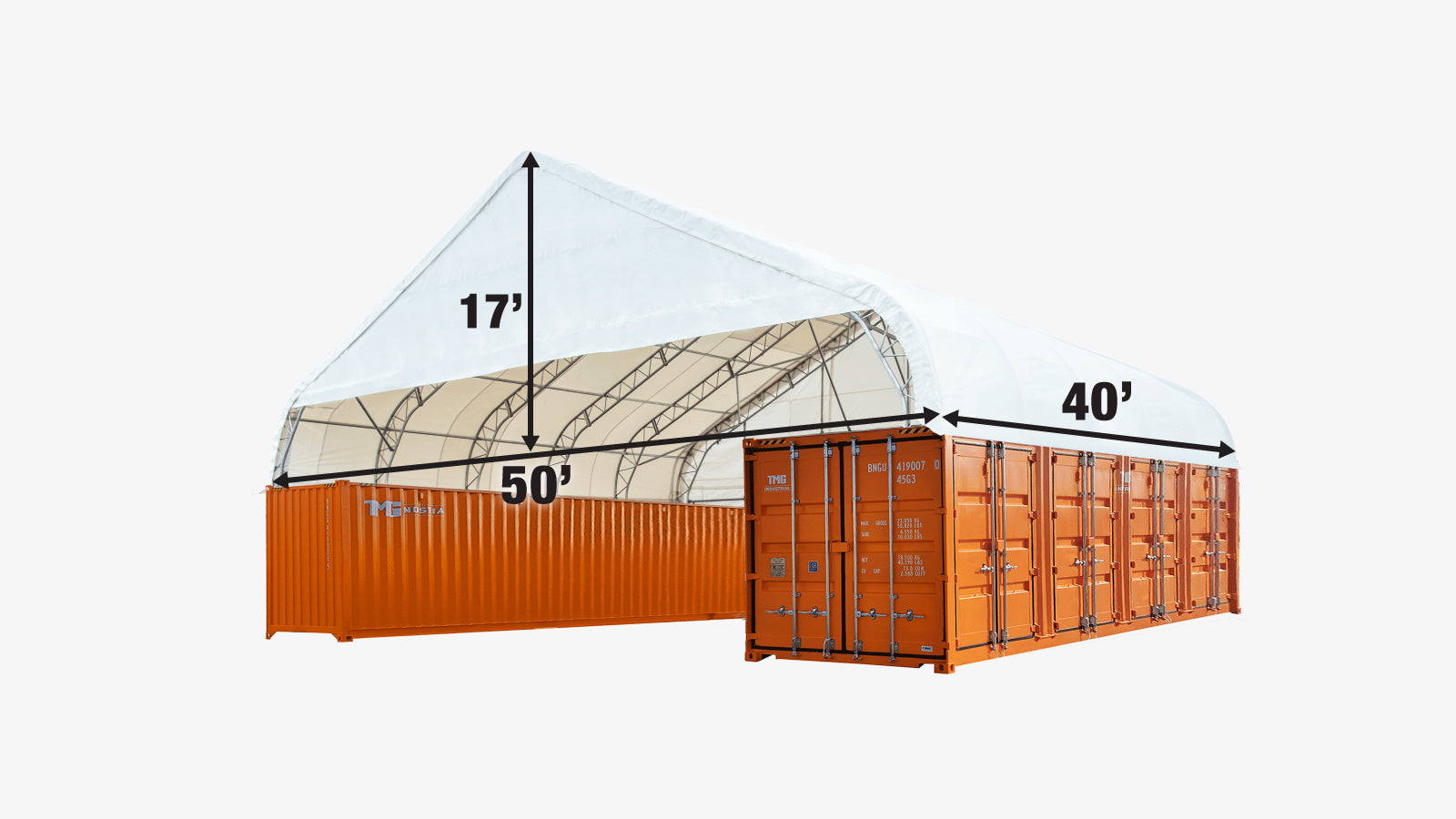

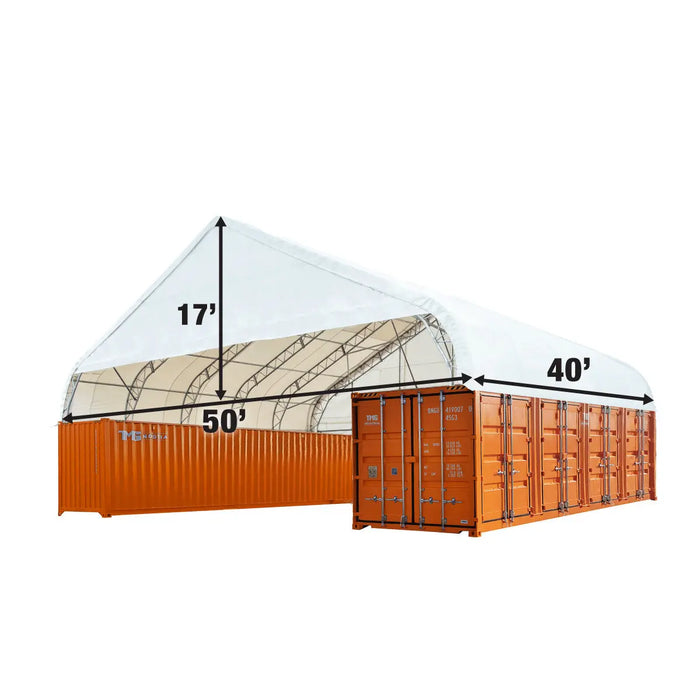

- Exact floor footprint: 50’4” (W) x 40’ (L)
- Truss spacing: 8’
- Peak ceiling height from the container top: 17'
- Peak ceiling height from the ground: 26' (with standard container height)
- Front drop clearance: 15'
- Truss tubes: 2-½” – 15 GA (approx.)
- Purlin tubes: 2-½” – 15 GA (approx.)
- Cover material: 32 oz PVC fabric (white color)

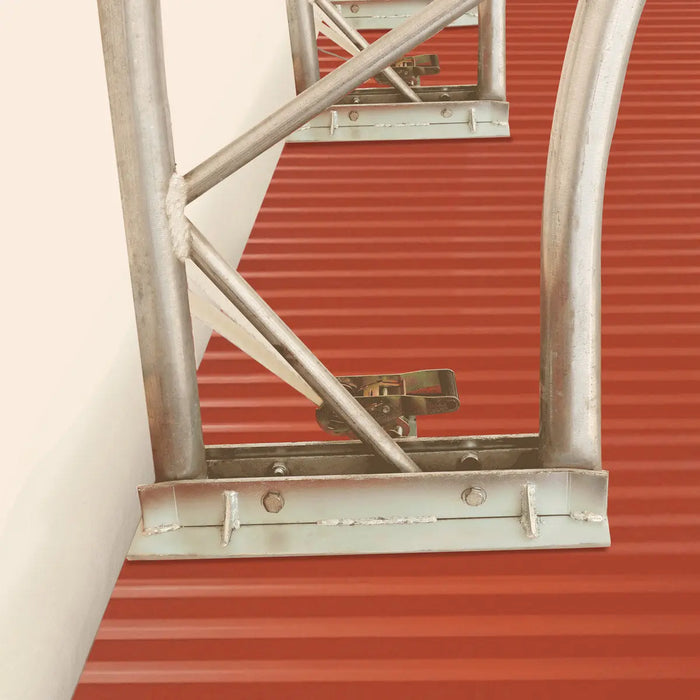

- Welding required for all footplates
- Containers not included
- Inner container edges to maximize interior clearance and usable square footage.
- Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

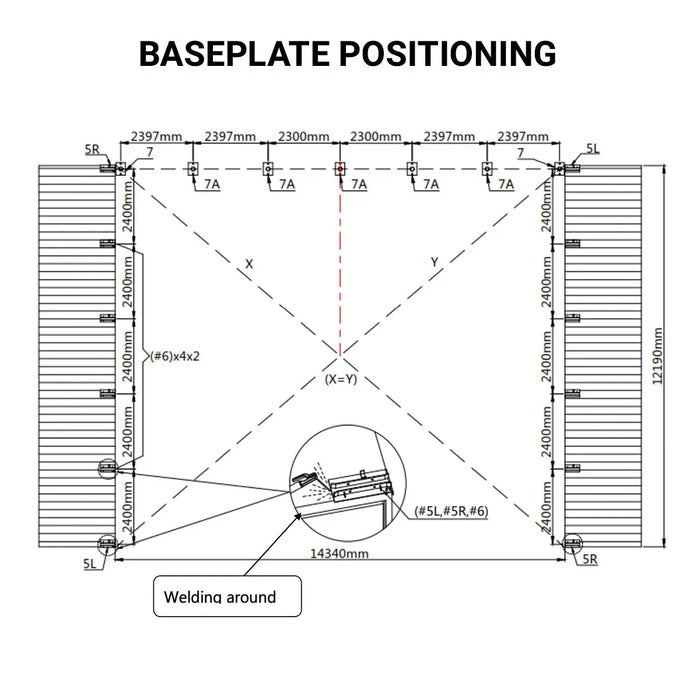

Baseplate Installation Positions (plan ahead for width):
Product Description
Product Description
The TMG-DT5040CF-PRO Dual Truss PVC Fabric Container Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 2000 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any standard containers for versatile useability whether you're working in remote, rural or industrial locations.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The enclosed end wall and front drop provide an extra layer of protection for your machinery and weather sensitive cargo. End wall is designed for standard 40' GP containers; a 14" base will need to be added if using HC containers.

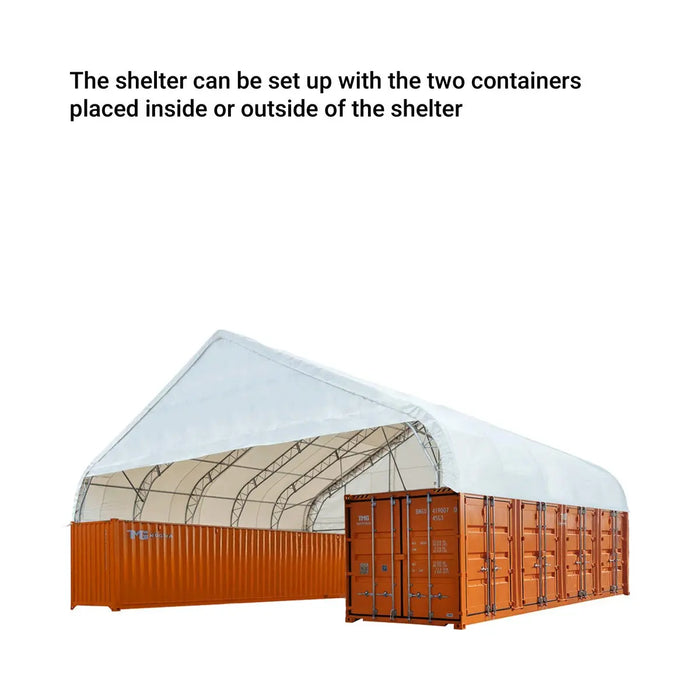

Double trusses also run throughout the whole interior which reinforces it for exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it's recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.

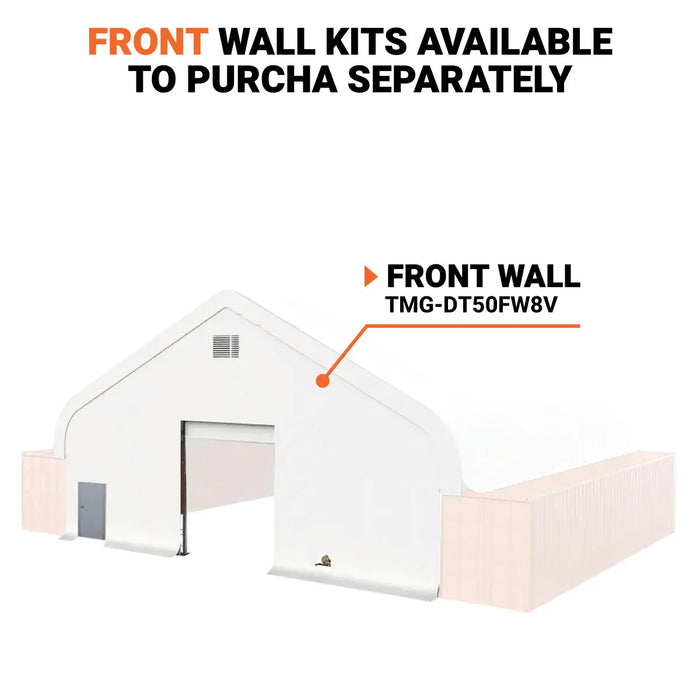

Custom-made front wall kit for the TMG-DT5040CF-PRO container shelter is available for separate purchase: TMG-DT50FW8V.
Additional Info
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances, it will take us 2 to 3 business days to process and ship the order. Delivery may take up to 10 to 15 business days, depending on your location and accessibility.

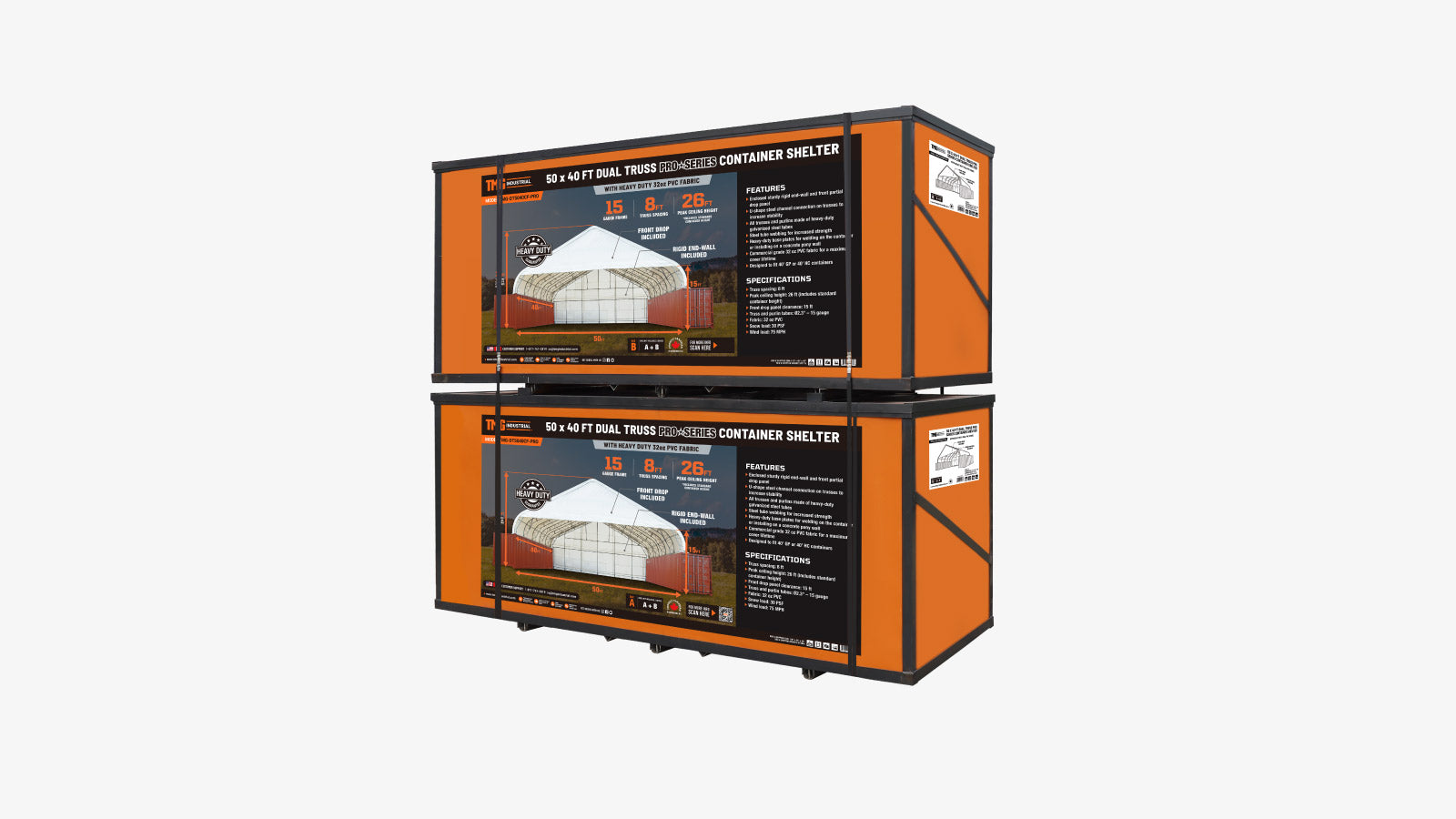

- TMG-DT5040C - 2 boxes (Box A and Box B), each 115" x 45" x 49" (L x W x H); combined shipping weight: 5235 lb
- TMG-DT50BW8V - 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 645 lb
- TMG-DT50FCF - 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 200 lb
- Total: 4 packages; total shipping weight: 6080 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
