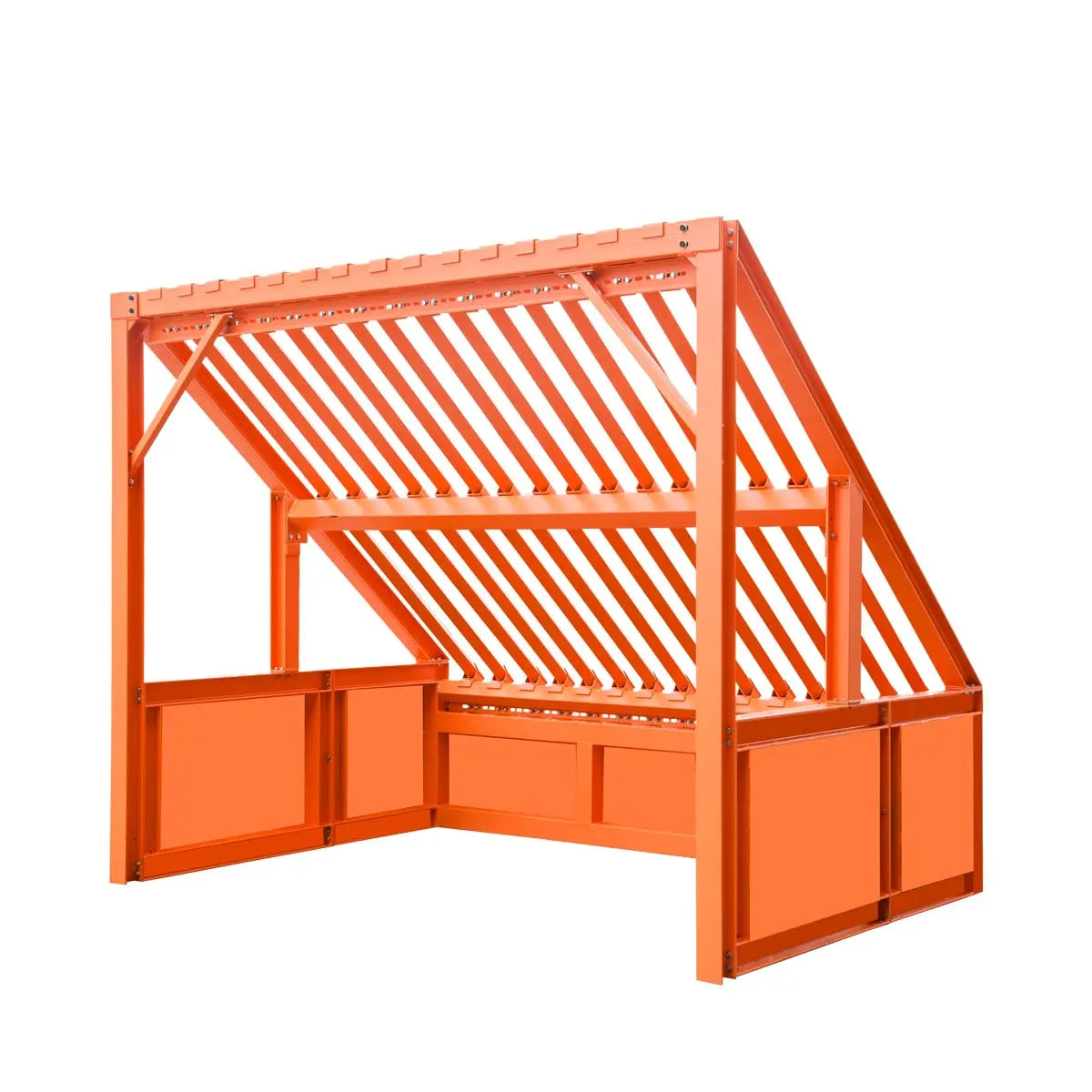

10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4" x 4" I-Beams, 5000 lb Load Capacity, TMG-RS10
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
Specifications
Specifications

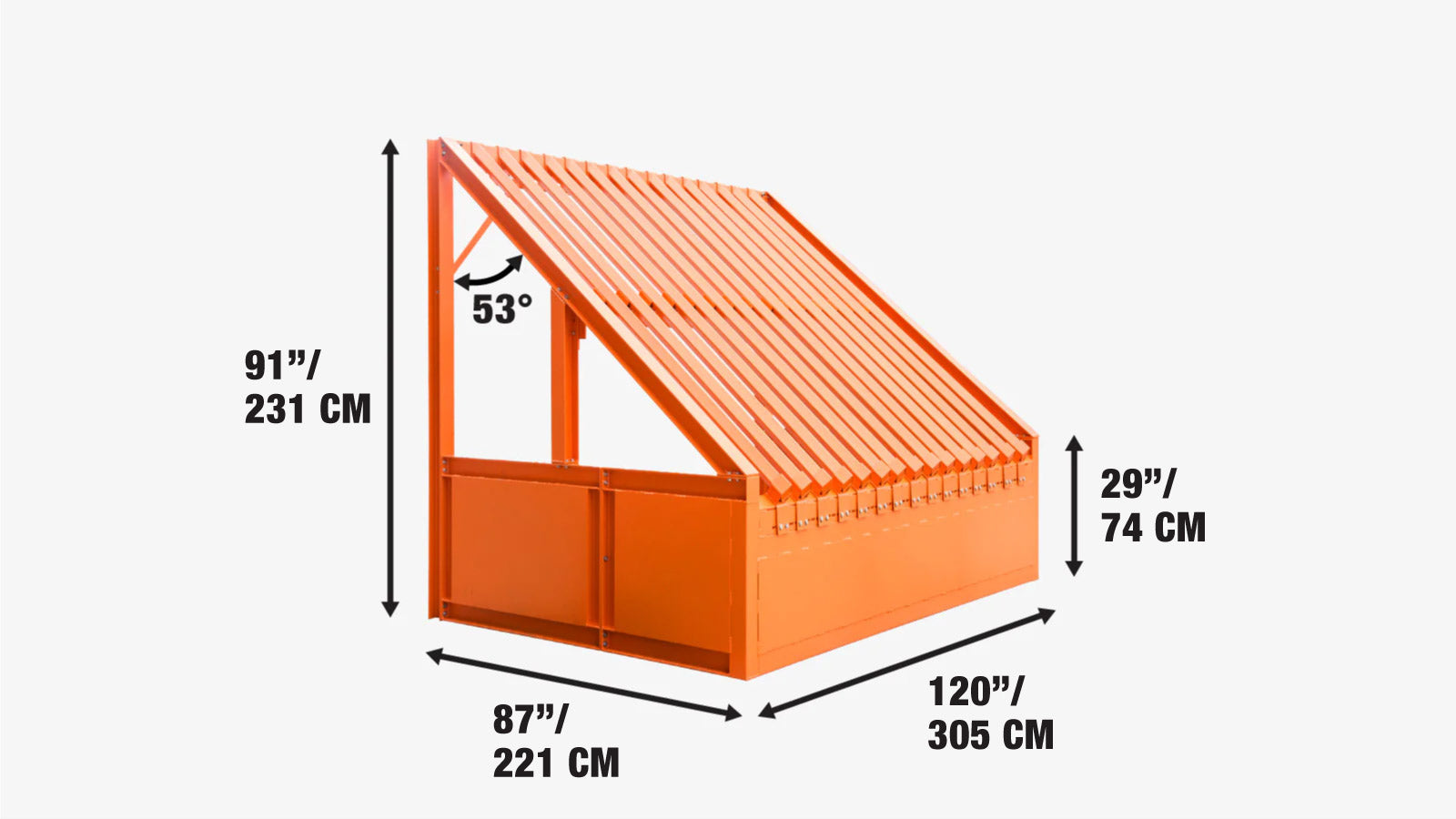

- Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
- Average load capacity: 5000 lb
- Primary frame:
- 4” x 4” I-beam posts
- 4” x 4” crossing square tubing
- Sidewall and front wall steel plate: 10 GA
- Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
- Standard bar spacing: 3”
- Standard bar quantity: 18 (3” spacing)
- Minimum bar spacing: 1” (extra deck bars required)
- Maximum bar quantity: 26 (1” spacing)
- Maximum bar spacing capacity: 5”
- First and the last deck bar opening: 2-¾”
- Slope angle: 37°
- Spare deck bars sold separately
- Assembly required
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

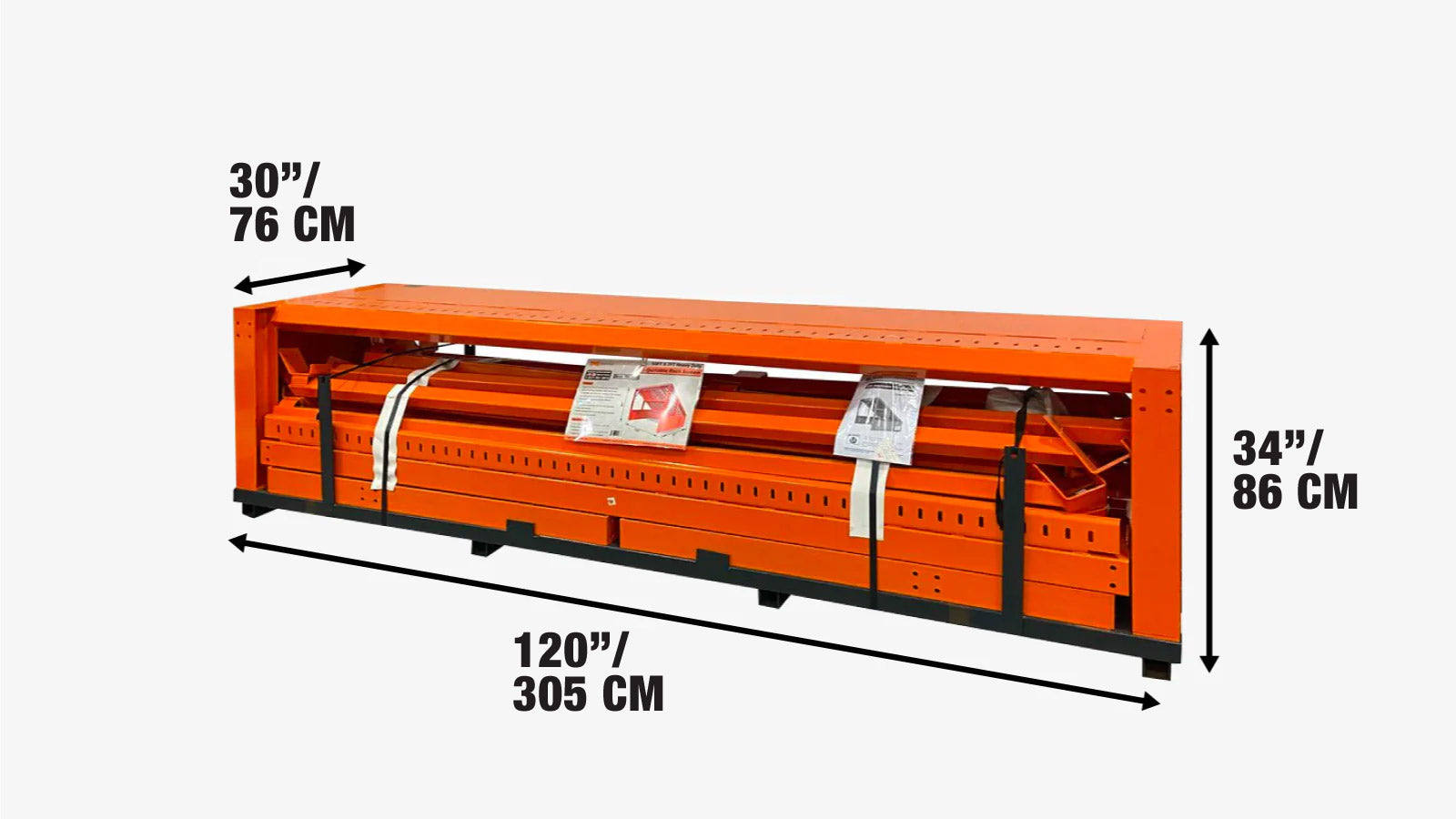

- This product is packed in a metal shipping crate
- Shipping dimension: 126” x 34” x 31” (L x W x H)
- Shipping weight: 2345 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
Product Description
Product Description
The TMG-RS10 Heavy-Duty Static Grizzly Rock Screen makes the screening of bulky, mixed loads simple and efficient. Sort materials with ease by always having this screen available at your work yard or job site. Used extensively in a number of industries including open-pit mining, recycling, crushing, aggregates, site development, demolition and landscaping. This screener is built tough, made to last and will handle anything you can throw at it.
Adjustable bolt-on deck bars with minimum spacing option of 1" (extra deck bars required) and maximum of 5" are adaptable to fit your needs, with 3" spacing standard. These bars have a diamond-shaped, self-cleaning design that requires little, if any, maintenance. Commonly used for sorting oversized material before screening or crushing, and the 37° slope allows rocks and debris to fall straight to the ground instead of cluttering your work area.
4" x 4" I-beams and square tubing main frame are powder coated and resistant to rust, wear and corrosion. Large 10' x 7' sift accepting area separates your profits from your waste and gets the job done faster. Quick to assemble, industrial strength construction design has a 5000 lb working capacity for your biggest, roughest jobs.

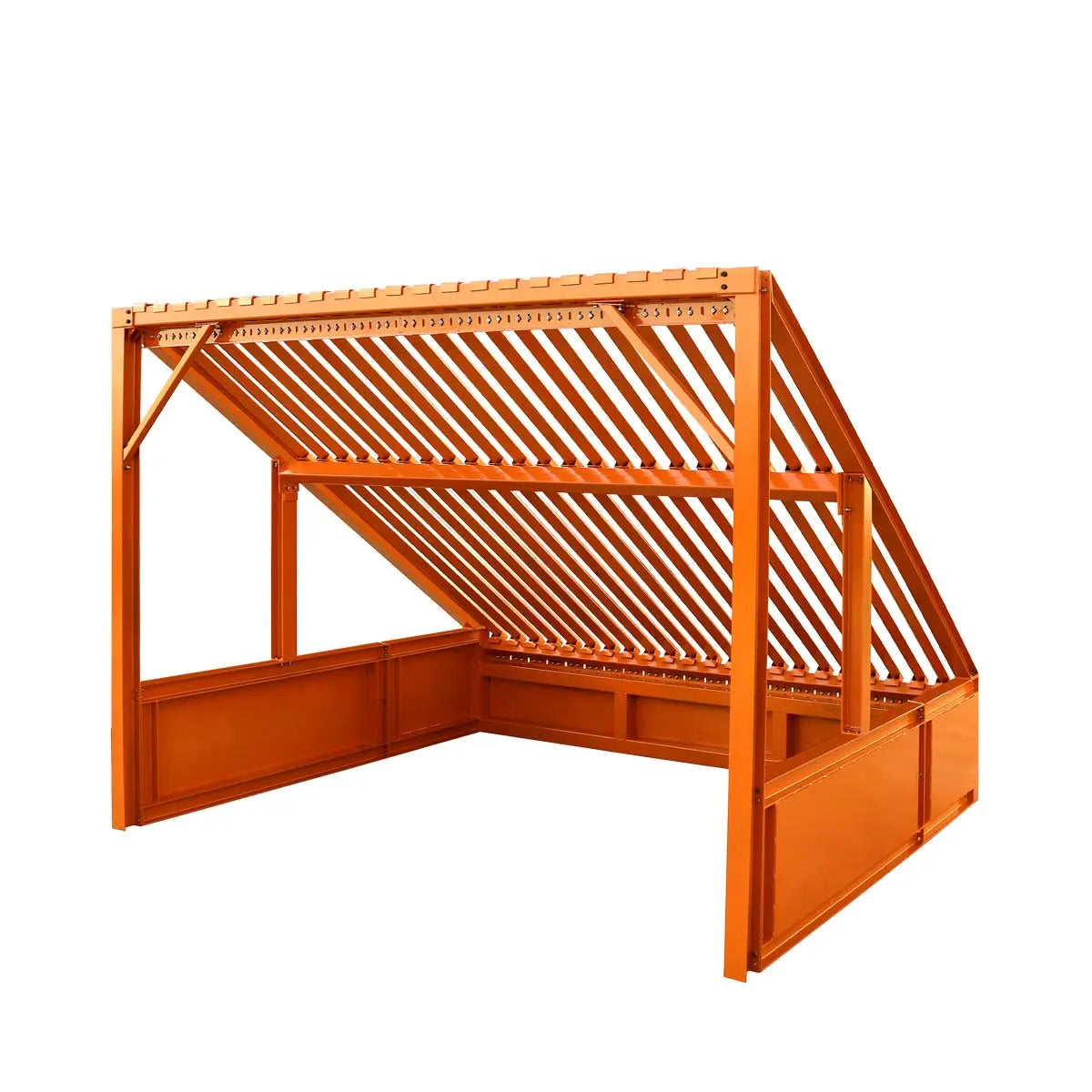

We also carry a larger model of this screen: TMG-RS12
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |  | |
|---|---|---|
| Grizzly Rock Screen | ||
Structure Size (L x W x H) |
|
|
Sift Accepting Area |
|
|
Average Load Capacity |
|
|
Primary Frame Specs |
|
|
Sidewall & Front Wall Steel Plate |
|
|
Deck Bar Size |
|
|
Deck Bar Length |
|
|
Deck Bar Gauge |
|
|
Standard Bar Spacing |
|
|
Number of Standard Bars |
|
|
Minimum Bar Spacing |
|
|
Maximum Number of Bars |
|
|
Maximum Bar Spacing Capacity |
|
|
First & Last Deck Bar Opening |
|
|
Slope Angle |
|
|
